KBH-KS 12
| Part No. | 61080 |
| EAN | 4251269334856 |
| Package quantity | 10 |
| Mounting options | Adhesive mounting |
| Mounting location | universal |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 41 mm |
| Width | 27 mm |
| Height | 18 mm |
-
Products
»
Cable management
»
KBH holder
KBH holder
for hook-and-loop tapes

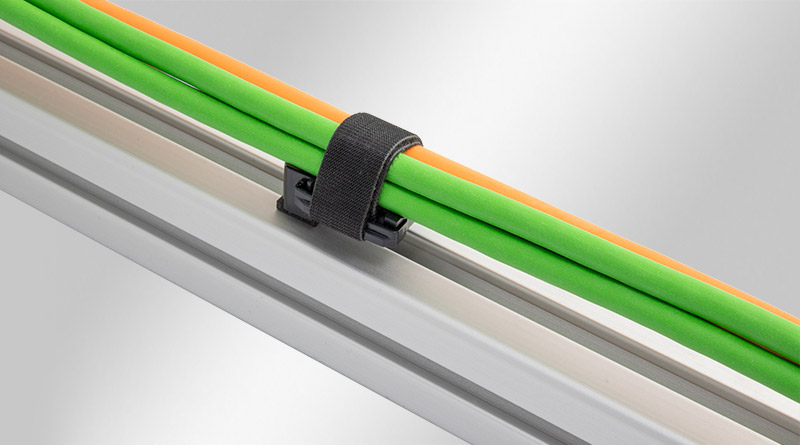

Hook-and-loop tape holders serve as holders for hook-and-loop cable ties, which can be mounted quickly and easily in a variety of ways. These holders can be used in combination with hook-and-loop cable ties KLKB and hook-and-loop tape KLB.

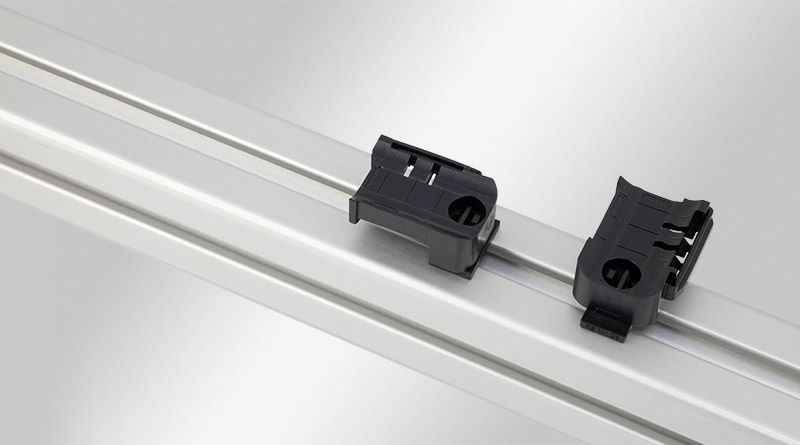

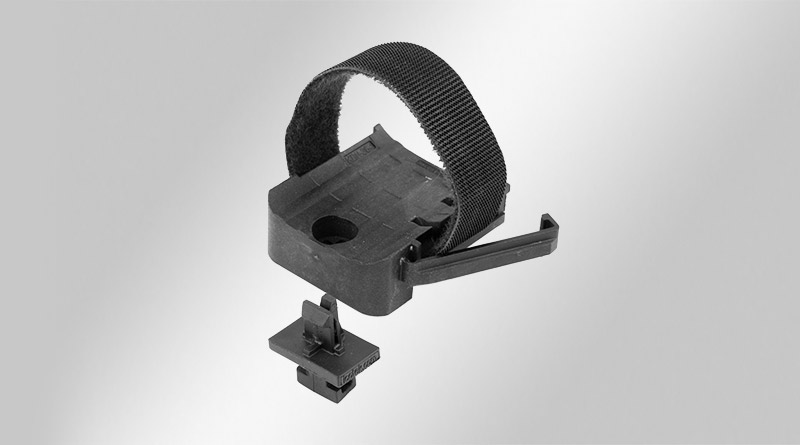

The KBH can be installed very quickly: the KBH-R with a 90° twist lock on profiles from Bosch Rexroth, MiniTec, item, MayTec, 80/20 and Rittal and the KBH-S with universal screw installation. There are also self-adhesive versions (KBH-KS) as well as versions for mounting on C-rails and top hat rails.
Assembly, disassembly, retrofitting and service work can be done easily at any time.
Specifications
| Operating temperature | -40 C° to 140 C° |
| Material | Polyamide |
| Properties | silicone free, halogen free |
Advantages & benefits
- Secure hold
- Versatile utilisation
- Suitable for hook-and-loop tape KLB and hook-and-loop fastener KLKB
- Available in three widths
- Four different guiding directions of the cable plate possible
- Subsequent removal or adding of cables is easily possible
- Very fast assembly
- Available for numerous aluminium profiles, construction profiles and mounting rails
- Can be combined with sliding blocks for strut profiles of numerous manufacturers
Product types & sizes
-

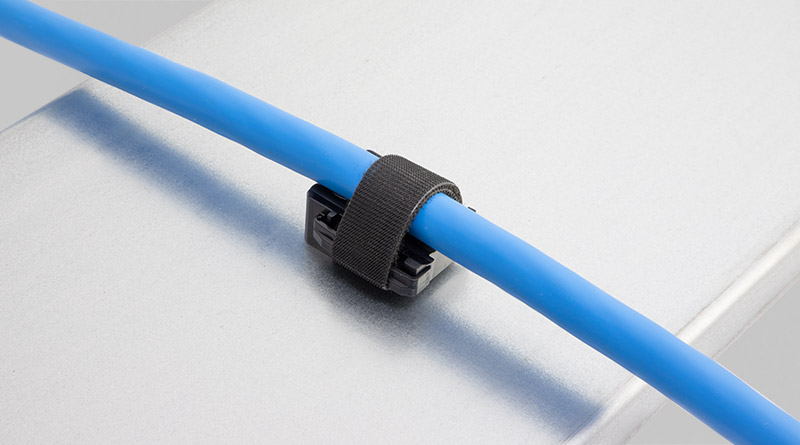

Universal (adhesive)
-

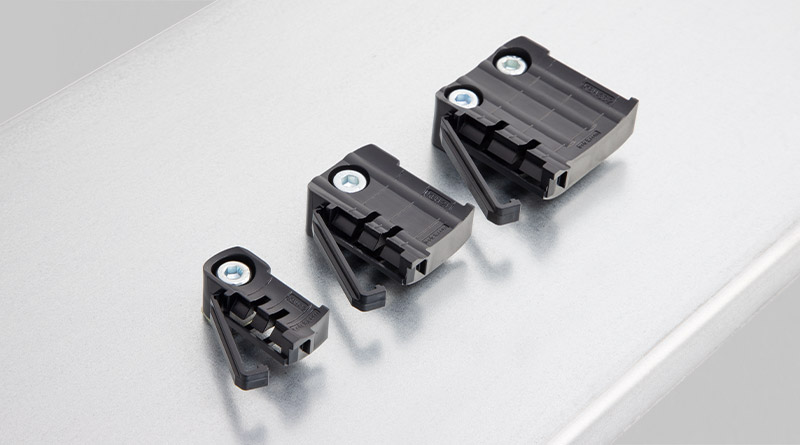

Universal (screw mount)
-
35 mm top hat DIN rail
-
C section rail (C30)
-

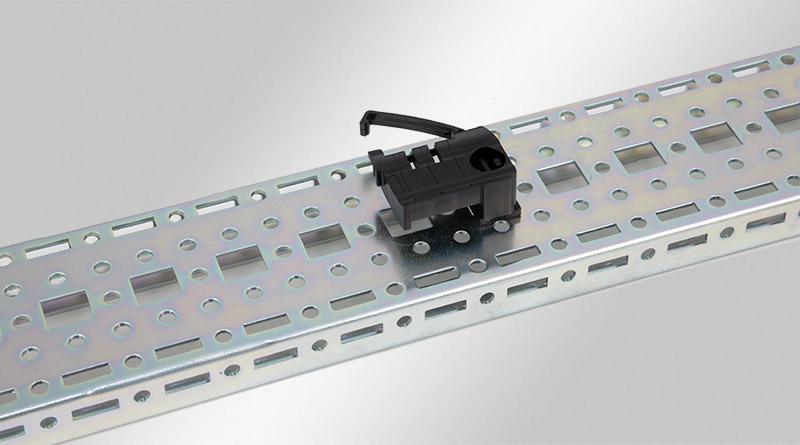

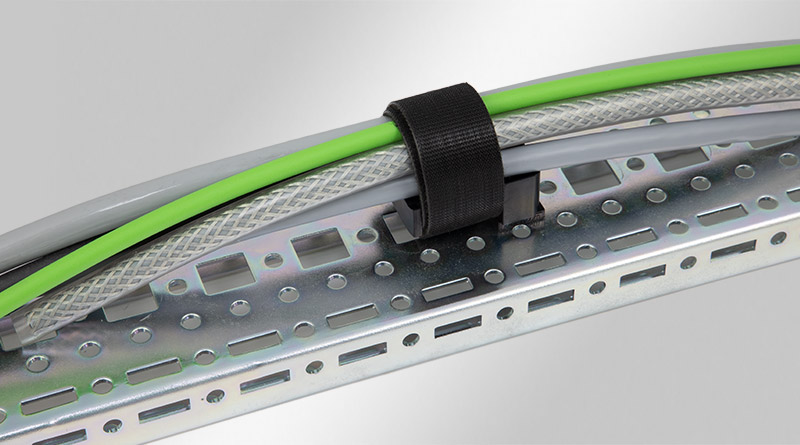

Rittal punched section
-
19" rack system
-
80/20 (25 x 25 mm)
-
80/20 (40 x 40 mm)
-
MiniTec (8 mm groove)
-
MiniTec / item (8 mm groove)
-
item (6 mm groove)
-
MayTec PG40 (8 mm groove)
-
Bosch Rexroth (8 mm groove)
-
Bosch Rexroth (10 mm groove)
KBH-KS 12
| Part No. | 61080.9005 |
| EAN | 4251269334894 |
| Package quantity | 50 |
| Mounting options | Adhesive mounting |
| Mounting location | universal |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 41 mm |
| Width | 27 mm |
| Height | 18 mm |
KBH-KS 24
| Part No. | 61081 |
| EAN | 4251269334863 |
| Package quantity | 10 |
| Mounting options | Adhesive mounting |
| Mounting location | universal |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 45.5 mm |
| Width | 27 mm |
| Height | 19 mm |
KBH-KS 24
| Part No. | 61081.9005 |
| EAN | 4251269334900 |
| Package quantity | 50 |
| Mounting options | Adhesive mounting |
| Mounting location | universal |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 45.5 mm |
| Width | 27 mm |
| Height | 19 mm |
KBH-KS 36
| Part No. | 61082 |
| EAN | 4251269334870 |
| Package quantity | 10 |
| Mounting options | Adhesive mounting |
| Mounting location | universal |
| Suitable for: | KLKB 300 x 17, KLB 15, KLB 20, KLB 25 |
| Length | 50.5 mm |
| Width | 27 mm |
| Height | 20 mm |
KBH-KS 36
| Part No. | 61082.9005 |
| EAN | 4251269334917 |
| Package quantity | 50 |
| Mounting options | Adhesive mounting |
| Mounting location | universal |
| Suitable for: | KLKB 300 x 17, KLB 15, KLB 20, KLB 25 |
| Length | 50.5 mm |
| Width | 27 mm |
| Height | 20 mm |
KBH-S 12 M5
| Part No. | 61030 |
| EAN | 4251269331350 |
| Package quantity | 10 |
| Mounting options | Screw type mounting |
| Mounting location | universal |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 34 mm |
| Width | 13.5 mm |
| Height | 13.5 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 5.3 mm |
KBH-S 12 M5
| Part No. | 61030.9005 |
| EAN | 4251269331596 |
| Package quantity | 50 |
| Mounting options | Screw type mounting |
| Mounting location | universal |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 34 mm |
| Width | 13.5 mm |
| Height | 13.5 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 5.3 mm |
KBH-S 24 M5
| Part No. | 61031 |
| EAN | 4251269331367 |
| Package quantity | 10 |
| Mounting options | Screw type mounting |
| Mounting location | universal |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 38 mm |
| Width | 24.5 mm |
| Height | 14.8 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 5.3 mm |
KBH-S 24 M5
| Part No. | 61031.9005 |
| EAN | 4251269331602 |
| Package quantity | 50 |
| Mounting options | Screw type mounting |
| Mounting location | universal |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 38 mm |
| Width | 24.5 mm |
| Height | 14.8 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 5.3 mm |
KBH-S 36-1 M5
| Part No. | 61032 |
| EAN | 4251269331374 |
| Package quantity | 10 |
| Mounting options | Screw type mounting |
| Mounting location | universal |
| Suitable for: | KLKB 300 x 17, KLB 15, KLB 20, KLB 25 |
| Length | 43 mm |
| Width | 36.5 mm |
| Height | 16 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 5.3 mm |
KBH-S 36-1 M5
| Part No. | 61032.9005 |
| EAN | 4251269331619 |
| Package quantity | 50 |
| Mounting options | Screw type mounting |
| Mounting location | universal |
| Suitable for: | KLKB 300 x 17, KLB 15, KLB 20, KLB 25 |
| Length | 43 mm |
| Width | 36.5 mm |
| Height | 16 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 5.3 mm |
KBH-S 36-2 M5
| Part No. | 61033 |
| EAN | 4251269331381 |
| Package quantity | 10 |
| Mounting options | Screw type mounting |
| Mounting location | universal |
| Suitable for: | KLKB 300 x 17, KLB 15, KLB 20, KLB 25 |
| Length | 43 mm |
| Width | 36.5 mm |
| Height | 16 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 5.3 mm |
KBH-S 36-2 M5
| Part No. | 61033.9005 |
| EAN | 4251269331626 |
| Package quantity | 50 |
| Mounting options | Screw type mounting |
| Mounting location | universal |
| Suitable for: | KLKB 300 x 17, KLB 15, KLB 20, KLB 25 |
| Length | 43 mm |
| Width | 36.5 mm |
| Height | 16 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 5.3 mm |
KBH-S
| Part No. | 61019 |
| EAN | 4251269315909 |
| Package quantity | 100 |
| Mounting options | Screw type mounting |
| Mounting location | 23×23 mm mounting rail, Rittal punched section (VX25 / AX) |
| Suitable for: | KLKB 200 × 7, KLKB 200 × 13, KLB 10 |
| No. of screw holes | 1 |
| Diam. of screw holes | 5.3 mm |
KBH-SB
| Part No. | 61002 |
| EAN | 4251269315824 |
| Package quantity | 100 |
| Mounting options | Screw type mounting |
| Mounting location | universal |
| Suitable for: | KLKB 200 × 7 |
| No. of screw holes | 1 |
| Diam. of screw holes | 5.3 mm |
KBH-RBA
| Part No. | 61003 |
| EAN | 4251269315831 |
| Package quantity | 100 |
| Mounting options | Screw type mounting |
| Mounting location | Drill hole 6 mm |
| Suitable for: | KLKB 200 × 7 |
| Diam. of screw holes | 6 mm |
available
KBH-RBB
| Part No. | 61004 |
| EAN | 4251269315848 |
| Package quantity | 100 |
| Mounting options | Screw type mounting |
| Mounting location | Drill hole 6.5 mm |
| Suitable for: | KLKB 200 × 7 |
| Diam. of screw holes | 6.5 mm |
available
KBH 12 SF M4
| Part No. | 61068 |
| EAN | 4251269333637 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | 35 mm top hat DIN rail |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 57.3 mm |
| Width | 14 mm |
| Height | 20.4 mm |
| Mounting height | 13.5 mm |
KBH 24 SF M4
| Part No. | 61069 |
| EAN | 4251269333644 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | 35 mm top hat DIN rail |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 62.3 mm |
| Width | 27.1 mm |
| Height | 21.7 mm |
| Mounting height | 14.8 mm |
KBH 12 SC M4
| Part No. | 61070 |
| EAN | 4251269333675 |
| Package quantity | 10 |
| Mounting options | Screw type mounting |
| Mounting location | C section rail |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 41 mm |
| Width | 22.5 mm |
| Height | 20 mm |
| Mounting height | 13.5 mm |
KBH-R 12 C
| Part No. | 61076 |
| EAN | 4251269334771 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | C section rail |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 38 mm |
| Width | 20 mm |
| Height | 21 mm |
| Mounting height | 16.5 mm |
KBH-R 12 C
| Part No. | 61076.9005 |
| EAN | 4251269334818 |
| Package quantity | 50 |
| Mounting options | Snap-in |
| Mounting location | C section rail |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 38 mm |
| Width | 20 mm |
| Height | 21 mm |
| Mounting height | 16.5 mm |
KBH 24 SC M4
| Part No. | 61071 |
| EAN | 4251269333682 |
| Package quantity | 10 |
| Mounting options | Screw type mounting |
| Mounting location | C section rail |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 46 mm |
| Width | 22.5 mm |
| Height | 21.3 mm |
| Mounting height | 14.8 mm |
KBH-R 24 C
| Part No. | 61077 |
| EAN | 4251269334788 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | C section rail |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 42.5 mm |
| Width | 20 mm |
| Height | 22.3 mm |
| Mounting height | 17.8 mm |
KBH-R 24 C
| Part No. | 61077.9005 |
| EAN | 4251269334825 |
| Package quantity | 50 |
| Mounting options | Snap-in |
| Mounting location | C section rail |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 42.5 mm |
| Width | 20 mm |
| Height | 22.3 mm |
| Mounting height | 17.8 mm |
KBH-R 36 C
| Part No. | 61078 |
| EAN | 4251269334795 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | C section rail |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 47.5 mm |
| Width | 20 mm |
| Height | 23.5 mm |
| Mounting height | 19 mm |
KBH-R 36 C
| Part No. | 61078.9005 |
| EAN | 4251269334832 |
| Package quantity | 50 |
| Mounting options | Snap-in |
| Mounting location | C section rail |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 47.5 mm |
| Width | 20 mm |
| Height | 23.5 mm |
| Mounting height | 19 mm |
KBH-R 12 Rittal MS
| Part No. | 61045 |
| EAN | 4251269331442 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | 23×23 mm mounting rail, Rittal punched section (VX25 / AX) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 34 mm |
| Width | 13.5 mm |
| Height | 20 mm |
| Mounting height | 16.5 mm |
KBH-R 12 Rittal MS
| Part No. | 61045.9005 |
| EAN | 4251269331633 |
| Package quantity | 50 |
| Mounting options | Snap-in |
| Mounting location | 23×23 mm mounting rail, Rittal punched section (VX25 / AX) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 34 mm |
| Width | 13.5 mm |
| Height | 20 mm |
| Mounting height | 16.5 mm |
KBH-R 24 Rittal MS
| Part No. | 61046 |
| EAN | 4251269331459 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | 23×23 mm mounting rail, Rittal punched section (VX25 / AX) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 38 mm |
| Width | 24.5 mm |
| Height | 21.5 mm |
| Mounting height | 18 mm |
KBH-R 24 Rittal MS
| Part No. | 61046.9005 |
| EAN | 4251269331640 |
| Package quantity | 50 |
| Mounting options | Snap-in |
| Mounting location | 23×23 mm mounting rail, Rittal punched section (VX25 / AX) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 38 mm |
| Width | 24.5 mm |
| Height | 21.5 mm |
| Mounting height | 18 mm |
KBH-R 36 Rittal MS
| Part No. | 61047 |
| EAN | 4251269331466 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | 23×23 mm mounting rail, Rittal punched section (VX25 / AX) |
| Suitable for: | KLKB 300 x 17, KLB 15, KLB 20, KLB 25 |
| Length | 43 mm |
| Width | 36.5 mm |
| Height | 20 mm |
| Mounting height | 19 mm |
KBH-R 36 Rittal MS
| Part No. | 61047.9005 |
| EAN | 4251269331657 |
| Package quantity | 50 |
| Mounting options | Snap-in |
| Mounting location | 23×23 mm mounting rail, Rittal punched section (VX25 / AX) |
| Suitable for: | KLKB 300 x 17, KLB 15, KLB 20, KLB 25 |
| Length | 43 mm |
| Width | 36.5 mm |
| Height | 20 mm |
| Mounting height | 19 mm |
KBH-R
| Part No. | 61018 |
| EAN | 4251269315893 |
| Package quantity | 100 |
| Mounting options | Snap-in |
| Mounting location | 23×23 mm mounting rail, Rittal punched section (VX25 / AX) |
| Suitable for: | KLKB 200 × 7, KLKB 200 × 13, KLB 10 |
KBH-R 12 R G9.5
| Part No. | 61073 |
| EAN | 4251269333750 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | 19" rack system |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 34 mm |
| Width | 13.5 mm |
| Height | 24.5 mm |
| Mounting height | 16.5 mm |
KBH-R 12 R G9.5
| Part No. | 61073.9005 |
| EAN | 4251269333781 |
| Package quantity | 50 |
| Mounting options | Snap-in |
| Mounting location | 19" rack system |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 34 mm |
| Width | 13.5 mm |
| Height | 24.5 mm |
| Mounting height | 16.5 mm |
KBH-R 24 R G9.5
| Part No. | 61074 |
| EAN | 4251269333767 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | 19" rack system |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 38 mm |
| Width | 24.5 mm |
| Height | 26 mm |
| Mounting height | 18 mm |
KBH-R 24 R G9.5
| Part No. | 61074.9005 |
| EAN | 4251269333798 |
| Package quantity | 50 |
| Mounting options | Snap-in |
| Mounting location | 19" rack system |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 38 mm |
| Width | 24.5 mm |
| Height | 26 mm |
| Mounting height | 18 mm |
KBH-R 12 80/20 (25 x 25 mm)
| Part No. | 61084 |
| EAN | 4251269334931 |
| Package quantity | 10 |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 34 mm |
| Width | 13.5 mm |
| Height | 19 mm |
| Mounting height | 16.5 mm |
KBH-R 12 80/20 (25 x 25 mm)
| Part No. | 61084.9005 |
| EAN | 4251269334979 |
| Package quantity | 50 |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 34 mm |
| Width | 13.5 mm |
| Height | 19 mm |
| Mounting height | 16.5 mm |
KBH-R 24 80/20 (25 x 25 mm)
| Part No. | 61085 |
| EAN | 4251269334948 |
| Package quantity | 10 |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 38 mm |
| Width | 24.5 mm |
| Height | 23 mm |
| Mounting height | 18 mm |
KBH-R 24 80/20 (25 x 25 mm)
| Part No. | 61085.9005 |
| EAN | 4251269334986 |
| Package quantity | 50 |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 38 mm |
| Width | 24.5 mm |
| Height | 23 mm |
| Mounting height | 18 mm |
KBH-R 36 80/20 (25 x 25 mm)
| Part No. | 61086 |
| EAN | 4251269334955 |
| Package quantity | 10 |
| Suitable for: | KLKB 300 x 17, KLB 15, KLB 20, KLB 25 |
| Length | 43 mm |
| Width | 36.5 mm |
| Height | 24 mm |
| Mounting height | 19 mm |
KBH-R 36 80/20 (25 x 25 mm)
| Part No. | 61086.9005 |
| EAN | 4251269334993 |
| Package quantity | 50 |
| Suitable for: | KLKB 300 x 17, KLB 15, KLB 20, KLB 25 |
| Length | 43 mm |
| Width | 36.5 mm |
| Height | 24 mm |
| Mounting height | 19 mm |
KBH-R 12 80/20 (40 x 40 mm)
| Part No. | 61088 |
| EAN | 4251269335013 |
| Package quantity | 10 |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 34 mm |
| Width | 13.5 mm |
| Height | 21 mm |
| Mounting height | 16.5 mm |
KBH-R 12 80/20 (40 x 40 mm)
| Part No. | 61088.9005 |
| EAN | 4251269335051 |
| Package quantity | 50 |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 34 mm |
| Width | 13.5 mm |
| Height | 21 mm |
| Mounting height | 16.5 mm |
KBH-R 24 80/20 (40 x 40 mm)
| Part No. | 61089 |
| EAN | 4251269335020 |
| Package quantity | 10 |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 38 mm |
| Width | 24.5 mm |
| Height | 25 mm |
| Mounting height | 18 mm |
KBH-R 24 80/20 (40 x 40 mm)
| Part No. | 61089.9005 |
| EAN | 4251269335068 |
| Package quantity | 50 |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 38 mm |
| Width | 24.5 mm |
| Height | 25 mm |
| Mounting height | 18 mm |
KBH-R 36 80/20 (40 x 40 mm)
| Part No. | 61090 |
| EAN | 4251269335037 |
| Package quantity | 10 |
| Suitable for: | KLKB 300 x 17, KLB 15, KLB 20, KLB 25 |
| Length | 43 mm |
| Width | 36.5 mm |
| Height | 26 mm |
| Mounting height | 19 mm |
KBH-R 36 80/20 (40 x 40 mm)
| Part No. | 61090.9005 |
| EAN | 4251269335075 |
| Package quantity | 50 |
| Suitable for: | KLKB 300 x 17, KLB 15, KLB 20, KLB 25 |
| Length | 43 mm |
| Width | 36.5 mm |
| Height | 26 mm |
| Mounting height | 19 mm |
KBH-R 12 MiniTec G8
| Part No. | 61048 |
| EAN | 4251269331473 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | MiniTec Profile (8 mm groove) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 34 mm |
| Width | 13.5 mm |
| Height | 23 mm |
| Mounting height | 16.5 mm |
KBH-R 12 MiniTec G8
| Part No. | 61048.9005 |
| EAN | 4251269331664 |
| Package quantity | 50 |
| Mounting options | Snap-in |
| Mounting location | MiniTec Profile (8 mm groove) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 34 mm |
| Width | 13.5 mm |
| Height | 23 mm |
| Mounting height | 16.5 mm |
KBH-R 24 MiniTec G8
| Part No. | 61049 |
| EAN | 4251269331480 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | MiniTec Profile (8 mm groove) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 38 mm |
| Width | 24.5 mm |
| Height | 24 mm |
| Mounting height | 18 mm |
KBH-R 24 MiniTec G8
| Part No. | 61049.9005 |
| EAN | 4251269331671 |
| Package quantity | 50 |
| Mounting options | Snap-in |
| Mounting location | MiniTec Profile (8 mm groove) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 38 mm |
| Width | 24.5 mm |
| Height | 24 mm |
| Mounting height | 18 mm |
KBH-R 36 MiniTec G8
| Part No. | 61050 |
| EAN | 4251269331497 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | MiniTec Profile (8 mm groove) |
| Suitable for: | KLKB 300 x 17, KLB 15, KLB 20, KLB 25 |
| Length | 43 mm |
| Width | 36.5 mm |
| Height | 23 mm |
| Mounting height | 19 mm |
KBH-R 36 MiniTec G8
| Part No. | 61050.9005 |
| EAN | 4251269331688 |
| Package quantity | 50 |
| Mounting options | Snap-in |
| Mounting location | MiniTec Profile (8 mm groove) |
| Suitable for: | KLKB 300 x 17, KLB 15, KLB 20, KLB 25 |
| Length | 43 mm |
| Width | 36.5 mm |
| Height | 23 mm |
| Mounting height | 19 mm |
KBH-R 12 MiniTec / item G8
| Part No. | 61051 |
| EAN | 4251269331503 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | item Profile (8 mm groove), MiniTec Profile (8 mm groove) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 34 mm |
| Width | 13.5 mm |
| Height | 24.5 mm |
| Mounting height | 16.5 mm |
KBH-R 12 MiniTec / item G8
| Part No. | 61051.9005 |
| EAN | 4251269331695 |
| Package quantity | 50 |
| Mounting options | Snap-in |
| Mounting location | item Profile (8 mm groove), MiniTec Profile (8 mm groove) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 34 mm |
| Width | 13.5 mm |
| Height | 24.5 mm |
| Mounting height | 16.5 mm |
KBH-R 24 MiniTec / item G8
| Part No. | 61052 |
| EAN | 4251269331510 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | item Profile (8 mm groove), MiniTec Profile (8 mm groove) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 38 mm |
| Width | 24.5 mm |
| Height | 26 mm |
| Mounting height | 18 mm |
KBH-R 24 MiniTec / item G8
| Part No. | 61052.9005 |
| EAN | 4251269331701 |
| Package quantity | 50 |
| Mounting options | Snap-in |
| Mounting location | item Profile (8 mm groove), MiniTec Profile (8 mm groove) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 38 mm |
| Width | 24.5 mm |
| Height | 26 mm |
| Mounting height | 18 mm |
KBH-R 36 MiniTec / item G8
| Part No. | 61053 |
| EAN | 4251269331527 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | item Profile (8 mm groove), MiniTec Profile (8 mm groove) |
| Suitable for: | KLKB 300 x 17, KLB 15, KLB 20, KLB 25 |
| Length | 43 mm |
| Width | 36.5 mm |
| Height | 24.5 mm |
| Mounting height | 19 mm |
KBH-R 36 MiniTec / item G8
| Part No. | 61053.9005 |
| EAN | 4251269331718 |
| Package quantity | 50 |
| Mounting options | Snap-in |
| Mounting location | item Profile (8 mm groove), MiniTec Profile (8 mm groove) |
| Suitable for: | KLKB 300 x 17, KLB 15, KLB 20, KLB 25 |
| Length | 43 mm |
| Width | 36.5 mm |
| Height | 24.5 mm |
| Mounting height | 19 mm |
KBH-R 12 item G6
| Part No. | 61061 |
| EAN | 4251269333484 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | item Profile (6 mm groove) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 34 mm |
| Width | 13.5 mm |
| Height | 24.5 mm |
| Mounting height | 16.5 mm |
KBH-R 12 item G6
| Part No. | 61061.9005 |
| EAN | 4251269333521 |
| Package quantity | 50 |
| Mounting options | Snap-in |
| Mounting location | item Profile (6 mm groove) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 34 mm |
| Width | 13.5 mm |
| Height | 24.5 mm |
| Mounting height | 16.5 mm |
KBH-R 24 item G6
| Part No. | 61062 |
| EAN | 4251269333491 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | item Profile (6 mm groove) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 38 mm |
| Width | 24.5 mm |
| Height | 26 mm |
| Mounting height | 18 mm |
KBH-R 24 item G6
| Part No. | 61062.9005 |
| EAN | 4251269333538 |
| Package quantity | 50 |
| Mounting options | Snap-in |
| Mounting location | item Profile (6 mm groove) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 38 mm |
| Width | 24.5 mm |
| Height | 26 mm |
| Mounting height | 18 mm |
KBH-R 36 item G6
| Part No. | 61063 |
| EAN | 4251269333507 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | item Profile (6 mm groove) |
| Suitable for: | KLKB 300 x 17, KLB 15, KLB 20, KLB 25 |
| Length | 43 mm |
| Width | 36.5 mm |
| Height | 24.5 mm |
| Mounting height | 19 mm |
KBH-R 36 item G6
| Part No. | 61063.9005 |
| EAN | 4251269333545 |
| Package quantity | 50 |
| Mounting options | Snap-in |
| Mounting location | item Profile (6 mm groove) |
| Suitable for: | KLKB 300 x 17, KLB 15, KLB 20, KLB 25 |
| Length | 43 mm |
| Width | 36.5 mm |
| Height | 24.5 mm |
| Mounting height | 19 mm |
KBH-R 12 MayTec PG40 G8.3
| Part No. | 61065 |
| EAN | 4251269333569 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | MayTec PG40 profile (8 mm groove) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 34 mm |
| Width | 13.5 mm |
| Height | 24.5 mm |
| Mounting height | 16.5 mm |
KBH-R 12 MayTec PG40 G8.3
| Part No. | 61065.9005 |
| EAN | 4251269333606 |
| Package quantity | 50 |
| Mounting options | Snap-in |
| Mounting location | MayTec PG40 profile (8 mm groove) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 34 mm |
| Width | 13.5 mm |
| Height | 24.5 mm |
| Mounting height | 16.5 mm |
KBH-R 24 MayTec PG40 G8.3
| Part No. | 61066 |
| EAN | 4251269333576 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | MayTec PG40 profile (8 mm groove) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 38 mm |
| Width | 24.5 mm |
| Height | 26 mm |
| Mounting height | 18 mm |
KBH-R 24 MayTec PG40 G8.3
| Part No. | 61066.9005 |
| EAN | 4251269333613 |
| Package quantity | 50 |
| Mounting options | Snap-in |
| Mounting location | MayTec PG40 profile (8 mm groove) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 38 mm |
| Width | 24.5 mm |
| Height | 26 mm |
| Mounting height | 18 mm |
KBH-R 36 MayTec PG40 G8.3
| Part No. | 61067 |
| EAN | 4251269333583 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | MayTec PG40 profile (8 mm groove) |
| Suitable for: | KLKB 300 x 17, KLB 15, KLB 20, KLB 25 |
| Length | 43 mm |
| Width | 36.5 mm |
| Height | 24.5 mm |
| Mounting height | 19 mm |
KBH-R 36 MayTec PG40 G8.3
| Part No. | 61067.9005 |
| EAN | 4251269333620 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | MayTec PG40 profile (8 mm groove) |
| Suitable for: | KLKB 300 x 17, KLB 15, KLB 20, KLB 25 |
| Length | 43 mm |
| Width | 36.5 mm |
| Height | 24.5 mm |
| Mounting height | 19 mm |
KBH-R 12 Bosch Rexroth G8
| Part No. | 61054 |
| EAN | 4251269331534 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | Bosch Rexroth Profile (8 mm groove) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 34 mm |
| Width | 13.5 mm |
| Height | 22.5 mm |
| Mounting height | 16.5 mm |
KBH-R 12 Bosch Rexroth G8
| Part No. | 61054.9005 |
| EAN | 4251269331725 |
| Package quantity | 50 |
| Mounting options | Snap-in |
| Mounting location | Bosch Rexroth Profile (8 mm groove) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 34 mm |
| Width | 13.5 mm |
| Height | 22.5 mm |
| Mounting height | 16.5 mm |
KBH-R 24 Bosch Rexroth G8
| Part No. | 61055 |
| EAN | 4251269331541 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | Bosch Rexroth Profile (8 mm groove) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 38 mm |
| Width | 24.5 mm |
| Height | 22.5 mm |
| Mounting height | 18 mm |
KBH-R 24 Bosch Rexroth G8
| Part No. | 61055.9005 |
| EAN | 4251269331732 |
| Package quantity | 50 |
| Mounting options | Snap-in |
| Mounting location | Bosch Rexroth Profile (8 mm groove) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 38 mm |
| Width | 24.5 mm |
| Height | 22.5 mm |
| Mounting height | 18 mm |
KBH-R 36-1 Bosch Rexroth G8
| Part No. | 61056 |
| EAN | 4251269331558 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | Bosch Rexroth Profile (8 mm groove) |
| Suitable for: | KLKB 300 x 17, KLB 15, KLB 20, KLB 25 |
| Length | 43 mm |
| Width | 36.5 mm |
| Height | 22.5 mm |
| Mounting height | 19 mm |
KBH-R 36 Bosch Rexroth G8
| Part No. | 61056.9005 |
| EAN | 4251269331749 |
| Package quantity | 50 |
| Mounting options | Snap-in |
| Mounting location | Bosch Rexroth Profile (8 mm groove) |
| Suitable for: | KLKB 300 x 17, KLB 15, KLB 20, KLB 25 |
| Length | 43 mm |
| Width | 36.5 mm |
| Height | 22.5 mm |
| Mounting height | 19 mm |
KBH-R 12 Bosch Rexroth G10
| Part No. | 61057 |
| EAN | 4251269331565 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | Bosch Rexroth Profile (10 mm groove) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 34 mm |
| Width | 13.5 mm |
| Height | 26 mm |
| Mounting height | 16.5 mm |
KBH-R 12 Bosch Rexroth G10
| Part No. | 61057.9005 |
| EAN | 4251269331756 |
| Package quantity | 50 |
| Mounting options | Snap-in |
| Mounting location | Bosch Rexroth Profile (10 mm groove) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15 |
| Length | 34 mm |
| Width | 13.5 mm |
| Height | 26 mm |
| Mounting height | 16.5 mm |
KBH-R 24 Bosch Rexroth G10
| Part No. | 61058 |
| EAN | 4251269331572 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | Bosch Rexroth Profile (10 mm groove) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 38 mm |
| Width | 24.5 mm |
| Height | 26 mm |
| Mounting height | 18 mm |
KBH-R 24 Bosch Rexroth G10
| Part No. | 61058.9005 |
| EAN | 4251269331763 |
| Package quantity | 50 |
| Mounting options | Snap-in |
| Mounting location | Bosch Rexroth Profile (10 mm groove) |
| Suitable for: | KLKB 200 x 13, KLB 10, KLB 15, KLB 20 |
| Length | 38 mm |
| Width | 24.5 mm |
| Height | 26 mm |
| Mounting height | 18 mm |
KBH-R 36 Bosch Rexroth G10
| Part No. | 61059 |
| EAN | 4251269331589 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| Mounting location | Bosch Rexroth Profile (10 mm groove) |
| Suitable for: | KLKB 300 x 17, KLB 15, KLB 20, KLB 25 |
| Length | 43 mm |
| Width | 36.5 mm |
| Height | 26 mm |
| Mounting height | 19 mm |
KBH-R 36 Bosch Rexroth G10
| Part No. | 61059.9005 |
| EAN | 4251269331770 |
| Package quantity | 50 |
| Mounting options | Snap-in |
| Mounting location | Bosch Rexroth Profile (10 mm groove) |
| Suitable for: | KLKB 300 x 17, KLB 15, KLB 20, KLB 25 |
| Length | 43 mm |
| Width | 36.5 mm |
| Height | 26 mm |
| Mounting height | 19 mm |
You haven't found anything suitable yet?
Try the ProductFinderAssembly video
Convince yourself of the simple and time-saving assembly of our products.
Watch the assembly video!
Suitable for:
KLKB-KLB
Hook-and-loop cable ties
Reusable hook-and-loop cable ties for bundling and fixing of cables or complete cable harnesses, conduits and hoses.
You might also be interested in the following products
KBH ServiceBox
Service boxes for hook-and-loop tape holders
Assortment of hook-and-loop tape holders in various types and sizes. Perfect for installations.
KB-HDD | KBH-HDD
Detectable cable ties & holders
Detectable cable ties and holders for cable ties particularly suitable for pharmaceutical applications and for the food industry.
MSMC
Modular stackable cable clamp / cable cleat
The modular stackable cable clamp MSMC is used for easy, quick and secure fastening of cables, pipes and other cylindrical components.
ZL
Strain relief plates for screw mounting
Plates for secure strain relief and cable routing. Mounting via screws.
KZL
Strain relief plates for DIN rails
Strain relief and cable routing plates for snap-on assembly on 35 mm top hat DIN rails and C section rails C30.
SF|ZL
Strain relief plates for 35 mm top hat DIN rails
Strain relief plate for mounting via snap feet on 35 mm top hat DIN rails.
CCL
Cable clamps for C section rails C30
The cable clamps are characterised by a high clamping range and great flexibility. Ideally suited for strain relief on the C section rail C30.
Shield clamps, pluggable
EMC cable shield clamps, pluggable
EMC cable clamps with mounting claws for plugging onto metal sheet edges.
CONFiX™ WST
Split corrugated conduits for cables with connectors
Split cable conduit for routing of pre-terminated cables.
EMC-KEL-U
Split EMC cable entry frame
Conductive EMC cable entry frames for cut-outs of heavy industrial connectors. Available as single or double row version.
BPK
Blank plates, plastic, for screw assembly, IP66 / UL Type 12
Blank plates to close and seal unused cut-outs in enclosure or machine walls.
Punch Set 16-63
Punch set M16 - M63
Set of round knockout punches for cut-outs M16 - M63. Suitable for cable glands and round cable entry plates.
KEL-DPU-BS
Heavy duty cable entry plate, IP66/IP68 / UL Type 12/4X*
Heavy duty cable entry plate with IFPS fire penetration seals acc. to EN 45545-3.
