Order free icotek product samples now!

Convince yourself of the high quality of our products



Select the product group and the desired standard sample kit and order it free of charge:

icotek Starter Kit »
Split cable entry frames & adapter grommets »
Split cable glands »
Multi-membrane cable entry plates »
Brush plates & brush strips »
Strain relief & cable management »
EMC cable shield clamps »
CONFiX™ cable conduit system »

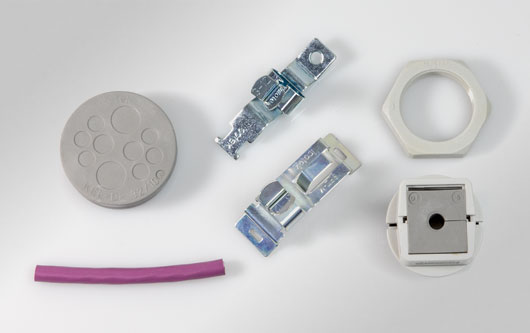

icotek Starter Kit


Get to know our product range - with the icotek starter kit!

Content:
1 × round cable entry plate KEL-DP
1 × split cable gland QVT
1 × EMC cable shield clamp MSKL for screw type mounting
1 × EMC cable shield clamp MSKL for 35 mm DIN rail



Product samples: Split cable entry frames & adapter grommets


Using the patented grommet based icotek cable entry system, a large number of pre-terminated cables (up to 65 mm in diameter) and cables without connectors (up to 75 mm in diameter) can be quickly routed into enclosures, control panels or machines and be sealed with up to IP66 / UL type 4X rated ingress protection (certified according to EN 60529 / UL50-E). In addition, the cable entry frames serve as strain reliefs on the cable (acc. to EN 62444). The split cable entry system enables quick and easy assembly which is great for retrofits and maintenance. Find out more »

Order a free sample »

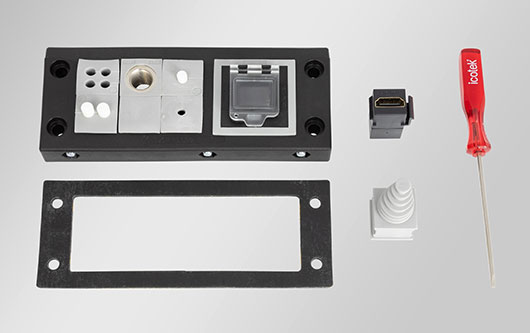

KEL-U 24

Protection: IP54 / UL Type 12
Mounting type: screw mounting
Cut-out size: 112 × 36 mm

Order a free sample »

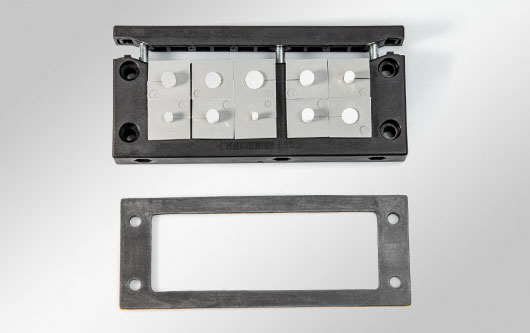

KEL-ER-E3

Protection: IP66 / UL Type 4X
Mounting type: screw mounting
Cut-out size: 65 × 24 mm

Order a free sample »


KEL-QUICK 24

ProtectionIP54
Mounting type: snap-in / screw mounting
Cut-out size: 112 × 36 mm

Order a free sample »


IMAS-CONNECT

Adapter grommet AT-M20 × 1.5 (IP65)
Adapter grommet AT-K-M12 × 1.5 (IP66) + Adapter M16 × 1.5



Product samples: Split cable glands


By using split cable glands by icotek pre-terminated cables with diameters from 1 to 35 mm can be quickly routed into enclosures, control panels or machines and be sealed with up to IP66 / IP68 / UL type 4X rated ingress protection (certified according to EN 60529 / UL50-E). In addition, the cable glands serve as strain reliefs on the cable. The split cable glands enable quick and easy assembly which is great for retrofits and maintenance. Find out more »

Order a free sample »

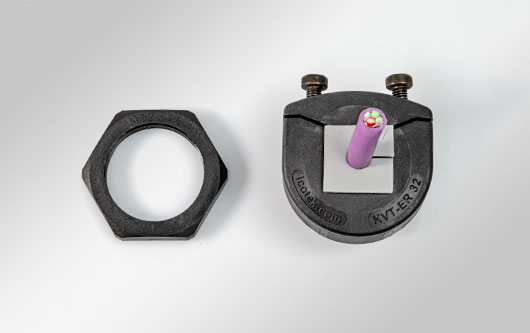

KVT-ER 32

Protection: IP66 / IP68 / UL Type 4X
Mounting type:  locknut
Cut-out size: M32

Order a free sample »

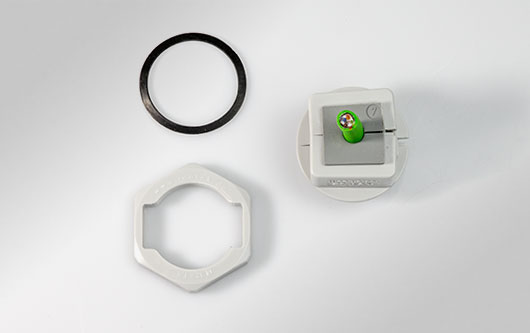

KVT 32

Protection: IP54 / UL Type 12
Mounting type: locknut
Cut-out size: M32

Order a free sample »

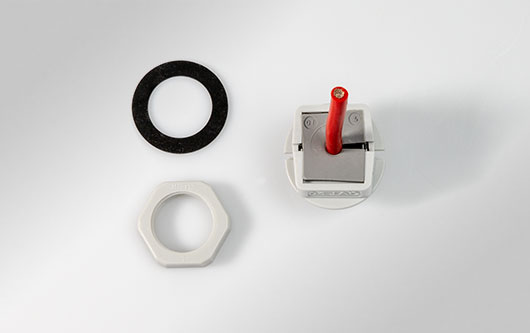

QVT 20

Protection: IP54
Mounting type: locknut
Cut-out size: M20



Product samples: Multi-membrane cable entry plates



With the membrane based cable entry plates cables, pneumatic and hydraulic hoses or optical fibres can be quickly and space-savingly routed into control cabinets, panels or machines and be sealed with certified protection class up to IP68 (acc. to EN 60529) and UL type 4X (acc. to UL50 E). icotek cable entry plates are cost, space and time saving alternatives to traditional cable glands. Find out more »

Order a free sample »


KEL-DPU 24

Protection: IP66 / IP68 / UL Type 4X
Mounting type: snap-in / screw mounting
Cut-out size: 112 × 36 mm

Order a free sample »

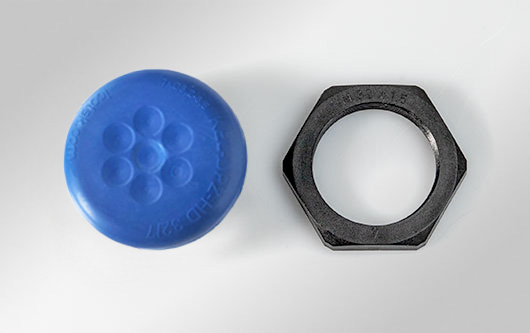

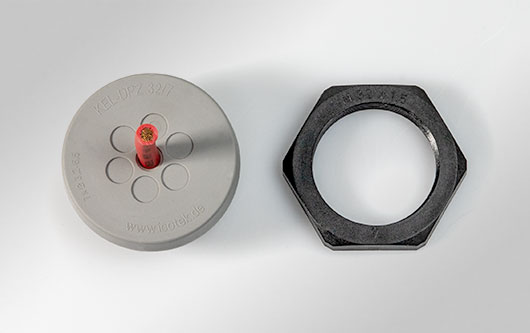

KEL-DPZ 32

Protection: IP66 / IP68 / UL Type 4X
Mounting type: locknut
Cut-out size: M32

Order a free sample »

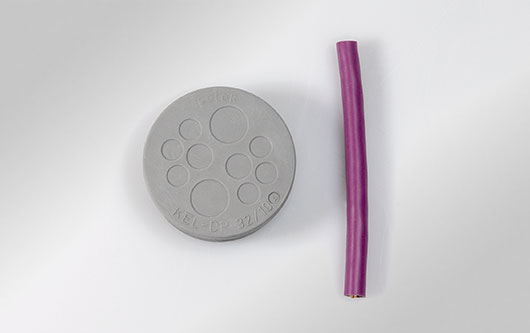

KEL-DP 32

Protection: IP65 / UL Type 12
Mounting type: snap-in
Cut-out size: M32

Order a free sample »

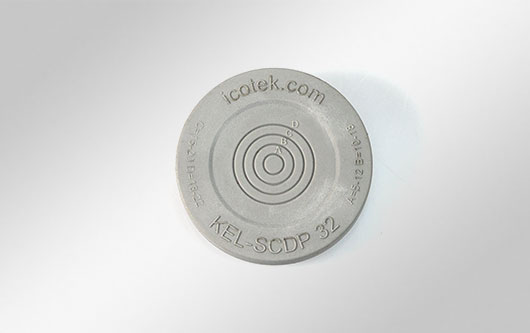

KEL-SCDP 32

Protection: IP65
Mounting type: snap-in
Cut-out size: M32



Product samples: Brush plates & brush strips



icotek offers cable pass-through solutions with brush seal like brush plates and brush strips that are perfectly suitable for applications where no high sealing rate is required. The icotek brush seal solutions are meant for dust and dirt-proof cable pass-through of lines with or without preassembled connectors. Find out more »

Order a free sample »


KEL-BES-S 24

Mounting type: screw mounting / riveting
Cut-out size: 112 × 36 mm

Order a free sample »


KEL-BES-S 50

Mounting type: snap-in / locknut
Cut-out size: M50

Order a free sample »


KDR-BES-U

Mounting type: clamping
Cut-out size: custom



Product samples: Strain relief & cable management



By using universal icotek strain relief plates with cord grip function the user can quickly assemble, organise and strain relieve cables according to EN 62444. Find out more »

Order a free sample »

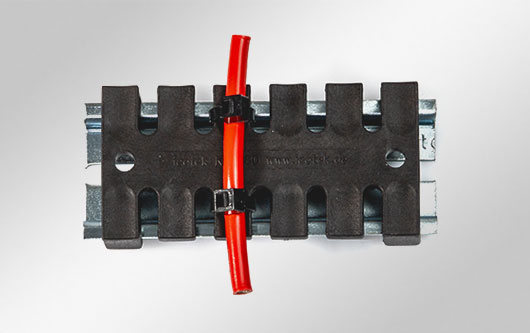

KZL 80

Mounting type: snap-in
Mounting location: 35 mm DIN rail /
30 mm C-rail

Order a free sample »


KLKB | KBH

Mounting type: snap-in / screw mounting
Mounting location: 23 × 23 mm mounting rail / universal

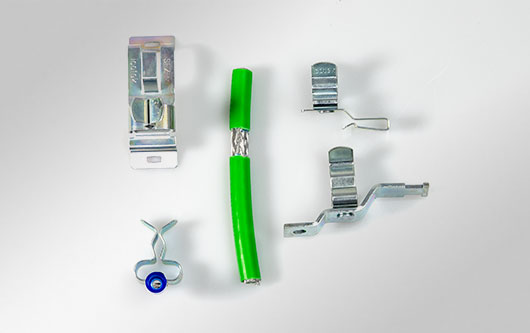

Product samples: EMC cable shield clamps



For process measurement and control equipment an increasingly higher level of protection against failure is required. EMI shielding and earthing is very important. The area where the cable shield is connected to the cabinet earth is a critical point. It is very important that the connection has a low resistance. All icotek EMC cable clamps for shielding cable diameters from 1.5 to 75 mm have been tested utilising various frequency ranges and in all tests there was minimal leakage resistance. Find out more »

Order a free sample »


EMC Set

Mounting type: snap-in / screw mounting
Mounting location: 35 mm DIN rail /
10 × 3 mm bus bar / PE conductor / universal

Order a free sample »


RLFZ

Mounting type: screw mounting
Mounting location: universal



Product samples: CONFiX™ cable conduit system



With CONFiX™ conduit routing components by icotek cables can be easily routed inside parallel corrugated cable conduits. They are perfect for machines, control panels or switch cabinets to ensure a maximum cable protection. Find out more »

Order a free sample »

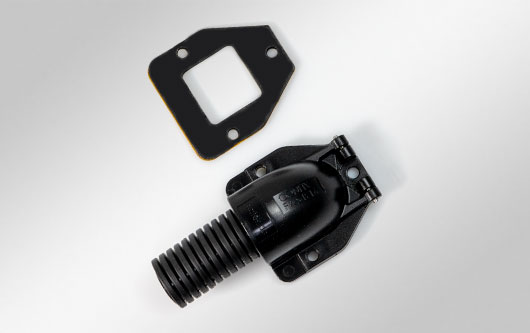

CONFiX™ FWS

Protection: IP54
Mounting type: screw mounting

Order a free sample »


CONFiX™ WS
