Cable grommets

for cable entry systems

icotek's cable grommets are specifically designed for split cable entry frames and cable glands, enabling secure, flexible, and space-saving cable routing in industrial applications. The portfolio includes various cable grommets for pre-assembled and unassembled cables. Find out more »

icotek cable grommets at a glance

Filter products:

Split cable grommets, grey, IP66/IP68 / UL Type 12/4X*

Split cable grommets for diameters of 1 to 17 and 13 - 35 mm. Suitable for KEL cable entry frames and KVT cable glands.

» KT grey

Split cable grommets, black, IP66/IP68

Split cable grommets for diameters of 1 to 17 and 13 - 35 mm. Suitable for KEL cable entry frames and KVT cable glands. Higher chemical resistance.

» KT black

IMAS-CONNECT™ Adapter grommets

Adapter grommets with inner threads and for mounting of Keystone and PushPull modules.

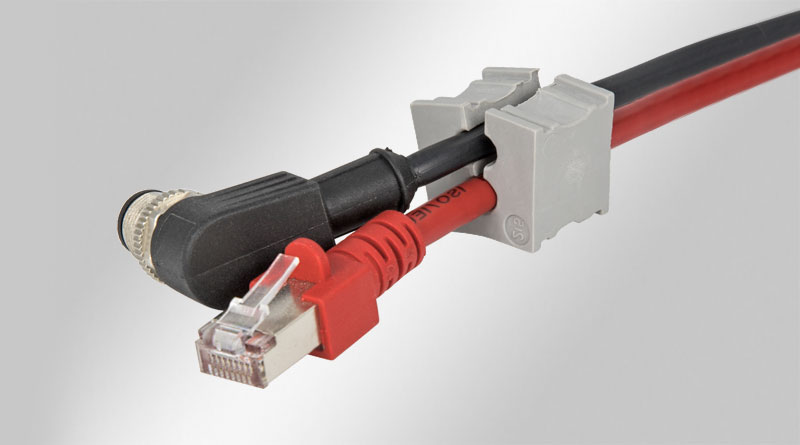

Split multi / special cable grommets, grey, IP54 / UL Type 12

Split cable grommets for diameters of 1 to 8 mm as well as for special cables. Suitable for KEL cable entry frames and KVT cable glands.

» KT multi grey

Split multi / special cable grommets, black, IP54

Split cable grommets for diameters of 1 to 8 mm as well as for special cables. Suitable for KEL cable entry frames and KVT cable glands. Higher chemical resistance.

» KT multi black

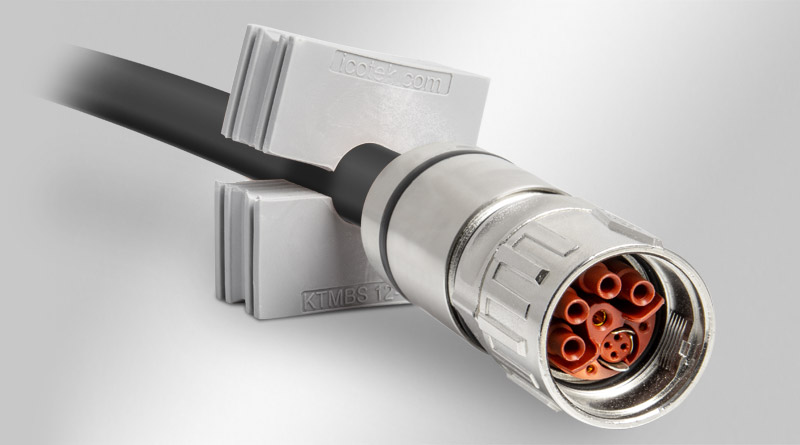

Split multi-range cable grommets, grey, IP54 / UL Type 12

Split cable grommets for diameters 4 - 29 mm. Suitable for KEL cable entry frames and KVT cable glands.

» KTMBS grey

Split multi-range cable grommets, black, IP54

Split cable grommets for diameters 4 - 29 mm. Suitable for KEL cable entry frames and KVT cable glands.

» KTMBS black

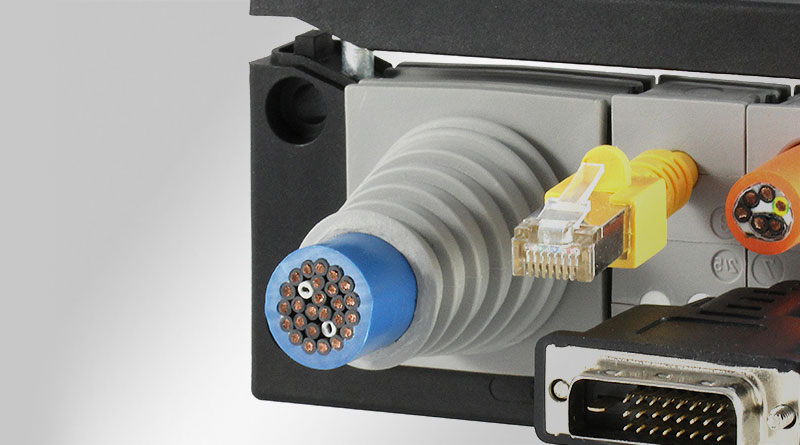

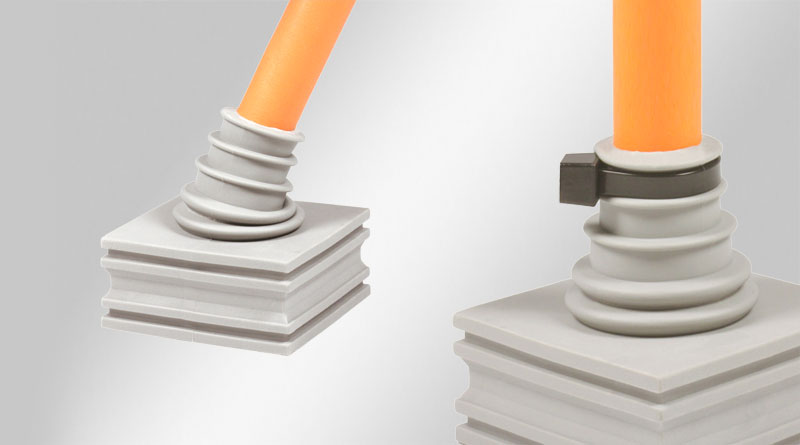

Multi-range cable grommets in pyramid shape, grey, IP54 / UL Type 12

Flexible pyramid shaped cable grommet with multi range for various cable diameters 3 - 26 mm. Enhanced strain relief possible via cable ties.

» KT-DPF grey

Multi-range cable grommets in pyramid shape, black, IP54

Flexible pyramid shaped cable grommet with multi range for various cable diameters 3 - 26 mm. Enhanced strain relief possible via cable ties. Higher chemical resistance.

» KT-DPF black

Flexible multi-range cable grommets, IP54 / UL Type 12

Flexible multi range cable grommets with peelable membrane rings for various cable diameters 4 - 28 mm.

» KT-SC

Multi-range cable grommets, IP54 / UL Type 12

Flexible multi range cable grommets for various cable diameters 2.5 - 33 mm.

» KTMB

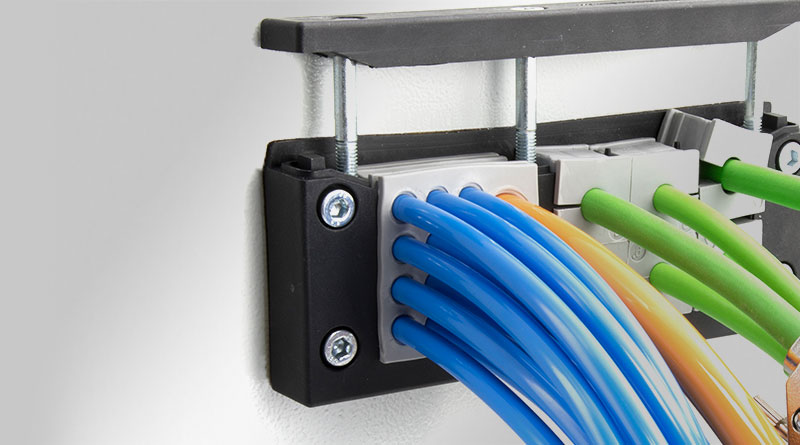

Multi-membrane cable grommets, IP54 / UL Type 12

Multi membrane cable grommets based on the KT grommets for routing of several standard cables with varying diameters.

» KT-DT

Split U-shaped cable grommet, up to IP54 / UL Type 12

Split U-shaped cable grommet for cables with and without connectors (with a diameter range of 4 - 11 mm). Tool-free assembly.

» UT

U-shaped multi-membrane cable grommet, up to IP54 / UL Type 12

U-shaped multi-membrane cable grommet for cables without connectors (with a diameter range of 1 - 11 mm). Tool-free assembly.

» UT-DT

Large multi-range cable grommets for KEL 183, IP54 / UL Type 12

Large flexible cable grommets with multi range for cable diameters of up to 75 mm. Suitable for cable entry KEL 183.

» KTMB 183

Large cable grommets for KEL-JUMBO, IP54 / UL Type 12

Large cable grommets for cable diameters of up to 65 mm. Suitable for KEL-JUMBO.

» KTF | KTF-SCDP

Cable grommets for flat cables, IP54

Cable grommets for flat cables. Used in KEL-FL cable entries.

» FT

Split QUICK cable grommets, IP54

Split cable grommets for diameters 1 to 15 mm. Suitable for KEL-QUICK cable entry frames and QVT cable glands.

» QT

Split QUICK multi-range cable grommets, IP54 / UL Type 12

Split cable grommets for diameters 14 - 29 mm. Suitable for KEL-QUICK cable entry frames and QVT-CLICK cable glands.

» QTMB

QUICK multi-membrane cable grommets, grey, IP54 / UL Type 12

Multi membrane cable grommets based on the QT grommets for routing of several standard cables with varying diameters.

» QT-DT

Split EMC cable grommets for cables with connectors

Split conductive EMC grommets for cable shield diameters from 2 to 16 mm or 13 to 33 mm.

» EMC-KT

Split cable grommets for the food industry, IP64/IP65

Split cable grommets for the food industry, for diameters of 1 to 16 and 16 - 35 mm. Suitable for KEL-ER-BL cable entry frames.

» KT-BL

Split multi cable grommets for the food industry, IP54

Split multi cable grommets for the food industry, for diameters of 1 to 8 mm. Suitable for KEL-ER-BL cable entry frames.

» KT-BL multi

Split cleanroom cable grommets, IP66/IP68 / UL Type 12/4X*

Split cable grommets for diameters of 1 to 17 and 16 - 35 mm. Suitable for KEL CR cable entry frames.

» KT CR

Split multi / special cleanroom cable grommets, IP54 / UL Type 12

Split cable grommets for diameters of 1 to 8 mm. Suitable for KEL CR cable entry frames.

» KT CR multi

Plugs for split cable grommets

Plugs for sealing unused split KT and QT cable grommets.

» ST

Membrane plugs for gland plates & cable grommets / UL Type 12/4X*

Plugs for sealing already pierced membranes of cable entry plates as well as for numerous cable grommets.

» ST-B

Pressure compensation element with metric thread, IP68

Pressure compensation element with metric thread to avoid water condensation in highly sealed enclosures (IP68)

» PCE

Service boxes for cable grommets

Assortment of cable grommets in various types and sizes. Perfect for maintenance cases.

» KT / QT ServiceBox

Split cable entry systems, IP54 - IP66

Split cable entry systems for preterminated cables (based on standard cut-outs of industrial multi-pin heavy duty connectors).

Split cable glands, IP54 - IP68

Split cable glands for preterminated cables (for cut-outs M16 - M80).

The practical icotek product configurator

With the product configurator, you can now assemble your cable entry system with the required cable or adapter grommets.

icotek grommet box configurator

Configure your individual grommet ServiceBox. Always have the right cable grommets for your cable entry at hand!

Info guide – everything you need to know about cable grommets

Split cable grommets for cables with connectors

Split cable grommets allow the insertion of pre-assembled cables with already mounted connectors without the need for disassembly. This significantly reduces installation time. At the same time, warranty claims for the pre-assembled cables remain valid.

Split cable grommets for KEL/KVT:

KT single grey / black
KT multi grey / black
KTMBS grey / black

Split cable grommets for KEL-QUICK/QVT:

QT single / multi grey
QTMB grey

Flexible multi-range cable grommets for cables without connectors

For unassembled cables, icotek offers closed, flexible cable grommets in various designs, most of which cover a wider clamping range. A multi-membrane grommet with a high cable density is also available in various sizes.

Closed cable grommets for KEL/KVT:

KTMB multi-range grommet, grey
KT-DPF multi-range grommet, grey / black
KT-SC multi-range grommet, grey
KT-DT multi-membrane grommet, grey

Closed cable grommets for KEL-QUICK/QVT:

QT-DT multi-membrane grommet, grey

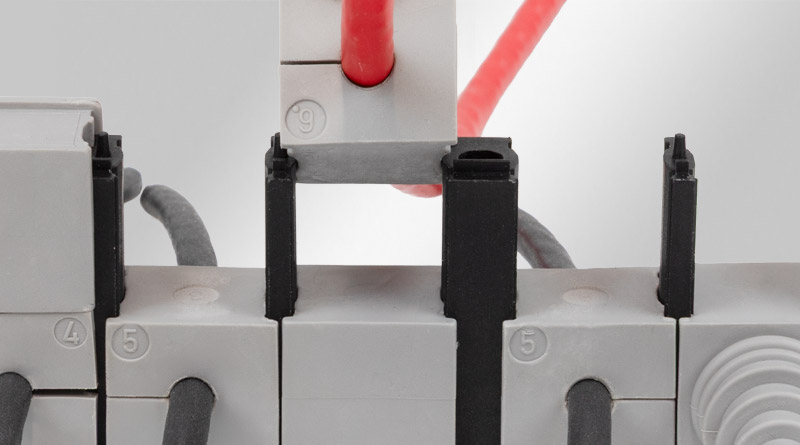

Cable grommet installation - quick & easy

The preterminated cable is placed into the split grommet which is set into one of the cable entry frame’s compartments. The grommet is now securely fixed inside the frame and can’t fall out. Once the lid is affixed to the base frame, it is compressed and tightly sealed.

For cable grommets specifically designed for unassembled cables, the cables are simply pulled through the grommet.

When fitting the frames, it is important that the grommets in the bottom row face upwards with the flat side, and those in the top row face downwards with the flat side. Always mount the KT grommets flat on flat.

When using multi-range grommets, the specified clamping ranges or the instructions for cutting the grommets should always be observed.

Wide variety, high protection, multiple certifications

Many of the grommets achieve high protection ratings such as IP66/IP68 (certified according to EN 60529) or UL Type 4X* (certified according to UL 50E) and are therefore suitable for demanding environments with dust, moisture, or high mechanical stress.

The KT series cable grommets also offer high strain relief according to EN 62444 thanks to their high contact pressure.

Another advantage of icotek cable grommets is their high flexibility in cable configuration. Multi-cable grommets allow for the routing of several cables in confined spaces, thus contributing to a compact design of machines and systems.

Unused grommets can be quickly and easily sealed with plugs.

In addition, special EMC cable grommets provide secure shielding and help protect sensitive electrical components from electromagnetic interference.

Besides standard applications, icotek also develops special cable grommets for specific applications such as the railway industry, cleanrooms, and hygiene-critical applications in the food and pharmaceutical industries.

Flame class UL94-V0, IP, UL Type Rating, UL recognized, DNV, RINA, EU railway standard EN 45545-2, vibration resistance according to EN 61373, ECOLAB cleaning agent resistance, UV resistance, ... icotek cable grommets are extensively tested and certified. The corresponding certificates can be requested from us.

_{*4X for indoor use only}
