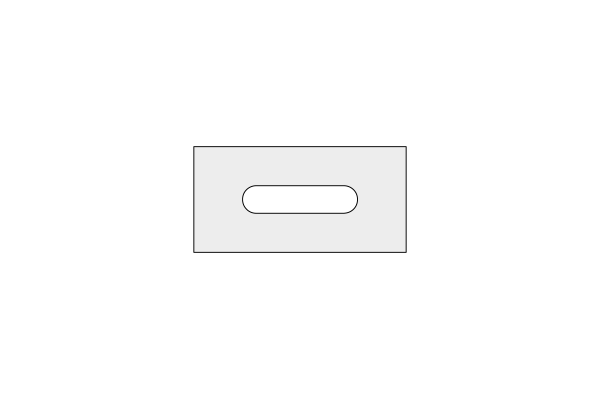

FT-1|0
| Part No. | 46201 |
| EAN | 4251269311673 |
| Package quantity | 5 |
| Colour | grey (similar RAL 7035) |
| Length | 42 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
-
Products
»
Cable grommets
»

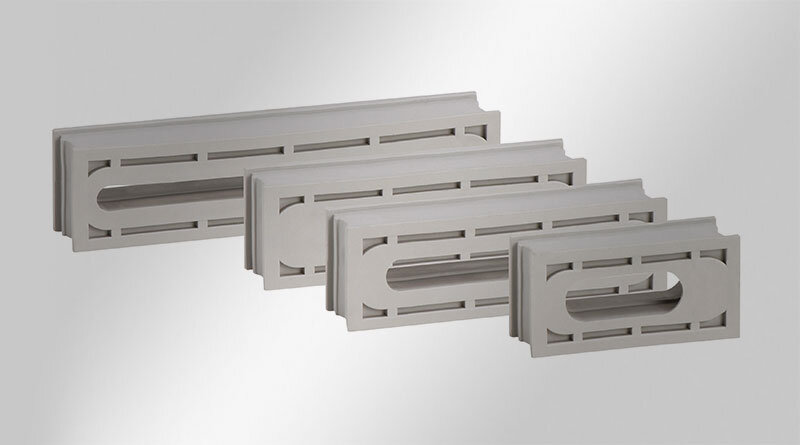

FT | Cable grommets for flat cables
FT | Cable grommets for flat cables
for use in cable entry frames KEL-FL / IP54
FT grommets are used to route flat cables, e.g. in lift construction. Suitable for cable entry frames KEL-FL.
Innovative construction of the grommets compensates for manufacturing inconsistencies in flat cables.
Specifications
| IP rating (EN 60529) | IP54 |
| UL Type (UL 50E) | UL Type 12 |
| Flame class | UL94-V0, self-extinguishing |
| Operating temperature | -40 C° to 100 C° |
| Material | Elastomer |
| Properties | silicone free, halogen free |
Advantages & benefits
- Routing of flat cables with various dimensions
Product types & sizes
FT-1|A
| Part No. | 46210 |
| EAN | 4251269311710 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | grey (similar RAL 7035) |
| Length | 42 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Flat cable |
| Min. flat cable width | 19 mm |
| Max. flat cable width | 23 mm |
| Min. flat cable thickness | 5.5 mm |
| Max. flat cable thickness | 6 mm |
FT-1|B
| Part No. | 46211 |
| EAN | 4251269311727 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | grey (similar RAL 7035) |
| Length | 42 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Flat cable |
| Min. flat cable width | 28 mm |
| Max. flat cable width | 33 mm |
| Min. flat cable thickness | 5.5 mm |
| Max. flat cable thickness | 6 mm |
FT-1|C
| Part No. | 46212 |
| EAN | 4251269311734 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | grey (similar RAL 7035) |
| Length | 42 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Flat cable |
| Min. flat cable width | 24 mm |
| Max. flat cable width | 30 mm |
| Min. flat cable thickness | 8.5 mm |
| Max. flat cable thickness | 9 mm |
FT-1|E
| Part No. | 46214 |
| EAN | 4251269311741 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | grey (similar RAL 7035) |
| Length | 42 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Flat cable |
| Min. flat cable width | 19 mm |
| Max. flat cable width | 24 mm |
| Min. flat cable thickness | 6.5 mm |
| Max. flat cable thickness | 7 mm |
FT-1|F
| Part No. | 46215 |
| EAN | 4251269311758 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | grey (similar RAL 7035) |
| Length | 42 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Flat cable |
| Min. flat cable width | 28 mm |
| Max. flat cable width | 33 mm |
| Min. flat cable thickness | 9 mm |
| Max. flat cable thickness | 9.5 mm |

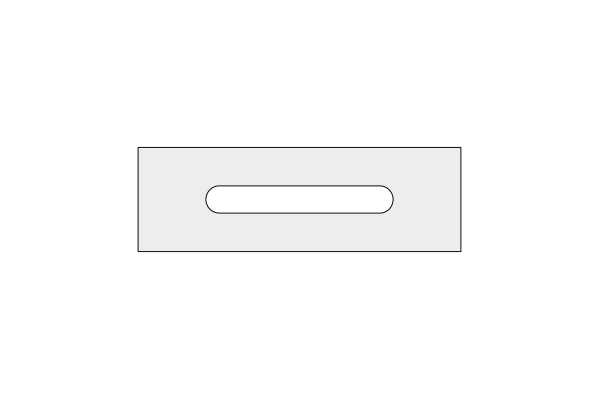

FT-2|0
| Part No. | 46202 |
| EAN | 4251269311680 |
| Package quantity | 5 |
| Colour | grey (similar RAL 7035) |
| Length | 65 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
FT-2|A
| Part No. | 46250 |
| EAN | 4251269311765 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | grey (similar RAL 7035) |
| Length | 65 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Flat cable |
| Min. flat cable width | 32.5 mm |
| Max. flat cable width | 38 mm |
| Min. flat cable thickness | 5 mm |
| Max. flat cable thickness | 5.5 mm |
FT-2|B
| Part No. | 46251 |
| EAN | 4251269311772 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | grey (similar RAL 7035) |
| Length | 65 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Flat cable |
| Min. flat cable width | 45 mm |
| Max. flat cable width | 50.5 mm |
| Min. flat cable thickness | 6 mm |
| Max. flat cable thickness | 6.5 mm |
FT-2|C
| Part No. | 46252 |
| EAN | 4251269311789 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | grey (similar RAL 7035) |
| Length | 65 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Flat cable |
| Min. flat cable width | 47 mm |
| Max. flat cable width | 52 mm |
| Min. flat cable thickness | 9.5 mm |
| Max. flat cable thickness | 10 mm |
FT-2|F
| Part No. | 46255 |
| EAN | 4251269311796 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | grey (similar RAL 7035) |
| Length | 65 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Flat cable |
| Min. flat cable width | 38 mm |
| Max. flat cable width | 43 mm |
| Min. flat cable thickness | 12.5 mm |
| Max. flat cable thickness | 13 mm |
FT-2|G
| Part No. | 46256 |
| EAN | 4251269311802 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | grey (similar RAL 7035) |
| Length | 65 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Flat cable |
| Min. flat cable width | 49 mm |
| Max. flat cable width | 54 mm |
| Min. flat cable thickness | 5 mm |
| Max. flat cable thickness | 6 mm |

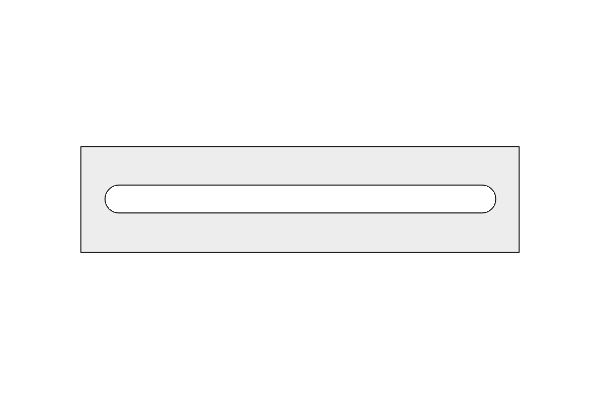

FT-3|0
| Part No. | 46203 |
| EAN | 4251269311697 |
| Package quantity | 5 |
| Colour | grey (similar RAL 7035) |
| Length | 87 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
FT-3|A
| Part No. | 46300 |
| EAN | 4251269311819 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | grey (similar RAL 7035) |
| Length | 87 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Flat cable |
| Min. flat cable width | 72 mm |
| Max. flat cable width | 77 mm |
| Min. flat cable thickness | 5 mm |
| Max. flat cable thickness | 5.5 mm |

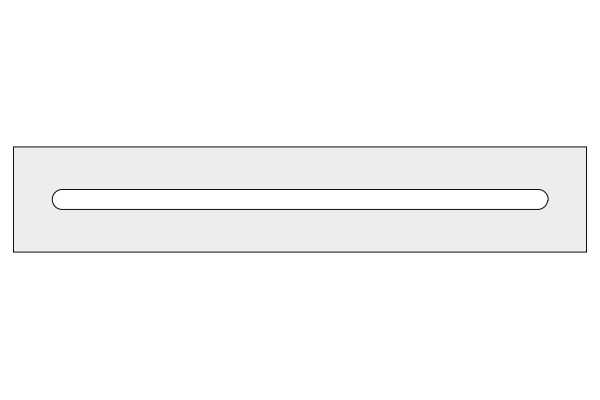

FT-4|0
| Part No. | 46204 |
| EAN | 4251269311703 |
| Package quantity | 5 |
| Colour | grey (similar RAL 7035) |
| Length | 114 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
FT-4|A
| Part No. | 46330 |
| EAN | 4251269311826 |
| Package quantity | 5 |
| For max. no. of cables | 1 |
| Colour | grey (similar RAL 7035) |
| Length | 114 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Flat cable |
| Min. flat cable width | 85 mm |
| Max. flat cable width | 99 mm |
| Min. flat cable thickness | 4.2 mm |
| Max. flat cable thickness | 5.2 mm |
You haven't found anything suitable yet?
Try the ProductFinderSuitable for:

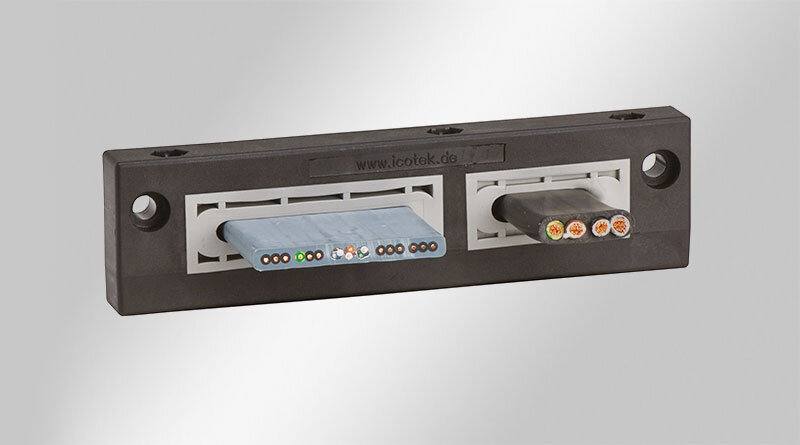

KEL-FL
Split cable entry frame for flat cables, IP54
KT/FT grommet based split single-row cable entry frame for flat cables as well as prefabricated round cables.
