Cable entry plates, membrane based

for cables without connectors



With the membrane based cable entry plates unterminated cables, pneumatic and hydraulic hoses or optical fibres can be quickly and space-savingly routed into control cabinets, panels or machines and be sealed with certified protection class up to IP68 (acc. to EN 60529) and UL Type 4X* (acc. to UL50 E). icotek cable entry plates are cost, space and time saving alternatives to traditional cable glands. Find out more »

Request your free product sample

icotek cable entry plates at a glance

Filter products:

High density gland plate, up to IP65

Gland plate with high cable density and certified protection IP65. Cables can be fed through from both sides.

» KEL-DPR

Thread extension for cable glands and cable entry plates, M32 / M50 / M63

Custom made thread extension for cable glands and cable entry plates with metric threads M32 / M50 / M63.

» TE Thread extension

Round snap-in gland plate, M25-M63, IP65/IP66/IP68

Round snap-in gland plate for snap-in or locknut mounting with certified sealing IP65/IP66/IP68. Metric threads M25 - M63.

» KEL-DPZ-CLICK

Round gland plate, IP66/IP68 / UL Type 12/4X*

Round gland plate with certified sealing IP66/IP68 / UL Type 12/4X*. Metric threads M25-M63.

» KEL-DPZ round

Round gland plate, hygienic design, IP66/IP68, FDA compliant

Round hygienic gland plate with certified sealing IP66/IP68. Metric threads M32-M63.

» KEL-DPZ-HD round

90° Cable entry adapter, up to IP66

KEA is a multifunctional adapter for various cable entry systems. The adapter allows cables to be routed at a 90° angle and sealed with up to IP66.

» KEA

Heavy duty gland plate, IP66/IP68 / UL Type 12/4X*

Heavy duty gland plate with high strain relief and certified protection up to IP68 / UL Type 4X*.

» KEL-DPU

Heavy duty gland plate, hygienic design, IP66/IP68, FDA compliant

Hygienic heavy duty gland plate with high strain relief and certified protection up to IP66/IP68.

» KEL-DPU-HD

High density gland plate, up to IP66 / UL Type 12

Gland plate with high cable density and certified protection IP66 / UL Type 12. Available in various sizes.

» KEL-DPZ

U-shaped multi-membrane cable grommet, up to IP54

U-shaped multi-membrane cable grommet for cables without connectors (with a diameter range of 1 - 11 mm). Tool-free assembly.

» UT-DT

Plug-in gland plate, IP64 / UL Type 12

Gland plate for tool-free plug-in assembly. Certified sealing rates IP64 / UL Type 12.

» KEL-DP

Round plug-in gland plate, IP65 / UL Type 12

Compact round gland plate with high cable density. For plug-in into cut-outs from M16 to M50.

» KEL-DP round

Cable entry grommet, IP65

Flexible cable entry grommet for single cables. Metric threads M25-M63.

» KEL-SCDP-TR

Plug-in cable entry grommet, IP65

Flexible cable entry grommet for single cables. For plug-in into cut-outs from M25 to M50.

» KEL-SCDP

Pyramid cable entry grommet, IP66/IP68 / UL Type 12/4X*

Flexible pyramid shaped cable entry grommet for cable diameters 3-70 mm. Metric threads M25-M85.

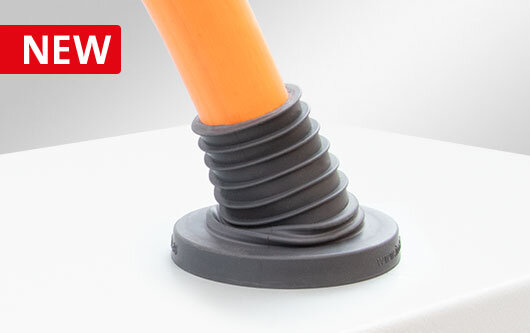

» KEL-DPF

Pyramid cable entry grommet, IP66 / UL Type 12

Highly flexible pyramid shaped cable entry grommet for cable diameters 25-115 mm.

» KEL-ULTRA flex

Pyramid cable entry grommet, IP54 / UL Type 12

Flexible pyramid shaped IP54 / UL Type 12 cable entry grommet for cable diameters 27-68 mm.

» KEL-JUMBO flex

Cover panels for thread extensions & cable entry systems, M32 / M50 / M63

The cover panels have an outer diameter of 150 mm and a centre hole of 32.5 mm, 50.5 mm or 63.5 mm to accommodate the thread extensions, cable entry plates & split cable glands.

» AB-M

Cover plugs

The openings at the fastening points of the cable entry plates & frames can be closed with the cover plugs.

» Cover plugs

Membrane plugs for gland plates & cable grommets

Plugs for sealing already pierced membranes of cable entry plates as well as for numerous cable grommets.

» ST-B

Membrane plugs for gland plates, FDA compliant

Plugs for sealing already pierced membranes of gland plates. Also available as detectable version (type ST-B-HDD).

» ST-B-HD | ST-B-HDD

Multi-membrane cable entry plates for cables without connectors

Duration: 37 min.

With the membrane based cable entry plates cables, pneumatic and hydraulic hoses or optical fibres can be quickly and space-savingly routed into control cabinets, panels or machines and be sealed with certified protection class up to IP68 (acc. to EN 60529) and UL type 4X (acc. to UL50 E). icotek cable entry plates are cost, space and time saving alternatives to traditional cable glands.

Watch now!


Info guide – everything you need to know about multi cable entry plates

In comparison to traditional solutions such as standard cable glands the cable density is greatly increased. Furthermore, the required mounting time is considerably shorter compared to multiple cable glands, since only one cut-out has to be made for several dozen lines and only one cable entry plate has to be installed. This combined with a reduction of required space make the icotek cable entry plate solution a great choice.



Cable entry plates – the cable gland alternative

The icotek cable entry plates are available in many different series in round and rectangular designs. With 8 to 14.5 mm mounting height, they build very flat and have a smooth and even surface. Dirt recesses are thereby prevented, the cable entry plates are thus also suitable for applications in medical technology, food packaging or clean room areas. In addition, icotek cable entry plates are detergent resistant (ECOLAB certified).

The cable entry plates consist of a robust hard frame made of plastic or metal which is completely moulded with elastomer. At the cable entry plate front there are pierceable membranes for various cable diameters, on the back there are conical cable sleeves to ensure a double sealing of the cables with certified protection class up to IP68 (acc to. EN 60529) and UL Type 4X* (acc to UL50 E). This unique grommet design also provides a good strain relief.



icotek cable entry plates - quick and easy installation

Depending on the model, it can be either mounted with screws, simply plugged into the cut-out without tools, or be fixed with a locknut. The required cut-outs are either metric standard cut-outs (M20 - M85) or correspond to standard cut-outs of 16- and 24-pin heavy-duty connectors. The assembly of the cable entry plates can be done within seconds. Simply put a small slit into the thin membrane and push the cable through. Check out our assembly video and convince yourself.



Large variety of cable entry plate types

The different series of icotek multi cable entry plates offer a wide range of application possibilities:

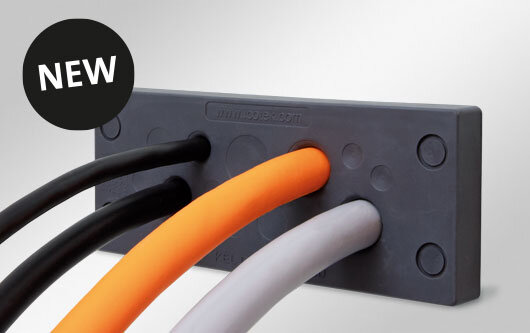

  • icotek offers the » cable entry plate KEL-DPU 24 with protection classes IP66/IP68 / UL Type 4X* for the highest demands on ingress protection, robustness and hygiene. A tool-free plug-in mounting is possible.
  • The rectangular » cable entry plate KEL-DPZ is available in numerous sizes and offers a high degree of ingress protection (up to IP66) and a very high cable density.
  • The round version of the » cable entry plate KEL-DPZ can be mounted into metric cutouts from M25 to M63 and fixed with a locknut without the need of tools. The double sealing of the cables enables a high ingress protection IP66/IP68 / UL Type 4X*.

Well tested & certified

Approvals and standards such as flame class UL 94-V0, IP and UL rated ingress protection, UL recognized, DNV, RINA, EN 45545-2 and ECOLAB detergent resistance enable icotek cable entry plates to be real alternatives to conventional cable glands. Certificates or declarations of conformity can be requested directly from us.
