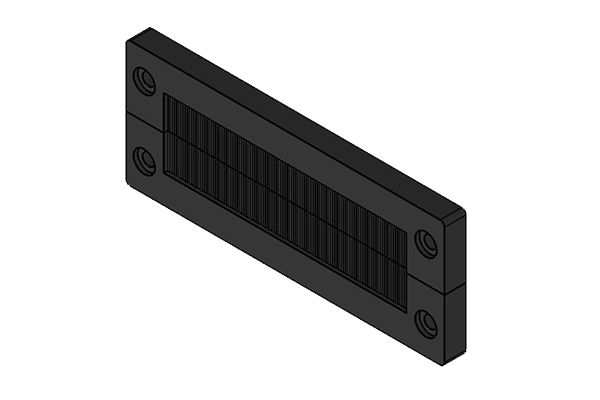

KEL-BES-S 24
| Part No. | 51522 |
| EAN | 4251269316609 |
| Package quantity | 10 |
| Mounting options | Screw type mounting, Riveting |
| Length | 147 mm |
| Width | 58 mm |
| Height | 10 mm |
| Mounting height | 10 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
-
Products
»
Brush cable pass-through
»
KEL-BES-S split brush plate
KEL-BES-S split brush plate
for cable pass-through
Split brush plates KEL-BES-S for routing cables into server racks, control panels and electrical enclosures. KEL-BES-S is also an ideal solution for entry and exit of cables that are routed inside raised floors, e.g. in computer centres.
The brush plates can either be mounted via screws or via expanding rivets. Due to the split frame the KEL-BES-S can also be subsequently installed around the routed cables.
The KEL-BES-S frames match exactly the cut-out dimensions for 10-, 16- and 24-pin standard industrial connectors.
Specifications
| Flame class | UL94-V0, self-extinguishing |
| Operating temperature | -20 C° to 90 C° |
| Material | Polyamide Brushes: Polyamide |
| Mounting options | Screw type mounting, Riveting |
| Properties | silicone free, halogen free |
Advantages & benefits
- Fast and easy assembly
- Subsequent assembly possible
- Versatile utilisation
- Allows reduced airflow while filtering out dust, hair and larger particulate matter
- Visual screening
- Protects cables against wear due to sharp edges of the cut-out
Product types & sizes
KEL-BES-S 24 with expanding rivets
| Part No. | 51522.002 |
| EAN | 4251269320705 |
| Package quantity | 10 |
| Mounting options | Screw type mounting, Riveting |
| Length | 147 mm |
| Width | 58 mm |
| Height | 10 mm |
| Mounting height | 10 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
KEL-BES-S 16
| Part No. | 51521 |
| EAN | 4251269316593 |
| Package quantity | 10 |
| Mounting options | Screw type mounting, Riveting |
| Length | 120 mm |
| Width | 58 mm |
| Height | 10 mm |
| Mounting height | 10 mm |
| Cut-out size | 86 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
KEL-BES-S 16 with expanding rivets
| Part No. | 51521.002 |
| EAN | 4251269320699 |
| Package quantity | 10 |
| Mounting options | Screw type mounting, Riveting |
| Length | 120 mm |
| Width | 58 mm |
| Height | 10 mm |
| Mounting height | 10 mm |
| Cut-out size | 86 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
KEL-BES-S 10
| Part No. | 51520 |
| EAN | 4251269316586 |
| Package quantity | 10 |
| Mounting options | Screw type mounting, Riveting |
| Length | 100 mm |
| Width | 58 mm |
| Height | 10 mm |
| Mounting height | 10 mm |
| Cut-out size | 65 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
KEL-BES-S 10 with expanding rivets
| Part No. | 51520.002 |
| EAN | 4251269320682 |
| Package quantity | 10 |
| Mounting options | Screw type mounting, Riveting |
| Length | 100 mm |
| Width | 58 mm |
| Height | 10 mm |
| Mounting height | 10 mm |
| Cut-out size | 65 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
You haven't found anything suitable yet?
Try the ProductFinderAssembly video
Convince yourself of the simple and time-saving assembly of our products.
Watch the assembly video!
Simply assemble the cable entry component with grommets
Always find the right size and the right cable grommets for your cable entry!
Suitable accessories
Expanding rivets
Expanding rivets
Expanding rivets for mounting of KEL-BES and KEL-BES-S brush plates.
FP
Flange plates, IP54 - IP66
Flange plates for mounting cable entry components on compact enclosures, terminal boxes or bus enclosures by Rittal and Fibox.
MP
Modular gland plates, IP54
Modular gland plate system for mounting cable entry components in enclosure bases, roofs and divider panels. Suitable for enclosure base plate KDR-BMP.

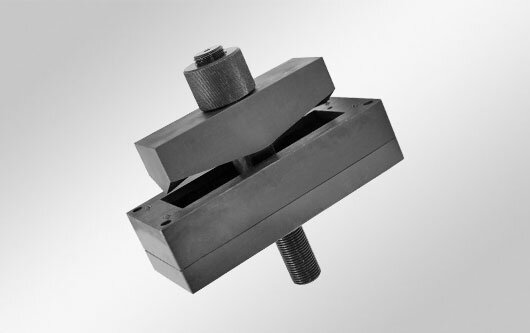

Rectangular punches
