IMAS-CONNECT™

Adapter grommets for Keystone jacks, PushPull connectivity and circular connectors

IMAS-CONNECT™ by icotek is a modular designed grommet system for mounting circular connectors, Keystone jacks, PushPull connectors, hose fittings, pressure compensation elements and much more. By utilising the modular adapter system, the split icotek cable entry frame becomes a hybrid system. Find out more »

Request your free product sample

Adapter grommets for KEL systems

Split cable entry frame with Han 3A / Han 4A connection / IP65 / UL Type 12

The modular interface system (MIS) is a split cable entry for cables with and without plugs in combination with industrial connectors 3A or 4A.

» MIS

Adapter grommets for KEL with inner thread M5 - M25, IP65/IP66

Adapter grommets with inner thread based on KT cable grommets.

» AT-M | AT-K-M

Adapter grommets for KEL with inner thread 1/8" - 1/4" (BSP), IP66

Adapter grommets with Whitworth pipe threads according to ISO 227-1. Based on KT cable grommets.

Adapter grommet with protection cover for KEL, for Keystone jacks, IP54

Adapter grommet with protection cover based on KT cable grommets for snap-in mounting of Keystone jacks.

» AT-KS-AK

Adapter grommet for KEL, for Keystone jacks

Adapter grommet based on KT cable grommets for snap-in mounting of Keystone jacks.

» AT-KS

Adapter grommet for KEL, for PushPull connectors, IP65

Adapter grommet based on KT cable grommets for PushPull connection technology.

» AT-KS

Adapter grommet for KEL, for M23 square flange, IP65

Adapter grommet based on KT cable grommets for square flanges with the dimensions 19.8 x 19.8 mm (M23).

» AT-FL

Adapter grommets for KEL, for custom interface solutions, IP65

Blank adapter grommet based on KT grommets for custom interface solutions (e.g. screw mounted hybrid connectors).

» AT-B

Split cable entry systems, IP54 - IP66

Split cable entry systems for preterminated cables (based on standard cut-outs of industrial multi-pin heavy duty connectors).

The practical icotek product configurator

With the product configurator, you can now assemble your cable entry system with the required cable or adapter grommets.

Adapter grommets for QUICK systems

Adapter grommets for KEL-QUICK with inner thread M5 - M25, IP54

Adapter grommets with inner thread based on QT cable grommets.

» QT-AT-M | QT-AT-K-M

Adapter grommet with protection cover for KEL-QUICK, for Keystone jacks, IP54

Adapter grommet with protection cover based on QT cable grommets for snap-in mounting of Keystone jacks.

» QT-AT-KS-AK

Adapter grommet for KEL-QUICK, for Keystone jacks

Adapter grommet based on QT cable grommets for snap-in mounting of Keystone jacks.

» QT-AT-KS

Adapter grommet for KEL-QUICK, for PushPull connectors, IP54

Adapter grommet based on QT cable grommets for PushPull connection technology.

» QT-AT-KS

Adapter grommet for KEL-QUICK, for M23 square flange, IP54

Adapter grommet based on QT cable grommets for square flanges with the dimensions 19.8 x 19.8 mm (M23).

» QT-AT-FL

Adapter grommets for KEL-QUICK, for custom interface solutions, IP54

Blank adapter grommet based on large QT grommets for custom interface solutions (e.g. screw mounted hybrid connectors).

» QT-AT-B

Split cable entry frame for tool-free assembly, IP54

QT grommet based cable entry frames for tool-free assembly. Suitable for standard cut-outs of heavy industrial connectors. Available as single or double row version.

» KEL-QUICK | KEL-QUICK-E

Accessories

Pressure compensation element with metric thread, IP68

Pressure compensation element with metric thread to avoid water condensation in highly sealed enclosures (IP68)

» PCE

Pneumatic bulkhead fittings & couplings

The bulkhead fittings & couplings for pneumatic hoses are also available individually for use with the adapter grommets.

» Pneumatic bulkhead fittings & couplings

Keystone jacks

The Keystone jacks are also available individually for use with the adapter grommets.

» Keystone jacks

Info guide – everything you need to know about the adapter grommets

The new modular adapter system IMAS-CONNECT™ is a modular designed grommet system for mounting circular connectors, Keystone jacks, panel interface connectors, hose fittings, pressure compensation elements and much more.

By utilising the modular adapter system, the cable entry frame becomes a hybrid system. Pre-terminated and standard cables or hoses can be routed and at the same time the system serves as an interface for connectors.

The grommets, made of elastomer with a polyamide body, fit perfectly into the split icotek cable entry frames, like KEL-U, KEL-ER, KEL-FG and KEL-QUICK and meet the protection classes IP54 to IP65 / IP66, depending on the grommet type.

Adapter grommet AT-KS – big variety in Keystone jack integration possibilities

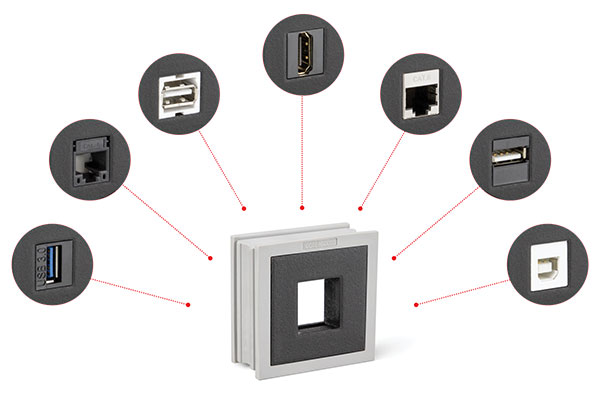

The » adapter grommets AT-KS are based on the large KT grommet, » adapter grommets QT-AT-KS on the large QT grommet. The integrated polyamide body enables a snap-in-assembly of all jacks based on the Keystone system e.g. USB, RJ45, HDMI and approx. 70 other Keystone jacks. For assembly simply snap the Keystone jack into the adapter grommet.

Overview Keystone jacks (PDF)

IMAS-CONNECT™ adapter grommet for Keystone jacks now available with protection cover!

If a pre-assembled Keystone jack is not used directly, the hinged cover with integrated seal offers reliable protection against splash water and dust. Further advantages & benefits:

Certified protection rating of IP54 with closed cover
Easy to install due to locking mechanism: cover is fixed in the open position
Possibility of sealing the cover to protect against external influences

The AT-KS-AK grommet is available for the icotek KEL and QUICK systems:

AT-KS-AK

QT-AT-KS-AK

Adapter grommets AT-PP as an inteface for PushPull connectivity

The » grommet AT-PP is constructed on the basis of a large KT cable grommet, the » grommet QT-AT-PP is based on the large QT grommet. The cut-out enables a screw assembly of all "compact" connector housings based on the PushPull device connection technology.

Overview PushPull modules (PDF)

Adapter grommets AT-FL – suitable for M23 square flange connectors

The » adapter grommets AT-FL are based on the large KT grommet, » adapter grommets QT-AT-FL on the large QT grommet.

All square flanges with dimensions 19.8 x 19.8 mm (M23) can be integrated.

AT-FL provides ingress protection of up to IP65 (depending on the used flange and connector).

Adapter grommets AT-M/AT-K-M as an interface for small circular connectors

The » adapter grommet AT-K-M is based in the small KT grommet, the » grommet QT-AT-K-M on the small QT grommet. By using the AT-K-M adapter grommet several connectors can be inserted directly into the cable entry frame e.g. pneumatic bulkhead connectors M12 x 1,0, circular connectors and pressure compensation elements.

The AT-M model range as well as the QT-AT-M grommets are ideal for creating an interface for signal, data, power and hybrid connectors by simply screwing them into the AT-M thread. The adapter grommets AT-M are based on the large KT grommet. icotek also offers screw plugs to close the adapter grommet.

Blank adapter grommet AT-B and QT-AT-B are also available. The integrated polyamide body is completely closed on one side. Special bores can be made here as well as smaller flange bushes (for e.g. screw mounted hybrid device connectors).
