Split cable entry frame with Han 3A / Han 4A connection / IP65 / UL Type 12
The modular interface system (MIS) is a split cable entry for cables with and without plugs in combination with industrial connectors 3A or 4A.
» MIS-
Products»Cable entry systems for cables with connectors
Split cable entry systems for cables with connectors
waterproof with up to IP66 seal
Using the patented grommet based icotek cable entry system, a large number of pre-terminated cables (up to 65 mm in diameter) and cables without connectors (up to 75 mm in diameter) can be quickly routed into enclosures, control panels or machines and be sealed with up to IP66 / UL type 4X* rated ingress protection (certified according to EN 60529 / UL50-E). In addition, the cable entry frames serve as strain reliefs on the cable (acc. to EN 62444). The split cable entry system enables quick and easy assembly which is great for retrofits and maintenance. Find out more »
Request your free product sampleicotek cable entry systems at a glance
Filter products:

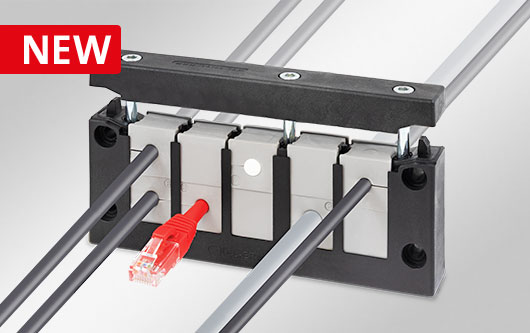

Split cable entry frame, IP66 / UL Type 12/4X*
KT grommet based cable entry for standard cut-outs of heavy industrial connectors. Available as single or double row version.
» KEL-ER | KEL-ER-E
Split cable entry frame, IP54 / UL Type 12
KT grommet based cable entry frames for standard cut-outs of heavy industrial connectors. Available as single or double row version.
» KEL-U | KEL-E
90° Cable entry adapter, up to IP66
KEA is a multifunctional adapter for various cable entry systems. The adapter allows cables to be routed at a 90° angle and sealed with up to IP66.
» KEA
Split cable entry frame for tool-free assembly, IP54 / UL Type 12
KT grommet based cable entry frames for tool-free assembly. Suitable for standard cut-outs of heavy industrial connectors.
» KEL-FA
Centrally split cable entry frame, IP54 / UL Type 12
Classic KT grommet based cable entry frames for standard cut-outs of heavy industrial connectors. Also available as multi-row versions.
» KEL

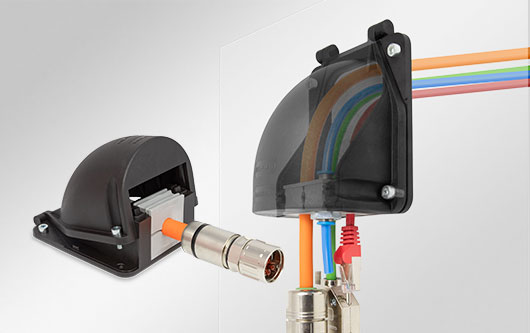

Split bulkhead for 90° cable entry, IP65
KT grommet based bulkhead for 90° preassembled cable transit for cable diameters up to 35 mm and a large bending radius (r max. = 150 mm).
» KEL-FW
Split 360° cable entry system, M32-M75, IP54
With the distribution box, centrally routed cables (with and without connectors) can be distributed 360° in all desired directions.
» DB Distribution Box
Split 90° cable entry enclosure, IP65
KT grommet based flange enclosure for routing preassembled cables in a 90° angle to the enclosure wall. Available as single or double row version.
» KEL-FG-ER | KEL-FG-ER-E
Split 90° cable entry enclosure, IP54 / UL Type 12
KT grommet based flange enclosure for routing preassembled cables in a 90° angle to the enclosure wall. Available as single or double row version.
» KEL-FG | KEL-FG-E
Split cable entry frame for tool-free assembly, IP54
QT grommet based cable entry frames for tool-free assembly. Suitable for standard cut-outs of heavy industrial connectors. Available as single or double row version.
» KEL-QUICK | KEL-QUICK-E
Split cable entry frame for flat cables, IP54
KT/FT grommet based split single-row cable entry frame for flat cables as well as prefabricated round cables.
» KEL-FL
Split cable entry frame for large diameters, IP54 / UL Type 12
KT grommet based cable entry frames for supply cables with large diameters of up to 75 mm. Available as single or double row version.
» KEL 183
Split cable entry frame for supply lines, IP54 / UL Type 12
Split cable entry frame for supply lines with diameters up to 65 mm.
» KEL-JUMBO
Cover plugs
The openings at the fastening points of the cable entry plates & frames can be closed with the cover plugs.
» Cover plugs
Flat gaskets
A flat gasket is provided to ensure a clean seal between the cable entry frame and the enclosure / control panel wall.
» Flat gaskets
Snap-in frames for cable entries, IP54 / UL type 12
Tool-free snap-in mounting frames for KEL, KEL-U and KEL-QUICK.
» KEL-SNAP
Split cable glands, IP54 - IP68
Split cable glands for preterminated cables (for cut-outs M16 - M80).
Split cable entry plate for tool-free assembly, IP54
QT grommet based cable entry plate made of elastomer for cables with or without connectors. Snap-in mounting.
» KEL-QTA
Split U-shaped cable grommet, up to IP54
Split U-shaped cable grommet for cables with and without connectors (with a diameter range of 4 - 11 mm). Tool-free assembly.
» UT
Split cable entry plate for tool-free assembly, IP54
Split M20 cable entry plate made of elastomer for cables with or without connectors. Tool-free mounting.
» KEL-QTE
Membrane plugs for cable entry plates & cable grommets
Plugs for sealing already pierced membranes of cable entry plates as well as for numerous cable grommets.
» ST-B
Cable grommets
Split cable grommets for prefabricated cables, multi-range grommets, special grommets for e.g. telephone cables, flat wires or supply lines.
Split brush plates for cable pass-through
Suitable for cut-outs of heavy industrial connectors. Mounting via screws or expanding rivets.
» KEL-BES-S
IMAS-CONNECT™ Adapter grommets
Adapter grommets with inner threads and for mounting of Keystone and PushPull modules.
The practical icotek product configurator
With the product configurator, you can now assemble your cable entry system with the required cable or adapter grommets.
Search and filter products with the icotek ProductFinder!
Find the perfect product for your application. Try it now!
Info guide – everything you need to know about split cable entry systems
The icotek split cable entry systems enable the transit of a large number of connectorised cables or complete cable harnesses in a small area. In contrast to conventional cable glands the connector doesn’t have to be cut off the cable in advance and be re-connected afterwards. Thus, the cable manufacturer's warranty remains and you save a lot of assembly time. But also electrical, pneumatic or hydraulic lines without connectors as well as corrugated conduits and hoses can be easily routed, sealed and strain relieved using split cable entry systems.
icotek cable entry systems - completely splittable, high cable density
The icotek cable entry system is completely split. Thus, a quick and easy assembly is possible. The preterminated cable is placed into the » split grommet which is set into one of the cable entry frame’s compartments. The grommet is now securely fixed inside the frame and can’t fall out. Due to the fine gradation of the cable diameters, there is an excellent adaptation of the grommet to the inserted cable or hose. Once the lid is affixed to the base frame, it is compressed and tightly sealed. The high compression pressure ensures strain relief according to EN 62444 and certified sealing rates up to IP66 (acc. to EN 60529) and UL Type 4X* (acc. to UL 50E).
Another benefit is the high cable density of the cable entry systems that enable a space-saving assembly. For example, when using multiple grommets with some specific frame sizes, up to 120 lines can be routed in an area of 15 × 15 cm.
Easy assembly of the cable entry systems
The cable entry systems are either screw mounted or simply snapped into a pre-mounted snap frame. The cable entry systems are available in many different sizes which are mostly based on standard cut-outs of industrial multi-pin heavy duty connectors. Convince yourself of the easy and quick installation of the split cable entry systems with our assembly videos:
Large variety of cable entry systems
The different model ranges of the icotek split cable entry systems offer various application possibilities:
- For cable routing (up to 35 mm in diameter) in extreme areas the » cable entry system KEL-ER offers high protection ratings IP66 / UL Type 4X*. Available in 8 different sizes.
- Similarly, icotek offers the » cable entry system KEL-U in the same sizes, with protection rating IP54 / UL type 12.
- The centrally split » cable entry system KEL is an icotek classic (protection ratings IP54 / UL type 12) which, due to its extensions, offers the highest cable density. Cables and hoses with diameters up to 35 mm can be routed.
- The » cable entry systems KEL-FA, » KEL-QUICK and » KEL-QTA (protection rating IP54) impress with the possibility of quick and consistently tool-free installation. Available in many different sizes.
- For routing cables in a 90° angle (protection rating IP54) icotek offers the » cable entry system KEL-FG in 5 different sizes.
- For routing flat cables (as well in combination with preterminated round cables) the » cable entry system KEL-FL is the perfect choice.
- For routing large diameter supply lines or hoses with up to 75 mm in diameter icotek offers the » cable entry systems KEL-JUMBO and » KEL 183.
- For applications with lower requirements on ingress protection icotek offers » cable pass-through plates with brush seal, specifically designed to feed cables easily into server racks, control panels and through raised floors and walls.
-
*4X for indoor use only
Well tested & certified
Approvals and standards such as flame class UL 94-V0, IP and UL rated ingress protection, UL recognized, DNV, RINA, EN 45545-2 and ECOLAB detergent resistance enable icotek cable entry systems to be real alternatives to conventional cable glands. Certificates or declarations of conformity can be requested directly from us.
