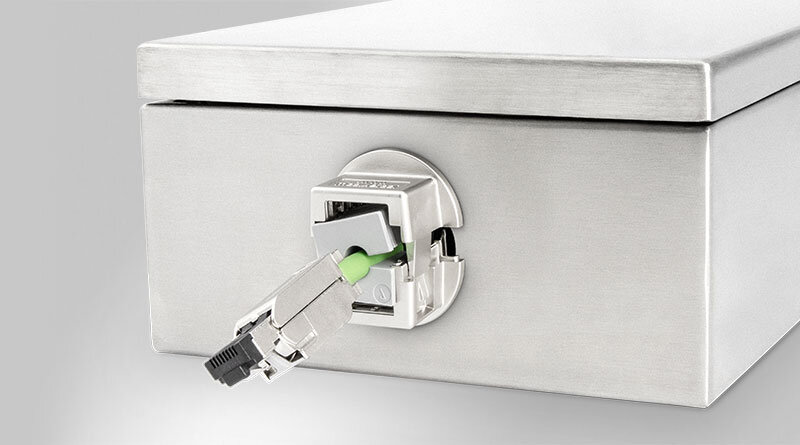

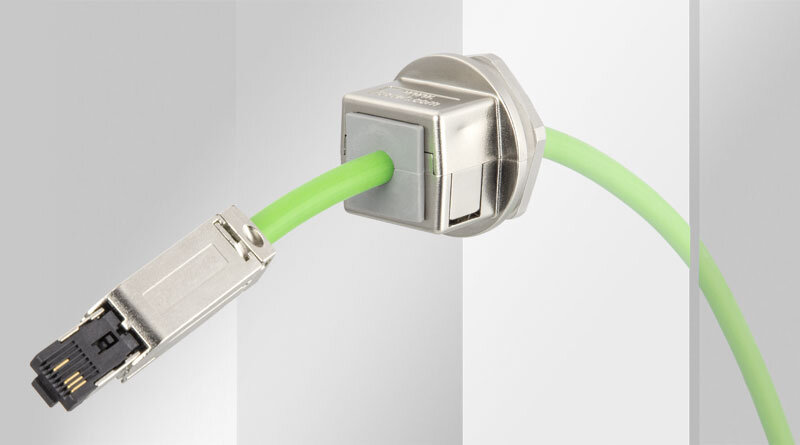

The split cable gland EMC-KVT-DS is based on the standard icotek KVT product. However, the EMC-KVT-DS has been metallised (galvanise coated) to create a conductive surface.

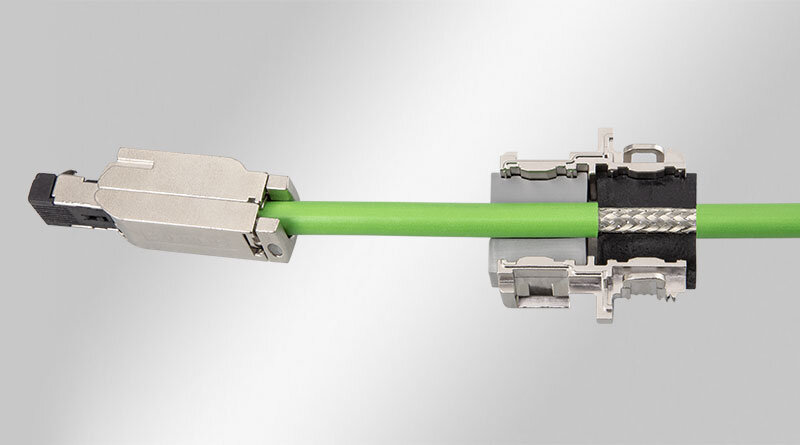

The first cable grommet (KT) is used for strain relief and cable sealing on the cable jacket. The second grommet (EMC-KT) contacts the cable shield at a full 360 degrees.

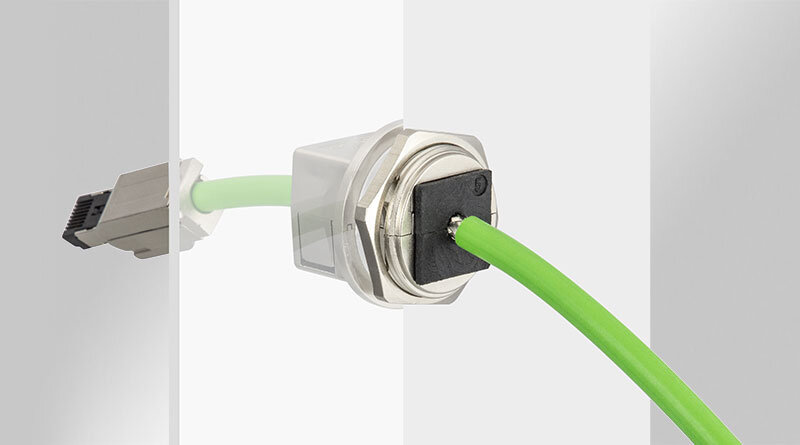

The conductive flat gasket included in the scope of delivery makes contact between the cable gland and the conductive housing wall. The EMC-KVT-DS can thus be fixed using a plastic lock nut. Alternatively, an additional contact to the metal wall can be made using a special EMC lock nut.
| IP rating (EN 60529) | IP54, IP55 |
| Flame class | UL94-HB |
| Operating temperature | -40 C° to 90 C° |
| Material | Polycarbonate, highly conductive coating Locknut: Brass, nickel-plated Locknut: Plastic |
| Mounting options | Fasten with locknut |

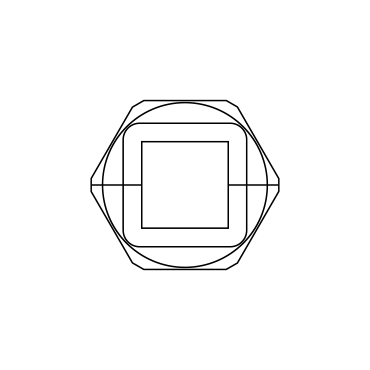

| Part No. | 99431 |
| EAN | 4251269321962 |
| Package quantity | 5 |
| Mounting options | Fasten with locknut |
| For max. no. of cables | 1 |
| Max. cable diameter | 17 mm |
| Mounting height | 23 mm |
| Cut-out size, metric | M32 |
| Cut-out size, round | 32.3 mm |
| Thread | M32 × 1,5 |
| Thread length | 14 mm |
| Suitable for grommets | 1 x KT small, 1 x EMC-KT small |
| Part No. | 99432 |
| EAN | 4251269322662 |
| Package quantity | 5 |
| Mounting options | Fasten with locknut |
| For max. no. of cables | 1 |
| Max. cable diameter | 17 mm |
| Mounting height | 23 mm |
| Cut-out size, metric | M32 |
| Cut-out size, round | 32.3 mm |
| Thread | M32 × 1,5 |
| Thread length | 14 mm |
| Suitable for grommets | 1 x KT small, 1 x EMC-KT small |
| Part No. | 99557 |
| EAN | 4251269321979 |
| Package quantity | 5 |
| Mounting options | Fasten with locknut |
| Height | 4.5 mm |
| Cut-out size, metric | M32 |
| Thread | M32 × 1,5 |

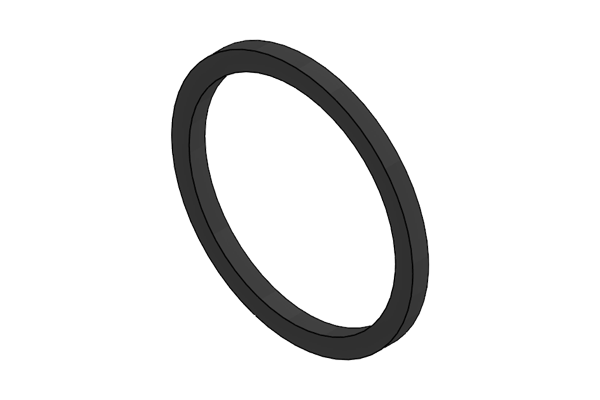

| Part No. | 99555 |
| EAN | 4251269322631 |
| Package quantity | 5 |
| Mounting options | Fasten with locknut |
| Height | 2.5 mm |
| External diameter | 38 mm |
| Cut-out size, metric | M32 |
| Thread | M32 × 1,5 |
| Part No. | 99434 |
| EAN | 4251269322587 |
| Package quantity | 1 |
| Mounting options | Fasten with locknut |
| For max. no. of cables | 1 |
| Max. cable diameter | 35 mm |
| Mounting height | 23 mm |
| Cut-out size, metric | M63 |
| Cut-out size, round | 63.4 mm |
| Thread | M63 × 1,5 |
| Thread length | 14 mm |
| Screw material | Stainless steel (V2A) |
| Suitable for grommets | 1 x KT large, 1 x EMC-KT large |
| Part No. | 99435 |
| EAN | 4251269322594 |
| Package quantity | 1 |
| Mounting options | Fasten with locknut |
| For max. no. of cables | 1 |
| Max. cable diameter | 35 mm |
| Mounting height | 23 mm |
| Cut-out size, metric | M63 |
| Cut-out size, round | 63.4 mm |
| Thread | M63 × 1,5 |
| Thread length | 14 mm |
| Screw material | Stainless steel (V2A) |
| Suitable for grommets | 1 x KT large, 1 x EMC-KT large |

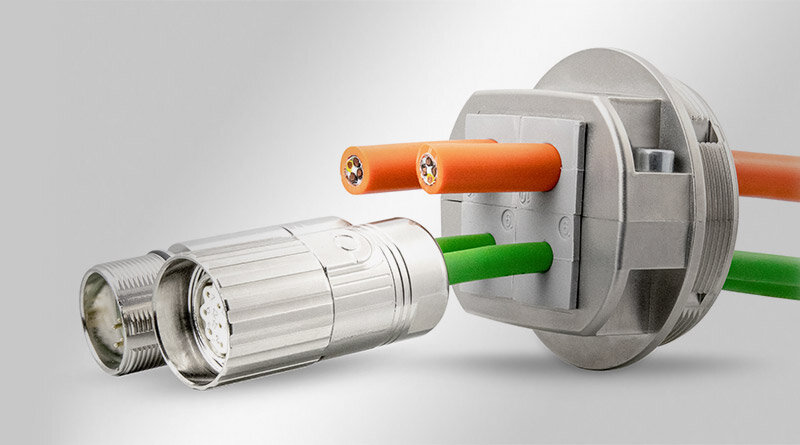

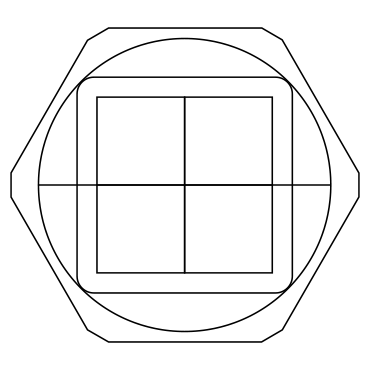

| Part No. | 99437 |
| EAN | 4251269322617 |
| Package quantity | 1 |
| Mounting options | Fasten with locknut |
| For max. no. of cables | 4 |
| Max. cable diameter | 17 mm |
| Mounting height | 23 mm |
| Cut-out size, metric | M63 |
| Cut-out size, round | 63.4 mm |
| Thread | M63 × 1,5 |
| Thread length | 14 mm |
| Screw material | Stainless steel (V2A) |
| Suitable for grommets | 4 x KT small, 4 x EMC-KT small |
| Part No. | 99436 |
| EAN | 4251269322600 |
| Package quantity | 1 |
| Mounting options | Fasten with locknut |
| For max. no. of cables | 4 |
| Max. cable diameter | 17 mm |
| Mounting height | 23 mm |
| Cut-out size, metric | M63 |
| Cut-out size, round | 63.4 mm |
| Thread | M63 × 1,5 |
| Thread length | 14 mm |
| Screw material | Stainless steel (V2A) |
| Suitable for grommets | 4 x KT small, 4 x EMC-KT small |

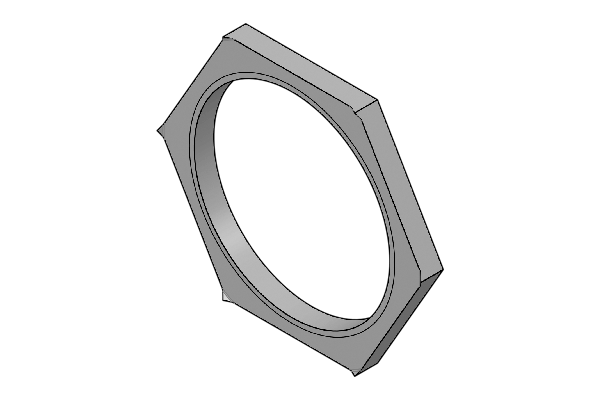

| Part No. | 99558 |
| EAN | 4251269322624 |
| Package quantity | 1 |
| Mounting options | Fasten with locknut |
| Height | 7 mm |
| Cut-out size, metric | M63 |
| Thread | M63 × 1,5 |
| Part No. | 99556 |
| EAN | 4251269322648 |
| Package quantity | 5 |
| Mounting options | Fasten with locknut |
| Height | 2.5 mm |
| External diameter | 70 mm |
| Cut-out size, metric | M63 |
| Thread | M63 × 1,5 |
