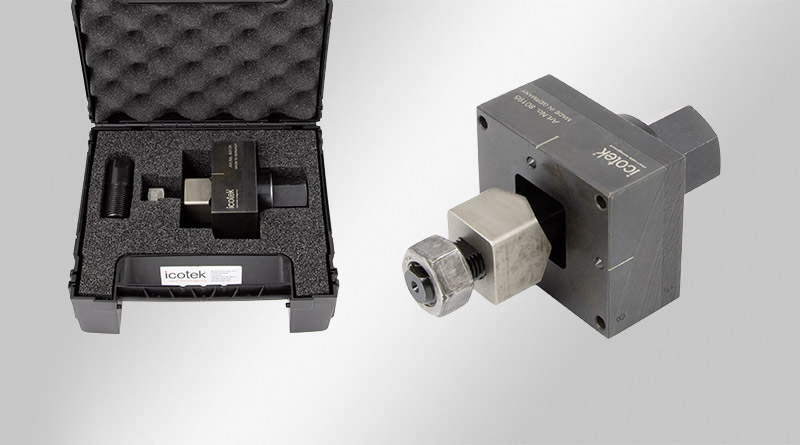

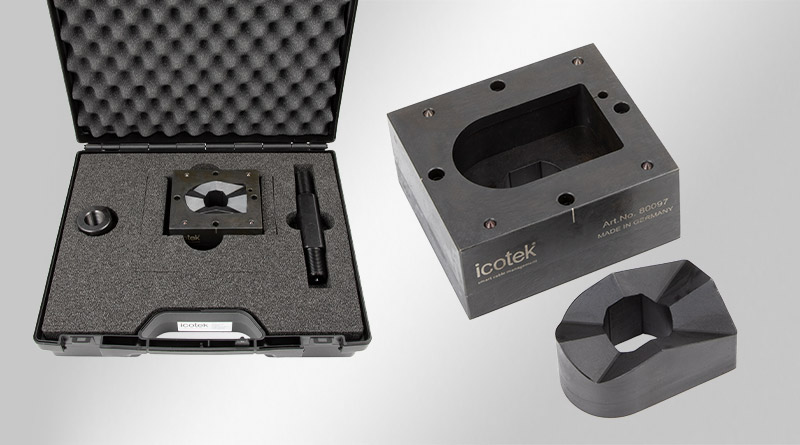

These punches can be used to punch the special cutout shapes for the CONFiX™ bulkhead fittings.
For max. 2 mm stainless steel (V2A versions), sheet steel, aluminium and plastic.
The punches are suitable for the hand hydraulic punch driver and the hydraulic foot pump. For the FWS-A 50 / FWS-B 48 punches, we only recommend the hydraulic foot pump.
Scope of delivery:
| Material | Steel, hardened and burnished |
| Part No. | 80095 |
| EAN | 4251269333316 |
| Package quantity | 1 |
| Number of centre punches | 3 |
| Compatible with CONFiX™ FWS | FWS-A 16, FWS-A 20, FWS B11, FWS-B 16 |
| Thread UNF | 19 mm |
| Punching material | Plastic, Mild steel (St) |
| Max. wall thickness | 2 mm |
| Part No. | 80195 |
| EAN | 4251269333354 |
| Package quantity | 1 |
| Number of centre punches | 3 |
| Compatible with CONFiX™ FWS | FWS-A 16, FWS-A 20, FWS B11, FWS-B 16 |
| Thread UNF | 19 mm |
| Punching material | Stainless steel (V2A) |
| Max. wall thickness | 2 mm |
| Part No. | 80096 |
| EAN | 4251269333323 |
| Package quantity | 1 |
| Number of centre punches | 3 |
| Compatible with CONFiX™ FWS | FWS-A 25, FWS-B 21 |
| Thread UNF | 19 mm |
| Punching material | Plastic, Mild steel (St) |
| Max. wall thickness | 2 mm |
| Part No. | 80196 |
| EAN | 4251269333361 |
| Package quantity | 1 |
| Number of centre punches | 3 |
| Compatible with CONFiX™ FWS | FWS-A 25, FWS-B 21 |
| Thread UNF | 19 mm |
| Punching material | Stainless steel (V2A) |
| Max. wall thickness | 2 mm |
| Part No. | 80097 |
| EAN | 4251269333330 |
| Package quantity | 1 |
| Number of centre punches | 4 |
| Compatible with CONFiX™ FWS | FWS-A 32, FWS-B 29 |
| Thread UNF | 19 mm |
| Punching material | Plastic, Mild steel (St) |
| Max. wall thickness | 2 mm |
| Part No. | 80197 |
| EAN | 4251269333378 |
| Package quantity | 1 |
| Number of centre punches | 4 |
| Compatible with CONFiX™ FWS | FWS-A 32, FWS-B 29 |
| Thread UNF | 19 mm |
| Punching material | Stainless steel (V2A) |
| Max. wall thickness | 2 mm |
| Part No. | 80098 |
| EAN | 4251269333347 |
| Package quantity | 1 |
| Number of centre punches | 4 |
| Compatible with CONFiX™ FWS | FWS-A 40, FWS-B 36 |
| Thread UNF | 19 mm |
| Punching material | Plastic, Mild steel (St) |
| Max. wall thickness | 2 mm |
| Part No. | 80198 |
| EAN | 4251269333385 |
| Package quantity | 1 |
| Number of centre punches | 4 |
| Compatible with CONFiX™ FWS | FWS-A 40, FWS-B 36 |
| Thread UNF | 19 mm |
| Punching material | Stainless steel (V2A) |
| Max. wall thickness | 2 mm |
| Part No. | 80099 |
| EAN | 4251269333255 |
| Package quantity | 1 |
| Number of centre punches | 4 |
| Compatible with CONFiX™ FWS | FWS-A 50, FWS-B 48 |
| Thread UNF | 19 mm |
| Punching material | Plastic, Mild steel (St) |
| Max. wall thickness | 2 mm |
| Part No. | 80199 |
| EAN | 4251269333262 |
| Package quantity | 1 |
| Number of centre punches | 4 |
| Compatible with CONFiX™ FWS | FWS-A 50, FWS-B 48 |
| Thread UNF | 19 mm |
| Punching material | Stainless steel (V2A) |
| Max. wall thickness | 2 mm |
Convince yourself of the simple and time-saving assembly of our products.
Watch the assembly video!
