DIN-RC 1
| Part No. | 80189 |
| EAN | 4251269324345 |
| Package quantity | 1 |
available
-
Products
»
Hydraulic punch drivers & DIN rail cutters
»

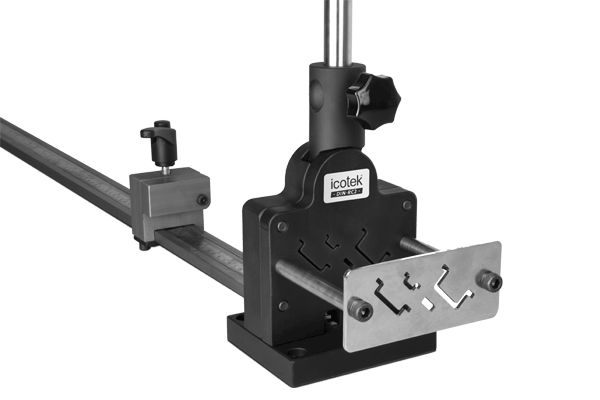

DIN-RC rail cutter
DIN-RC rail cutter
for top hat DIN rails & bus bars, with length stop 1000 mm
The DIN-RC cutter cuts various DIN rails with little effort and accurately. The cut is clean and free of burrs; there is no waste.
The length stop with guiding device ensures that nothing slips while cutting and that the cut is always 90° at an exact angle. Thanks to the optimal power transmission of the cutting device, only little effort is required.
The DIN-RC 1 is suitable for cutting:
- DIN top hat rails 35 x 7.5 mm
- DIN top hat rails 35 x 15 mm
The DIN-RC 2 is suitable for cutting:
- DIN top hat rails 35 x 7.5 mm
- DIN top hat rails 35 x 15 mm
- DIN top hat rails 15 x 5.5 mm
- Bus bars 10 x 3 mm
Not suitable for stainless steel rails!
Advantages & benefits
- Cuts the most common DIN top hat rails 35 x 7.5 mm, 35 x 15 mm and 15 x 5.5 mm as well as bus bars 10 x 3 mm
- Exact 90° cuts
- Burr-free cuts
- With length stop 1000 mm and guiding device
Product types & sizes
DIN-RC 2
| Part No. | 80190 |
| EAN | 4251269323942 |
| Package quantity | 1 |
available
You haven't found anything suitable yet?
Try the ProductFinderProduct video
Convince yourself of the simple and time-saving use of our products.
Watch the product video!
DIN-RC 1: 0:00 - 0:52
DIN-RC 2: 0:53 - 1:37
