MF-A49
| Part No. | 36056 |
| EAN | 4251269302022 |
| Package quantity | 10 |
| Length | 80 mm |
| Width | 20 mm |
| Height | 49 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 7 mm |
-
Products
»
Enclosure and control panel accessories
»
MF mounting rail supports
MF mounting rail supports
for 35 mm top hat DIN rails and 10 × 3 mm bus bars
There are 4 models of supports for mounting bus bars 10 × 3 mm or 35 mm top hat DIN rails.
Various supports are available to provide solutions for different conditions.

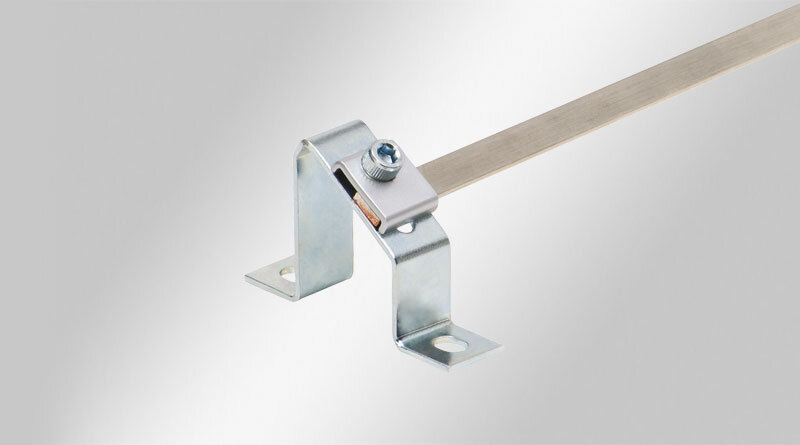

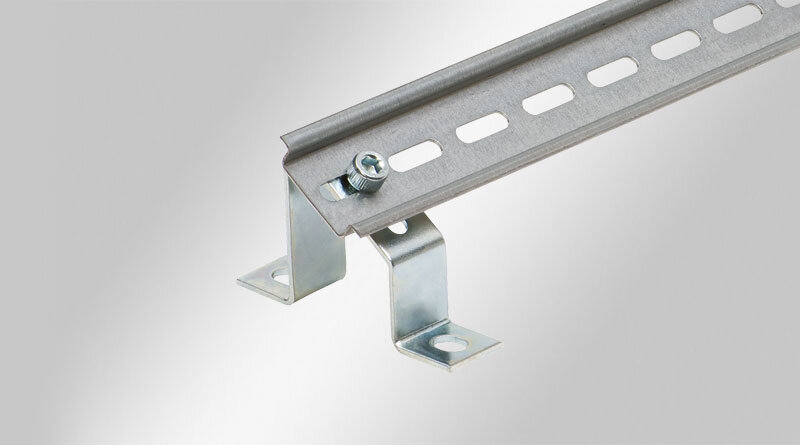

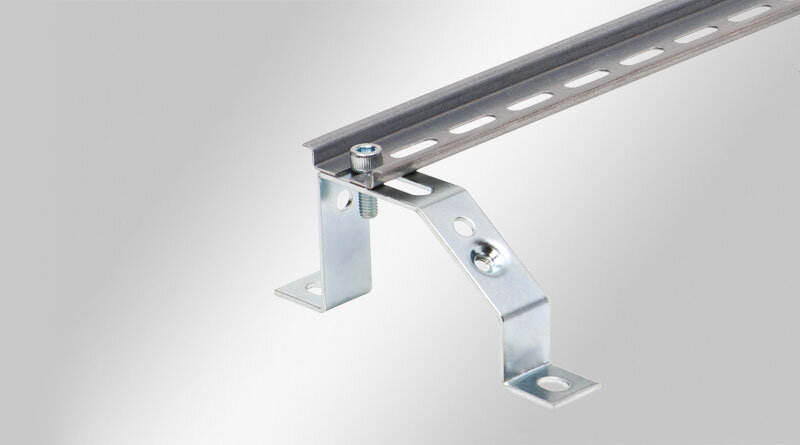

A mounting clip is used for fastening the bus bar to the supports. The support has M6 female screw threads to affix the mounting clip of the DIN rail with a M6 screw.
Specifications
| Material | Mild steel, galvanically zinc plated |
Advantages & benefits
- Wide variety of supports with different sizes and designs
- Simple assembly of 35 mm DIN rails and 10 × 3 mm bus bars
- Support type D provides possibility to affix two 35 mm DIN rails
Product types & sizes

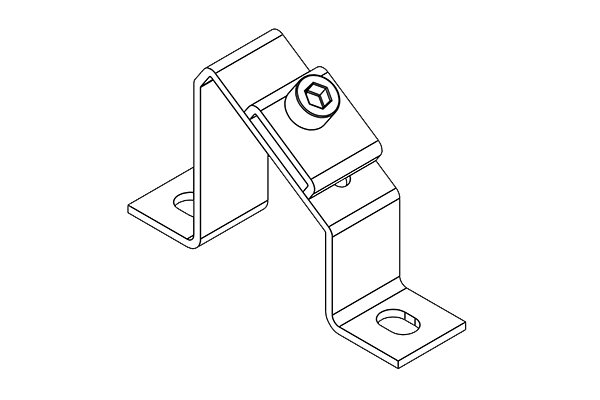

MF-A49 + Clip
| Part No. | 36058 |
| EAN | 4251269302039 |
| Package quantity | 10 |
| Length | 80 mm |
| Width | 20 mm |
| Height | 49 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 7 mm |

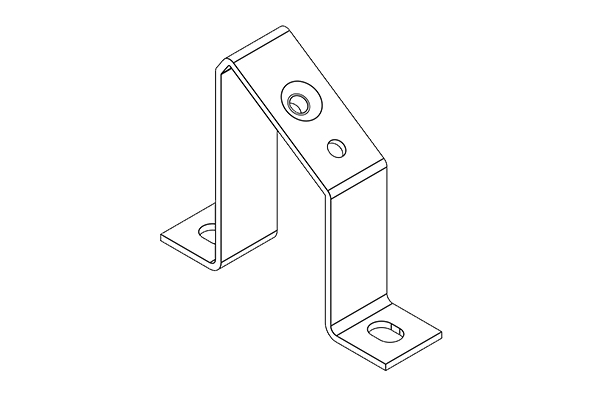

MF-A68
| Part No. | 36064 |
| EAN | 4251269302046 |
| Package quantity | 10 |
| Length | 80 mm |
| Width | 20 mm |
| Height | 68 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 7 mm |

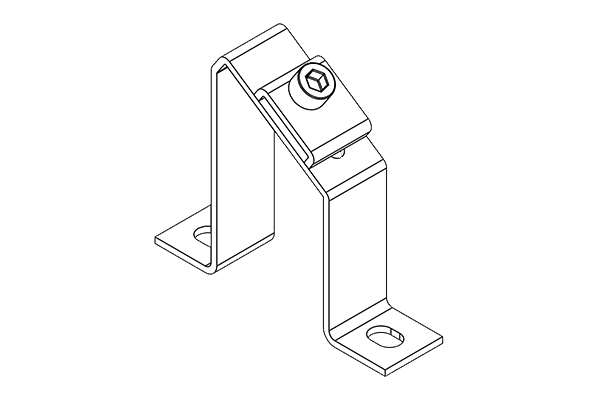

MF-A68 + Clip
| Part No. | 36066 |
| EAN | 4251269302053 |
| Package quantity | 10 |
| Length | 80 mm |
| Width | 20 mm |
| Height | 68 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 7 mm |

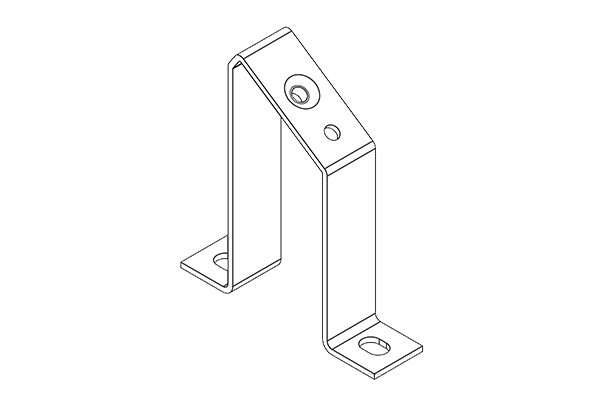

MF-A88
| Part No. | 36072 |
| EAN | 4251269302060 |
| Package quantity | 10 |
| Length | 80 mm |
| Width | 20 mm |
| Height | 88 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 7 mm |

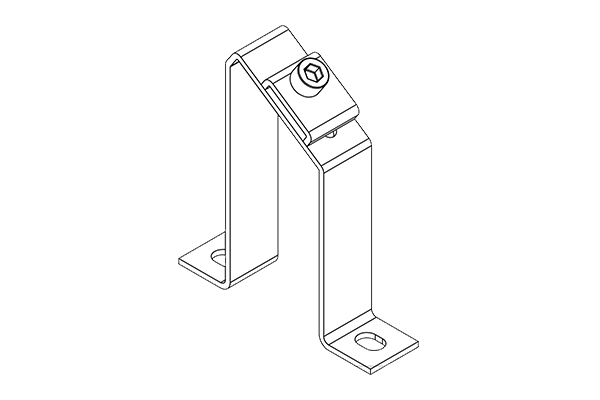

MF-A88 + Clip
| Part No. | 36074 |
| EAN | 4251269302077 |
| Package quantity | 10 |
| Length | 80 mm |
| Width | 20 mm |
| Height | 88 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 7 mm |

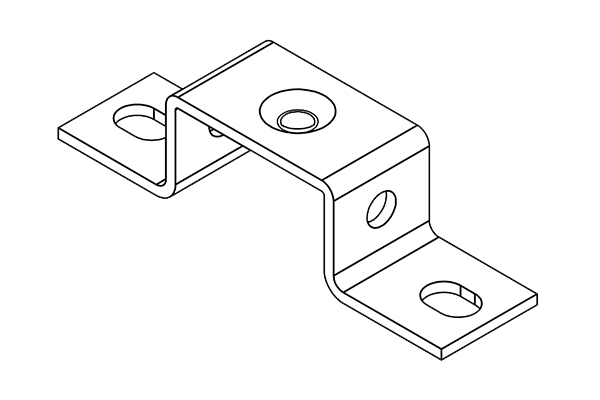

MF-B20
| Part No. | 36000 |
| EAN | 4251269301889 |
| Package quantity | 10 |
| Length | 80 mm |
| Width | 20 mm |
| Height | 20 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 7 mm |

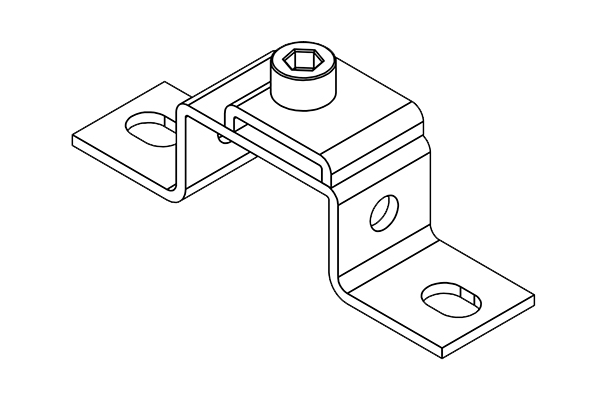

MF-B20 + Clip
| Part No. | 36002 |
| EAN | 4251269301896 |
| Package quantity | 10 |
| Length | 80 mm |
| Width | 20 mm |
| Height | 20 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 7 mm |

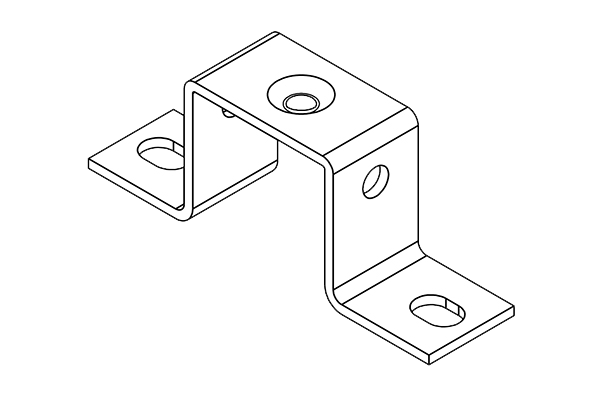

MF-B30
| Part No. | 36008 |
| EAN | 4251269301902 |
| Package quantity | 10 |
| Length | 80 mm |
| Width | 20 mm |
| Height | 30 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 7 mm |

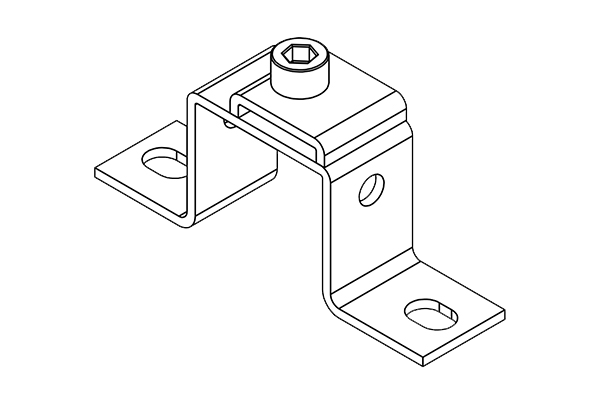

MF-B30 + Clip
| Part No. | 36010 |
| EAN | 4251269301919 |
| Package quantity | 10 |
| Length | 80 mm |
| Width | 20 mm |
| Height | 30 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 7 mm |

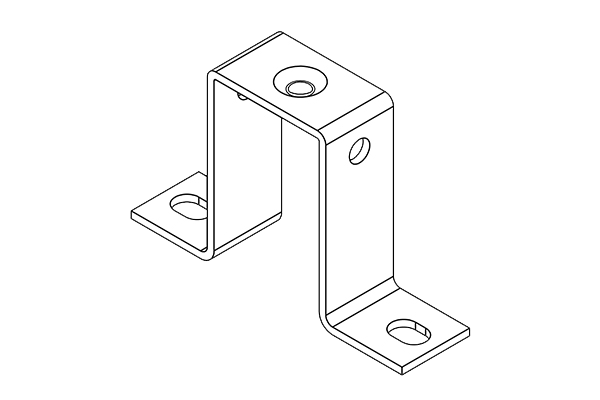

MF-B50
| Part No. | 36016 |
| EAN | 4251269301926 |
| Package quantity | 10 |
| Length | 80 mm |
| Width | 20 mm |
| Height | 50 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 7 mm |

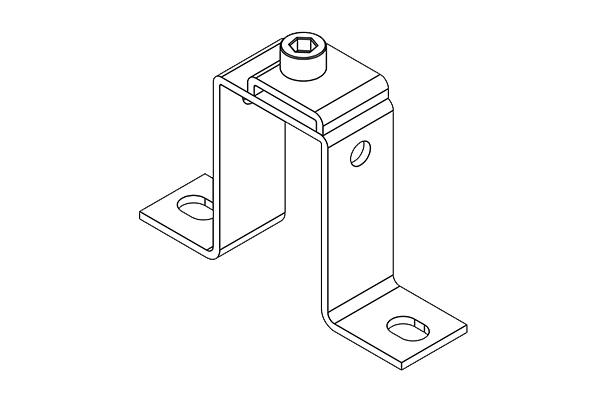

MF-B50 + Clip
| Part No. | 36018 |
| EAN | 4251269301933 |
| Package quantity | 10 |
| Length | 80 mm |
| Width | 20 mm |
| Height | 50 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 7 mm |

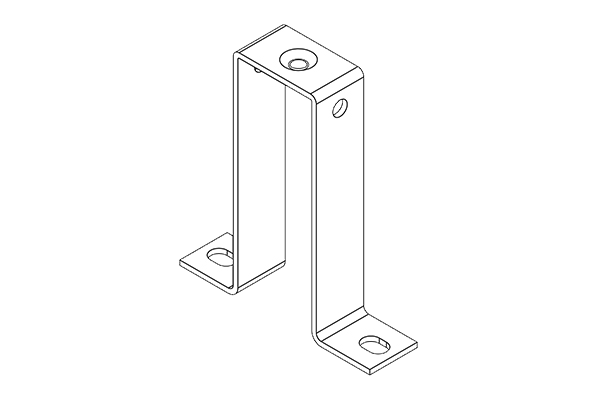

MF-B90
| Part No. | 36024 |
| EAN | 4251269301940 |
| Package quantity | 10 |
| Length | 80 mm |
| Width | 20 mm |
| Height | 90 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 7 mm |

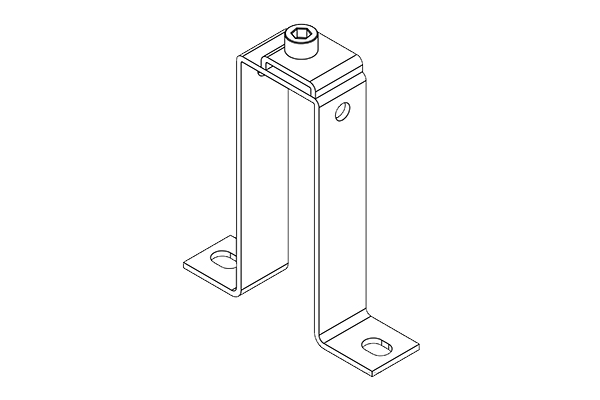

MF-B90 + Clip
| Part No. | 36026 |
| EAN | 4251269301957 |
| Package quantity | 10 |
| Length | 80 mm |
| Width | 20 mm |
| Height | 90 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 7 mm |

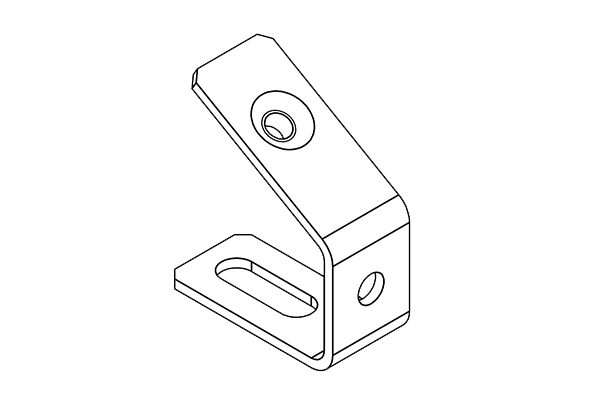

MF-C40
| Part No. | 36032 |
| EAN | 4251269301964 |
| Package quantity | 10 |
| Length | 40 mm |
| Width | 18 mm |
| Height | 40 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 7 mm |

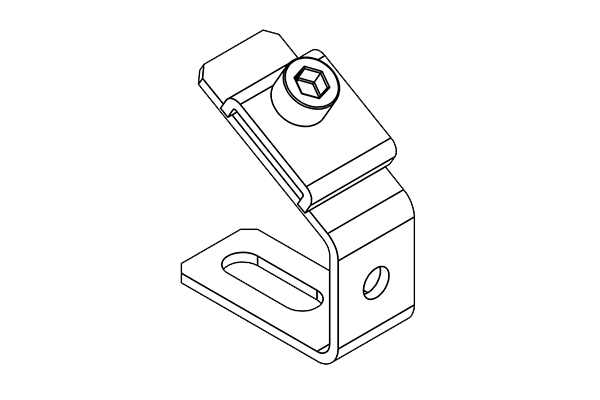

MF-C40 + Clip
| Part No. | 36034 |
| EAN | 4251269301971 |
| Package quantity | 10 |
| Length | 40 mm |
| Width | 18 mm |
| Height | 40 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 7 mm |

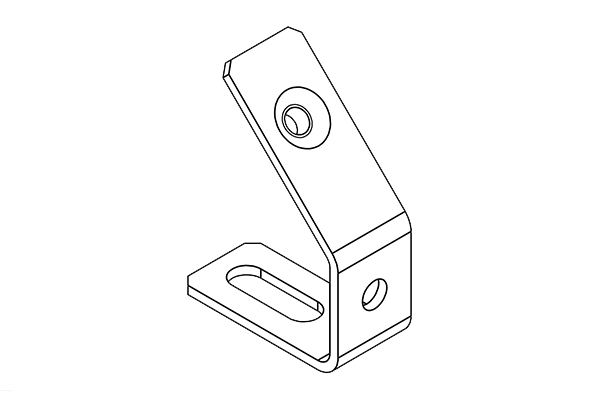

MF-C53
| Part No. | 36040 |
| EAN | 4251269301988 |
| Package quantity | 10 |
| Length | 40 mm |
| Width | 18 mm |
| Height | 53 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 7 mm |

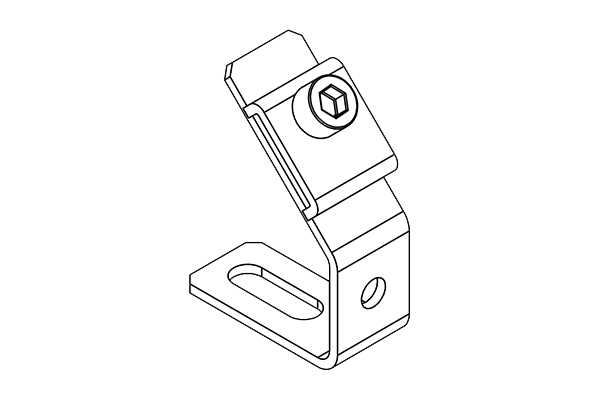

MF-C53 + Clip
| Part No. | 36042 |
| EAN | 4251269301995 |
| Package quantity | 10 |
| Length | 40 mm |
| Width | 18 mm |
| Height | 53 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 7 mm |

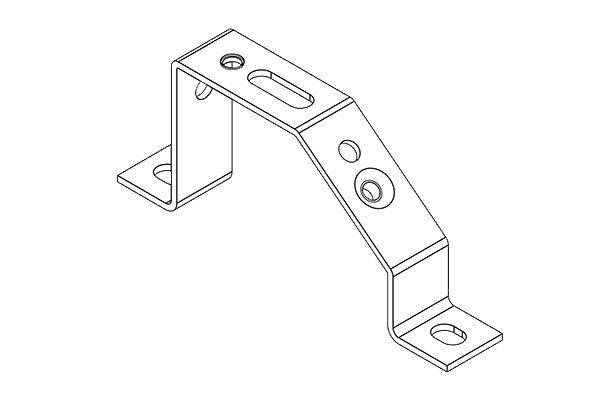

MF-D49
| Part No. | 36048 |
| EAN | 4251269302008 |
| Package quantity | 10 |
| Length | 120 mm |
| Width | 20 mm |
| Height | 49 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 7 mm |

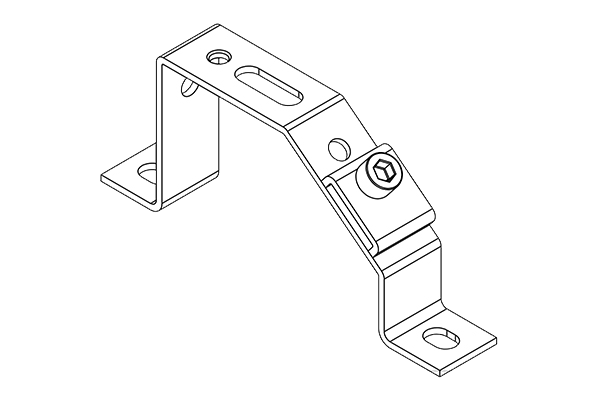

MF-D49 + Clip
| Part No. | 36050 |
| EAN | 4251269302015 |
| Package quantity | 10 |
| Length | 120 mm |
| Width | 20 mm |
| Height | 49 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 7 mm |
You haven't found anything suitable yet?
Try the ProductFinderSuitable for:
You might also be interested in the following products

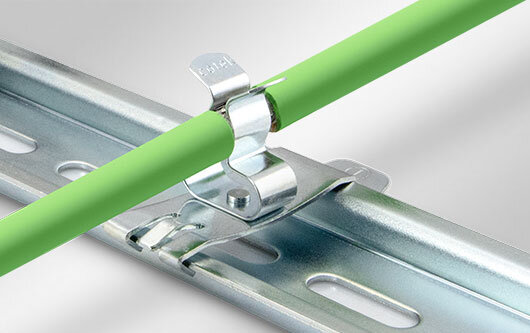

Shield clamps for 35 mm top hat DIN rails
