Door operated switch, 600 mm
| Part No. | 81132 |
| EAN | 4251269333071 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Length | 85.2 mm |
| Height | 24 mm |
| Width | 63.2 mm |
| Length connecting cable | 600 mm |
| Rated current | 2,5 A |
| Colour | black |
-
Products
»
ALLIOLiGHT lighting systems
»
TPS Door operated switch
TPS Door operated switch
suitable for ALLIO and ALU-LINE series
The TPS door operated switch was specially developed for use in control panels and 19" server racks. This switch makes it possible to monitor the status of the cabinet door and automatically switch the cabinet luminaires on or off when the door is opened or closed. Thus the service life of the luminaires can be extended.

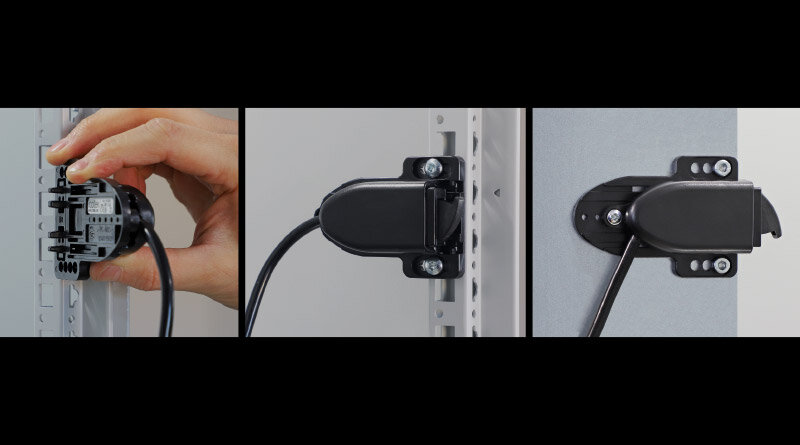

The door position switch is simply mounted via screws. Various adapters serve as mounting aids on numerous frame profiles from different cabinet manufacturers.

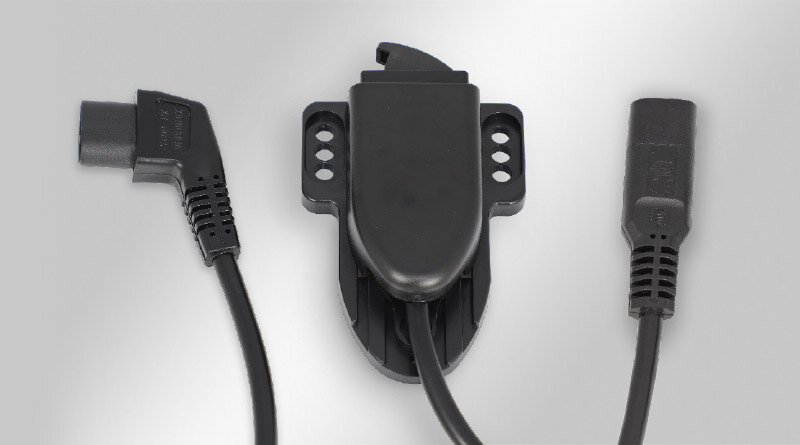

The TPS is available with two cable lengths (0.6 m or 1.5 m) and C18 connectors (angled or straight) for the ALU-LINE and ALLIO series.
UL Certificates:
Specifications
| IP rating (EN 60529) | IP20 |
| Operating temperature | -20 C° to 50 C° |
| Material | Polyamide |
| Mounting options | Screw type mounting |
Advantages & benefits
- Easy adjustment
- Flat, space-saving design
- Reliable, direct switching
- Integrated cable routing
- Assembly on surfaces and profiles of various manufacturers
- Snap-on assembly aid on profiles
- Also suitable for exterior doors
- With connecting cable and straight or angled connector

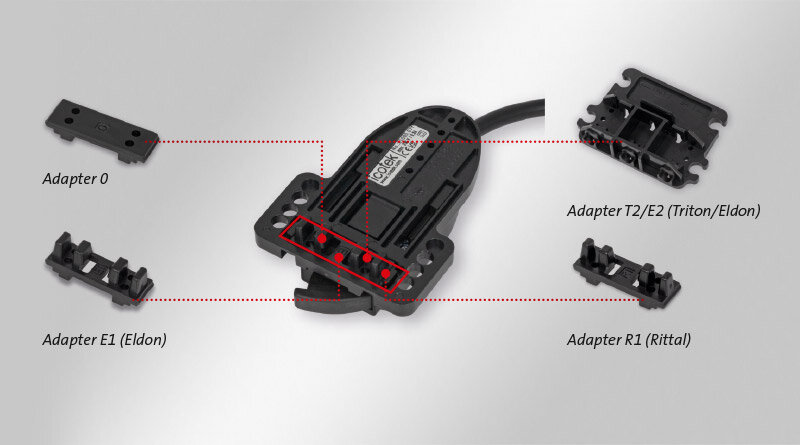

- Adapters for enclosures from Rittal, Hofmann, Eldon and Triton as well as for assembly on surfaces are included in the scope of delivery
Product types & sizes

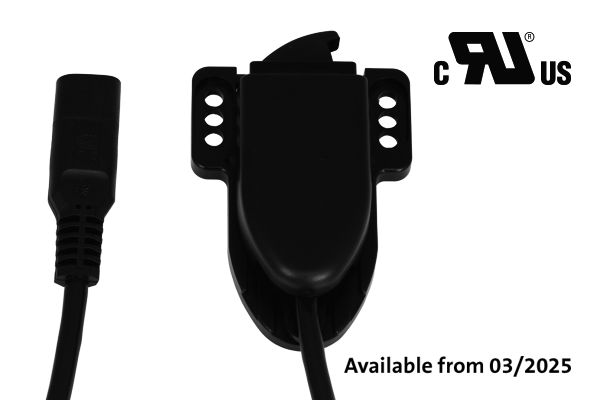

Door operated switch (UL/CSA), 600 mm
| Part No. | 81232 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| UL Certificate | UL-US-2442933-0 / UL-CA-2432446-0 |
| Length | 85.2 mm |
| Height | 24 mm |
| Width | 63.2 mm |
| Length connecting cable | 600 mm |
| Operating voltage | 250 V AC, 25 W |
| Rated current | 2,5 A |
| Colour | black |
Door operated switch, 600 mm
| Part No. | 81334 |
| EAN | 4251269333002 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Length | 85.2 mm |
| Height | 24 mm |
| Width | 63.2 mm |
| Length connecting cable | 600 mm |
| Rated current | 2,5 A |
| Colour | black |
Door operated switch, 1500 mm
| Part No. | 81133 |
| EAN | 4251269333088 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Length | 85.2 mm |
| Height | 24 mm |
| Width | 63.2 mm |
| Length connecting cable | 1,500 mm |
| Rated current | 2,5 A |
| Colour | black |
Door operated switch (UL/CSA), 1500 mm
| Part No. | 81233 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| UL Certificate | UL-US-2442933-0 / UL-CA-2432446-0 |
| Length | 85.2 mm |
| Height | 24 mm |
| Width | 63.2 mm |
| Length connecting cable | 1,500 mm |
| Operating voltage | 250 V AC, 25 W |
| Rated current | 2,5 A |
| Colour | black |
Door operated switch, 1500 mm
| Part No. | 81333 |
| EAN | 4251269332999 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Length | 85.2 mm |
| Height | 24 mm |
| Width | 63.2 mm |
| Length connecting cable | 1,500 mm |
| Rated current | 2,5 A |
| Colour | black |
