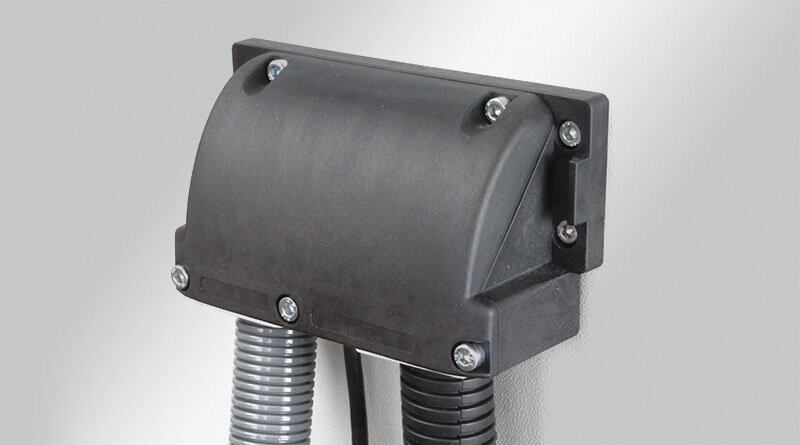

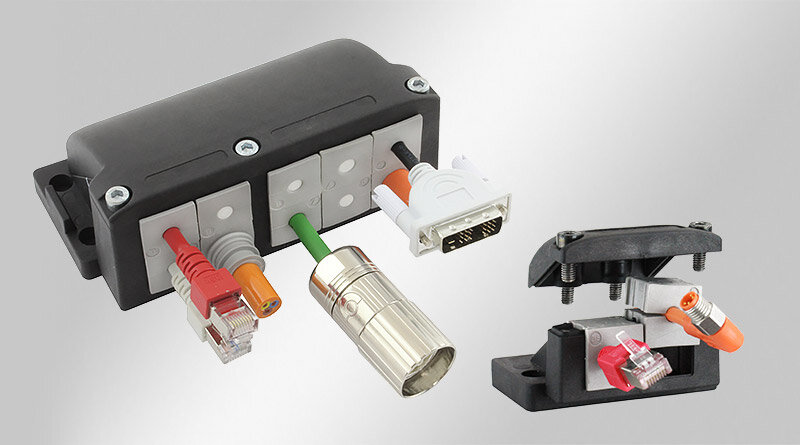

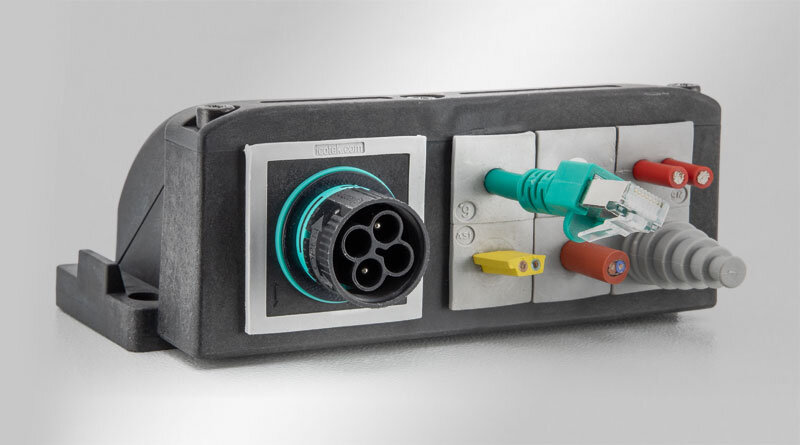

The multi cable transit frames KEL-FG are suited for installation, sealing and strain relief of cables with connectors and conduits at an angle of 90° to the panel, enclosure or machine wall.

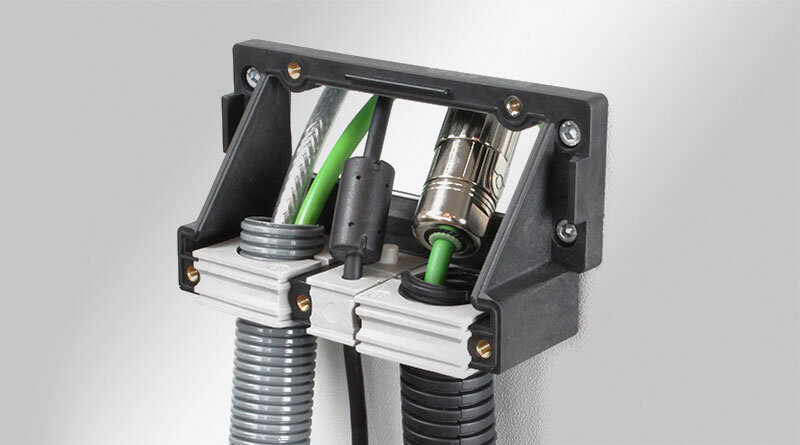

The KEL-FG-A frame matches exactly the cut-out dimensions for 24-pin standard industrial connectors. For tool-less assembly / disassembly of the KEL-FG-A the snap mounting frame KEL-SNAP 24 can be used. The KEL-FG-B is suited for cut-outs 36 × 46 mm.

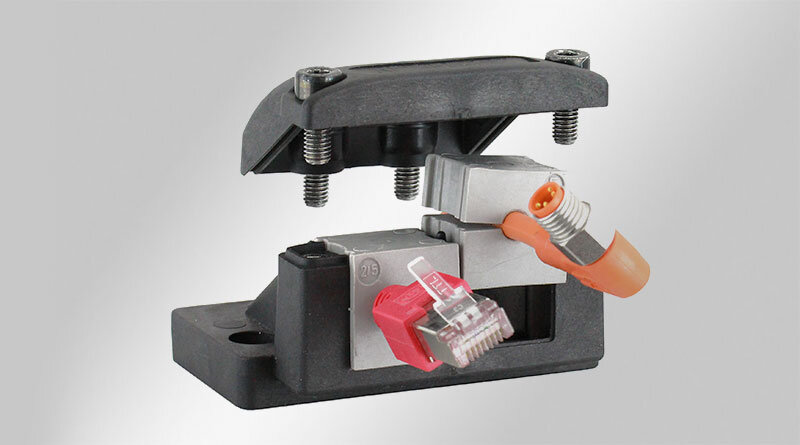

The single-row versions KEL-FG-E are particularly suited for flat connectors. The small frames are ideal for applications with limited space.
A flat rubber gasket is included in the shipment.
This product is available in different versions: With steel screws or stainless steel screws. It is also possible to integrate threaded bushings. Please ask us about your desired variant.
The version with threaded bushings enables the cable entry frame to be screwed onto the housing from the inside out. This protects against vandalism and tampering with the housing from the outside.
| IP rating (EN 60529) | IP54 |
| UL Type (UL 50E) | UL Type 12 |
| Flame class | UL94-V0, self-extinguishing |
| Operating temperature | -40 C° to 140 C° |
| Material | Polyamide |
| Mounting options | Screw type mounting, Snap-in with KEL-SNAP |
| Properties | vibration proof, silicone free, anti-corrosive (V2A versions), halogen free |
| Part No. | 42320 |
| EAN | 4251269308437 |
| Package quantity | 1 |
| Mounting options | Screw type mounting, Snap-in with KEL-SNAP |
| For max. no. of cables | 40 |
| Max. cable diameter | 17 mm |
| Length | 147 mm |
| Width | 80 mm |
| Height | 57.5 mm |
| Mounting height | 57.5 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 10 x KT small |
| Part No. | 42320.200 |
| EAN | 4251269308444 |
| Package quantity | 1 |
| Mounting options | Screw type mounting, Snap-in with KEL-SNAP |
| For max. no. of cables | 40 |
| Max. cable diameter | 17 mm |
| Length | 147 mm |
| Width | 80 mm |
| Height | 57.5 mm |
| Mounting height | 57.5 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
| Screw material | Stainless steel (V2A) |
| Suitable for grommets | 10 x KT small |
| Part No. | 42322 |
| EAN | 4251269308451 |
| Package quantity | 1 |
| Mounting options | Screw type mounting, Snap-in with KEL-SNAP |
| For max. no. of cables | 25 |
| Max. cable diameter | 35 mm |
| Length | 147 mm |
| Width | 80 mm |
| Height | 57.5 mm |
| Mounting height | 57.5 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 6 x KT small, 1 x KT large |
| Part No. | 42322.200 |
| EAN | 4251269308468 |
| Package quantity | 1 |
| Mounting options | Screw type mounting, Snap-in with KEL-SNAP |
| For max. no. of cables | 25 |
| Max. cable diameter | 35 mm |
| Length | 147 mm |
| Width | 80 mm |
| Height | 57.5 mm |
| Mounting height | 57.5 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
| Screw material | Stainless steel (V2A) |
| Suitable for grommets | 6 x KT small, 1 x KT large |
| Part No. | 42324 |
| EAN | 4251269308475 |
| Package quantity | 1 |
| Mounting options | Screw type mounting, Snap-in with KEL-SNAP |
| For max. no. of cables | 10 |
| Max. cable diameter | 35 mm |
| Length | 147 mm |
| Width | 80 mm |
| Height | 57.5 mm |
| Mounting height | 57.5 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 2 x KT small, 2 x KT large |
| Part No. | 42324.200 |
| EAN | 4251269308482 |
| Package quantity | 1 |
| Mounting options | Screw type mounting, Snap-in with KEL-SNAP |
| For max. no. of cables | 10 |
| Max. cable diameter | 35 mm |
| Length | 147 mm |
| Width | 80 mm |
| Height | 57.5 mm |
| Mounting height | 57.5 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
| Screw material | Stainless steel (V2A) |
| Suitable for grommets | 2 x KT small, 2 x KT large |
| Part No. | 42246 |
| EAN | 4251269332647 |
| Package quantity | 1 |
| Length | 145 mm |
| Width | 56 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 6 mm |
| Color | black |
| Suitable for cable entry systems: | KEL 24, KEL-U 24, KEL-ER 24, KEL-QUICK 24, KEL-FG-A, KEL-FG-ER A |
| Part No. | 42330 |
| EAN | 4251269308499 |
| Package quantity | 1 |
| Mounting options | Screw type mounting, Snap-in with KEL-SNAP |
| For max. no. of cables | 16 |
| Max. cable diameter | 17 mm |
| Length | 79.8 mm |
| Width | 80 mm |
| Height | 57.5 mm |
| Mounting height | 57.5 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 4 x KT small |
| Part No. | 42330.200 |
| EAN | 4251269308505 |
| Package quantity | 1 |
| Mounting options | Screw type mounting, Snap-in with KEL-SNAP |
| For max. no. of cables | 16 |
| Max. cable diameter | 17 mm |
| Length | 79.8 mm |
| Width | 80 mm |
| Height | 57.5 mm |
| Mounting height | 57.5 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
| Screw material | Stainless steel (V2A) |
| Suitable for grommets | 4 x KT small |
| Part No. | 42332 |
| EAN | 4251269308512 |
| Package quantity | 1 |
| Mounting options | Screw type mounting, Snap-in with KEL-SNAP |
| For max. no. of cables | 1 |
| Max. cable diameter | 35 mm |
| Length | 79.8 mm |
| Width | 80 mm |
| Height | 57.5 mm |
| Mounting height | 57.5 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 1 x KT large |
| Part No. | 42332.200 |
| EAN | 4251269308529 |
| Package quantity | 1 |
| Mounting options | Screw type mounting, Snap-in with KEL-SNAP |
| For max. no. of cables | 1 |
| Max. cable diameter | 35 mm |
| Length | 79.8 mm |
| Width | 80 mm |
| Height | 57.5 mm |
| Mounting height | 57.5 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
| Screw material | Stainless steel (V2A) |
| Suitable for grommets | 1 x KT large |
| Part No. | 42331 |
| EAN | 4251269332715 |
| Package quantity | 1 |
| Length | 72.85 mm |
| Width | 55.6 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| Cut-out size | 46 × 46 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 9.5 mm |
| Color | black |
| Suitable for cable entry systems: | KEL-FG-B, KEL-FG-ER B |
| Part No. | 42336 |
| EAN | 4251269316623 |
| Package quantity | 5 |
| Mounting options | Screw type mounting, Snap-in with KEL-SNAP |
| For max. no. of cables | 20 |
| Max. cable diameter | 17 mm |
| Length | 147 mm |
| Width | 53 mm |
| Height | 38 mm |
| Mounting height | 38 mm |
| Cut-out size | 112 × 24 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 5.5 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 5 x KT small |
| Part No. | 42336.200 |
| EAN | 4251269316647 |
| Package quantity | 5 |
| Mounting options | Screw type mounting, Snap-in with KEL-SNAP |
| For max. no. of cables | 20 |
| Max. cable diameter | 17 mm |
| Length | 147 mm |
| Width | 53 mm |
| Height | 38 mm |
| Mounting height | 38 mm |
| Cut-out size | 112 × 24 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 5.5 mm |
| Screw material | Stainless steel (V2A) |
| Suitable for grommets | 5 x KT small |
| Part No. | 42334 |
| EAN | 4251269316616 |
| Package quantity | 5 |
| Mounting options | Screw type mounting, Snap-in with KEL-SNAP |
| For max. no. of cables | 12 |
| Max. cable diameter | 17 mm |
| Length | 100 mm |
| Width | 53 mm |
| Height | 38 mm |
| Mounting height | 38 mm |
| Cut-out size | 65 × 24 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 5.5 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 3 x KT small |
| Part No. | 42334.200 |
| EAN | 4251269316630 |
| Package quantity | 5 |
| Mounting options | Screw type mounting, Snap-in with KEL-SNAP |
| For max. no. of cables | 12 |
| Max. cable diameter | 17 mm |
| Length | 100 mm |
| Width | 53 mm |
| Height | 38 mm |
| Mounting height | 38 mm |
| Cut-out size | 65 × 24 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 5.5 mm |
| Screw material | Stainless steel (V2A) |
| Suitable for grommets | 3 x KT small |
| Part No. | 42333 |
| EAN | 4251269317996 |
| Package quantity | 5 |
| Mounting options | Screw type mounting, Snap-in with KEL-SNAP |
| For max. no. of cables | 8 |
| Max. cable diameter | 17 mm |
| Length | 73 mm |
| Width | 53 mm |
| Height | 38 mm |
| Mounting height | 38 mm |
| Cut-out size | 43 × 24 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 5.5 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 2 x KT small |
| Part No. | 42333.200 |
| EAN | 4251269318009 |
| Package quantity | 5 |
| Mounting options | Screw type mounting, Snap-in with KEL-SNAP |
| For max. no. of cables | 8 |
| Max. cable diameter | 17 mm |
| Length | 73 mm |
| Width | 53 mm |
| Height | 38 mm |
| Mounting height | 38 mm |
| Cut-out size | 43 × 24 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 5.5 mm |
| Screw material | Stainless steel (V2A) |
| Suitable for grommets | 2 x KT small |
| Part No. | 42251 |
| EAN | 4251269332654 |
| Package quantity | 1 |
| Length | 147 mm |
| Width | 40 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| Cut-out size | 112 × 24 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 6 mm |
| Color | black |
| Suitable for cable entry systems: | KEL-E5, KEL-ER-E5, KEL-QUICK-E5, KEL-FG-E5, KEL-FG-ER E5, KEL-FL 4 |
| Part No. | 42197 |
| EAN | 4251269332623 |
| Package quantity | 1 |
| Length | 98 mm |
| Width | 40 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| Cut-out size | 65 × 24 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 6 mm |
| Color | black |
| Suitable for cable entry systems: | KEL-E3, KEL-ER-E3, KEL-QUICK-E3, KEL-FG-E3, KEL-FG-ER E3, KEL-FL 2 |
| Part No. | 42256 |
| EAN | 4251269332692 |
| Package quantity | 1 |
| Length | 72.8 mm |
| Width | 40 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| Cut-out size | 43 × 24 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 6 mm |
| Color | black |
| Suitable for cable entry systems: | KEL-E2, KEL-ER-E2, KEL-QUICK-E2, KEL-FG-E2, KEL-FG-ER E2, KEL-FL 1 |
Convince yourself of the simple and time-saving assembly of our products.
Watch the assembly video!
Always find the right size and the right cable grommets for your cable entry!
Toolless snap-in mounting frames for KEL, KEL-U and KEL-QUICK.
Split cable grommets for diameters of 1 to 17 and 13 - 35 mm. Suitable for KEL cable entry frames and KVT cable glands.
Split cable grommets for diameters of 1 to 17 and 13 - 35 mm. Suitable for KEL cable entry frames and KVT cable glands. Higher chemical resistance.
Split cable grommets for diameters of 1 to 8 mm as well as for special cables. Suitable for KEL cable entry frames and KVT cable glands.
Split cable grommets for diameters of 1 to 8 mm as well as for special cables. Suitable for KEL cable entry frames and KVT cable glands. Higher chemical resistance.
Split cable grommets for diameters 4 - 29 mm. Suitable for KEL cable entry frames and KVT cable glands.
Split cable grommets for diameters 4 - 29 mm. Suitable for KEL cable entry frames and KVT cable glands.
Flexible pyramid shaped cable grommet with multi range for various cable diameters 3 - 26 mm. Enhanced strain relief possible via cable ties.
Flexible pyramid shaped cable grommet with multi range for various cable diameters 3 - 26 mm. Enhanced strain relief possible via cable ties. Higher chemical resistance.
Flexible multi range cable grommets with peelable membrane rings for various cable diameters 4 - 28 mm.
Flexible multi range cable grommets for various cable diameters 2.5 - 33 mm.
Multi membrane cable grommets based on the KT grommets for routing of several standard cables with varying diameters.
Adapter grommets with inner thread based on KT cable grommets.
Blank adapter grommet based on KT grommets for custom interface solutions (e.g. screw mounted hybrid connectors).
Adapter grommet based on KT cable grommets for snap-in mounting of Keystone jacks.
Adapter grommet based on KT cable grommets for snap-in mounting of Keystone jacks.
Adapter grommet based on KT cable grommets for PushPull connection technology.
Adapter grommet based on KT cable grommets for square flanges with the dimensions 19.8 x 19.8 mm (M23).
EMC cable collectors with EMI shielding function for cable entry systems - with integrated strain relief.
EMC cable collectors with EMI shielding function for cable entry systems - for use with cable shield clamps PFS.
Rectangular & square knockout punches for heavy multi-pin industrial connectors and many icotek cable entry components.
Fire penetration seals for certified icotek BS cable entry components, approved for use in railway technology.
Modular gland plate system for mounting cable entry components in enclosure bases, roofs and divider panels. Suitable for enclosure base plate KDR-BMP.
Flange plates for mounting cable entry components on compact enclosures, junction boxes or bus enclosures by Rittal and Fibox.
With the distribution box, centrally routed cables (with and without connectors) can be distributed 360° in all desired directions.
KT grommet based bulkhead for 90° preassembled cable transit for cable diameters up to 35 mm and a large bending radius (r max. = 150 mm).
KT grommet based multi cable transit for standard cut-outs of heavy industrial connectors. Available as single or double row version.
KT grommet based cable entry frames for tool-less assembly. Suitable for standard cut-outs of heavy industrial connectors.
Classic KT grommet based multi cable transit for standard cut-outs of heavy industrial connectors. Also available as multi-row versions.
KT grommet based split cable gland for preassembled cables with metric thread sizes M20 / M25 / M32 / M40 / M50 / M63.
KT grommet based split cable gland for tool-less snap-in mounting on metric cut-outs M32 / M40 / M63.
Expanding rivets for mounting of KEL-BES and KEL-BES-S brush plates.
Strain relief and cable routing plates for snap-on assembly on TS35 rails and C section rails C30.
EMC cable clamp assembly with shield clamps for EMI shielding of up to 12 lines.
EMC cable clamps for direct mounting via screws, e.g. on metal sheets.
Grommet based cable entry with IFPS fire penetration seals acc. to EN 45545-3 for standard cut-outs of heavy industrial connectors. Available as single or double row version.
