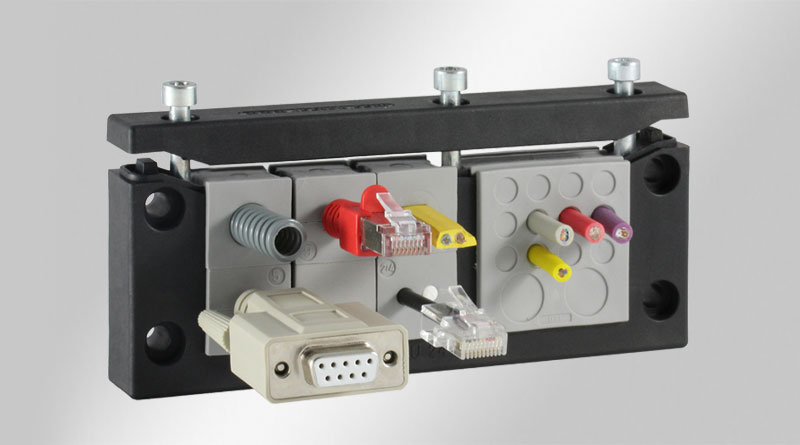

Split multi cable transit system for routing cables with connectors providing an IP54 / UL Type 12 rating. Routing, sealing and providing strain relief for cable diameters from 1 to 35 mm.
The multi cable transit system is easy to install. Cable grommets are placed into compartments and are securely fixed to the frame during assembly.
The KEL-U CR frames match exactly the cut-out dimensions for 10-, 16- and 24-pin standard industrial connectors. Either a cut-out of 36 mm or 46 mm in height can be chosen depending on the cables being routed. The KEL-U-B CR frame matches the cut-out dimensions of 46 × 46 mm measuring instruments.
The single-row versions KEL-E CR are particularly suited for flat connectors. The small frames are ideal for applications with limited space.
A flat rubber gasket is included in the shipment.
The products with article ending .600 are tested and certified for particle emission for cleanroom class 1 according to ISO 14644-1. The materials used for these products have been tested and certified for outgassing according to VOC/SVOC (ISO 14644-8; ISO 16000-6,-9,-11,-25, VDI 2083 sheet 17).
The products with the article ending .601 are tested and certified for particle emission for cleanroom class 1 according to ISO 14644-1.
| IP rating (EN 60529) | IP54 |
| UL Type (UL 50E) | UL Type 12 |
| Flame class | UL94-V0, self-extinguishing |
| Operating temperature | -40 C° to 140 C° |
| Material | Polyamide |
| Mounting options | Snap-in with KEL-SNAP, Screw type mounting |
| Properties | vibration proof, UV-resistant, silicone free, anti-corrosive (V2A versions), halogen free |
| Part No. | 54241.601 |
| EAN | 4251269326134 |
| Package quantity | 5 |
| Mounting options | Snap-in with KEL-SNAP, Screw type mounting |
| For max. no. of cables | 40 |
| Max. cable diameter | 17 mm |
| Length | 147 mm |
| Width | 58 mm |
| Height | 17 mm |
| Mounting height | 17 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 10 x KT small |
| Part No. | 54241.600 |
| EAN | 4251269326035 |
| Package quantity | 5 |
| Mounting options | Snap-in with KEL-SNAP, Screw type mounting |
| For max. no. of cables | 40 |
| Max. cable diameter | 17 mm |
| Length | 147 mm |
| Width | 58 mm |
| Height | 17 mm |
| Mounting height | 17 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 10 x KT small |
| Part No. | 54247.601 |
| EAN | 4251269326158 |
| Package quantity | 5 |
| Mounting options | Snap-in with KEL-SNAP, Screw type mounting |
| For max. no. of cables | 25 |
| Max. cable diameter | 35 mm |
| Length | 147 mm |
| Width | 58 mm |
| Height | 17 mm |
| Mounting height | 17 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 6 x KT small, 1 x KT large |
| Part No. | 54247.600 |
| EAN | 4251269326059 |
| Package quantity | 5 |
| Mounting options | Snap-in with KEL-SNAP, Screw type mounting |
| For max. no. of cables | 25 |
| Max. cable diameter | 35 mm |
| Length | 147 mm |
| Width | 58 mm |
| Height | 17 mm |
| Mounting height | 17 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 6 x KT small, 1 x KT large |
| Part No. | 54244.601 |
| EAN | 4251269326141 |
| Package quantity | 5 |
| Mounting options | Snap-in with KEL-SNAP, Screw type mounting |
| For max. no. of cables | 6 |
| Max. cable diameter | 35 mm |
| Length | 147 mm |
| Width | 58 mm |
| Height | 17 mm |
| Mounting height | 17 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 2 x KT small, 2 x KT large |
| Part No. | 54244.600 |
| EAN | 4251269326042 |
| Package quantity | 5 |
| Mounting options | Snap-in with KEL-SNAP, Screw type mounting |
| For max. no. of cables | 6 |
| Max. cable diameter | 35 mm |
| Length | 147 mm |
| Width | 58 mm |
| Height | 17 mm |
| Mounting height | 17 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 2 x KT small, 2 x KT large |
| Part No. | 54168.601 |
| EAN | 4251269326080 |
| Package quantity | 5 |
| Mounting options | Snap-in with KEL-SNAP, Screw type mounting |
| For max. no. of cables | 32 |
| Max. cable diameter | 17 mm |
| Length | 120 mm |
| Width | 58 mm |
| Height | 17 mm |
| Mounting height | 17 mm |
| Cut-out size | 86 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 8 x KT small |
| Part No. | 54168.600 |
| EAN | 4251269325984 |
| Package quantity | 5 |
| Mounting options | Snap-in with KEL-SNAP, Screw type mounting |
| For max. no. of cables | 32 |
| Max. cable diameter | 17 mm |
| Length | 120 mm |
| Width | 58 mm |
| Height | 17 mm |
| Mounting height | 17 mm |
| Cut-out size | 86 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 8 x KT small |
| Part No. | 54165.601 |
| EAN | 4251269326073 |
| Package quantity | 5 |
| Mounting options | Snap-in with KEL-SNAP, Screw type mounting |
| For max. no. of cables | 17 |
| Max. cable diameter | 35 mm |
| Length | 120 mm |
| Width | 58 mm |
| Height | 17 mm |
| Mounting height | 17 mm |
| Cut-out size | 86 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 4 x KT small, 1 x KT large |
| Part No. | 54165.600 |
| EAN | 4251269325977 |
| Package quantity | 5 |
| Mounting options | Snap-in with KEL-SNAP, Screw type mounting |
| For max. no. of cables | 17 |
| Max. cable diameter | 35 mm |
| Length | 120 mm |
| Width | 58 mm |
| Height | 17 mm |
| Mounting height | 17 mm |
| Cut-out size | 86 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 4 x KT small, 1 x KT large |
| Part No. | 54162.601 |
| EAN | 4251269326066 |
| Package quantity | 5 |
| Mounting options | Snap-in with KEL-SNAP, Screw type mounting |
| For max. no. of cables | 2 |
| Max. cable diameter | 35 mm |
| Length | 120 mm |
| Width | 58 mm |
| Height | 17 mm |
| Mounting height | 17 mm |
| Cut-out size | 86 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 2 x KT large |
| Part No. | 54162.600 |
| EAN | 4251269325960 |
| Package quantity | 5 |
| Mounting options | Snap-in with KEL-SNAP, Screw type mounting |
| For max. no. of cables | 2 |
| Max. cable diameter | 35 mm |
| Length | 120 mm |
| Width | 58 mm |
| Height | 17 mm |
| Mounting height | 17 mm |
| Cut-out size | 86 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 2 x KT large |
| Part No. | 54216.601 |
| EAN | 4251269326127 |
| Package quantity | 5 |
| Mounting options | Snap-in with KEL-SNAP, Screw type mounting |
| For max. no. of cables | 24 |
| Max. cable diameter | 17 mm |
| Length | 98 mm |
| Width | 58 mm |
| Height | 17 mm |
| Mounting height | 17 mm |
| Cut-out size | 65 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 6 x KT small |
| Part No. | 54216.600 |
| EAN | 4251269326028 |
| Package quantity | 5 |
| Mounting options | Snap-in with KEL-SNAP, Screw type mounting |
| For max. no. of cables | 24 |
| Max. cable diameter | 17 mm |
| Length | 98 mm |
| Width | 58 mm |
| Height | 17 mm |
| Mounting height | 17 mm |
| Cut-out size | 65 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 6 x KT small |
| Part No. | 54212.601 |
| EAN | 4251269326110 |
| Package quantity | 5 |
| Mounting options | Snap-in with KEL-SNAP, Screw type mounting |
| For max. no. of cables | 9 |
| Max. cable diameter | 35 mm |
| Length | 98 mm |
| Width | 58 mm |
| Height | 17 mm |
| Mounting height | 17 mm |
| Cut-out size | 65 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 2 x KT small, 1 x KT large |
| Part No. | 54212.600 |
| EAN | 4251269326011 |
| Package quantity | 5 |
| Mounting options | Snap-in with KEL-SNAP, Screw type mounting |
| For max. no. of cables | 9 |
| Max. cable diameter | 35 mm |
| Length | 98 mm |
| Width | 58 mm |
| Height | 17 mm |
| Mounting height | 17 mm |
| Cut-out size | 65 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 2 x KT small, 1 x KT large |
| Part No. | 54204.601 |
| EAN | 4251269326097 |
| Package quantity | 5 |
| Mounting options | Snap-in with KEL-SNAP, Screw type mounting |
| For max. no. of cables | 16 |
| Max. cable diameter | 17 mm |
| Length | 73 mm |
| Width | 58 mm |
| Height | 17 mm |
| Mounting height | 17 mm |
| Cut-out size | 46 × 46 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 4 x KT small |
| Part No. | 54204.600 |
| EAN | 4251269325991 |
| Package quantity | 5 |
| Mounting options | Snap-in with KEL-SNAP, Screw type mounting |
| For max. no. of cables | 16 |
| Max. cable diameter | 17 mm |
| Length | 73 mm |
| Width | 58 mm |
| Height | 17 mm |
| Mounting height | 17 mm |
| Cut-out size | 46 × 46 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 4 x KT small |
| Part No. | 54206.601 |
| EAN | 4251269326103 |
| Package quantity | 5 |
| Mounting options | Snap-in with KEL-SNAP, Screw type mounting |
| For max. no. of cables | 1 |
| Max. cable diameter | 35 mm |
| Length | 73 mm |
| Width | 58 mm |
| Height | 17 mm |
| Mounting height | 17 mm |
| Cut-out size | 46 × 46 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 1 x KT large |
| Part No. | 54206.600 |
| EAN | 4251269326004 |
| Package quantity | 5 |
| Mounting options | Snap-in with KEL-SNAP, Screw type mounting |
| For max. no. of cables | 1 |
| Max. cable diameter | 35 mm |
| Length | 73 mm |
| Width | 58 mm |
| Height | 17 mm |
| Mounting height | 17 mm |
| Cut-out size | 46 × 46 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 1 x KT large |
Always find the right size and the right cable grommets for your cable entry!
Split cable grommets for diameters of 1 to 17 and 16 - 35 mm. Suitable for KEL CR cable entry frames.
Split cable grommets for diameters of 1 to 8 mm. Suitable for KEL CR cable entry frames.
EMC cable collectors with EMI shielding function for cable entry systems - for use with cable shield clamps PFS.
EMC cable collectors with EMI shielding function for cable entry systems - with integrated strain relief.
Modular gland plate system for mounting cable entry components in enclosure bases, roofs and divider panels. Suitable for enclosure base plate KDR-BMP.
Flange plates for mounting cable entry components on compact enclosures, junction boxes or bus enclosures by Rittal and Fibox.
Rectangular & square knockout punches for heavy multi-pin industrial connectors and many icotek cable entry components.
Grommet based cable entry for standard cut-outs of heavy industrial connectors. Available as single or double row version.
Cable entry plate with high cable density and certified protection up to IP66 / UL Type 12. Available in various sizes.
Round cable entry plate with certified sealing IP66/IP68 / UL Type 12/4X*. Metric threads M25-M63.
Round hygienic cable entry plate with certified sealing IP66/IP68. Metric threads M32-M63.
