KT 2|1 CR gy
| Part No. | 39942.601 |
| EAN | 4251269326684 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 1 - 1 mm |
-
Products
»
Cable Grommets
»
KT CR multi | KT CR special | Multi-Hole / Special Cable Grommets
KT CR multi | KT CR special | Multi-Hole / Special Cable Grommets
for the Use in Cleanrooms, 1 - 8 mm / IP54 / UL Type 12

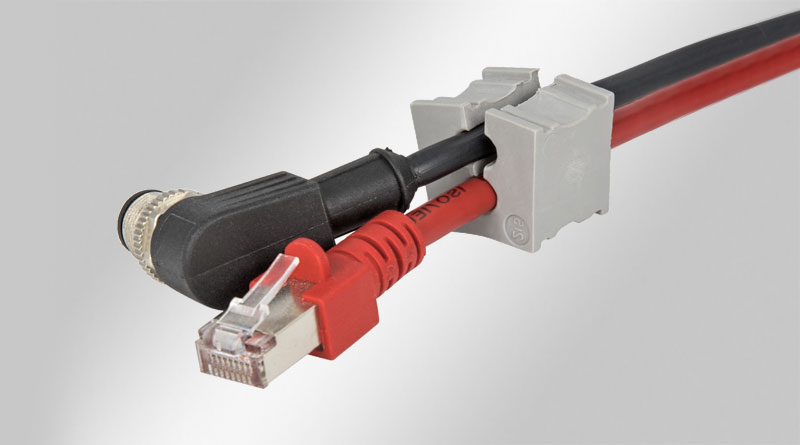

Cable grommets KT CR multi are used with the following cleanroom cable transit components:
KT CR multi-hole and special grommets enable a sealing of the cables with IP54 and UL Type 12.
When using double or quadruple grommets the cable density of cleanroom cable transit frames can be greatly increased. The multi-hole model range KT CR small is designed for cable diameters from 1 to 8 mm. ATG CR adapter grommets provide the possibility to hold a small KT CR grommet to reduce the clamping range down to 1 mm.
When installing the small grommets in multiple rows, the flat sides should be facing each other. This allows the flat sides to match up and provide a secure seal.
The products with article ending .600 are tested and certified for particle emission for cleanroom class 1 according to ISO 14644-1. The materials used for these products have been tested and certified for outgassing according to VOC/SVOC (ISO 14644-8; ISO 16000-6,-9,-11,-25, VDI 2083 sheet 17).
The products with the article ending .601 are tested and certified for particle emission for cleanroom class 1 according to ISO 14644-1.
Specifications
| IP rating (EN 60529) | IP54 |
| UL Type (UL 50E) | UL Type 12 |
| Flame class | UL94-V0, self-extinguishing |
| Operating temperature | -40 C° to 100 C° |
| Material | Elastomer |
| Properties | silicone free, halogen free |
Advantages & Benefits
- Enable routing of pre-terminated cables through cable entry frames and split cable glands
- Available for a large range of cable diameters
- Greatly increased cable density when using double or quadruple grommets
Product types & Sizes
KT 2|1 CR (S)VOC gy
| Part No. | 39942.600 |
| EAN | 4251269326554 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 1 - 1 mm |
KT 2|2 CR gy
| Part No. | 39935.601 |
| EAN | 4251269326653 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 2 - 2 mm |
KT 2|2 CR (S)VOC gy
| Part No. | 39935.600 |
| EAN | 4251269326523 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 2 - 2 mm |
KT 2|3 CR gy
| Part No. | 39939.601 |
| EAN | 4251269326677 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 3 - 3 mm |
KT 2|3 CR (S)VOC gy
| Part No. | 39939.600 |
| EAN | 4251269326547 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 3 - 3 mm |
KT 2|4 CR gy
| Part No. | 39906.601 |
| EAN | 4251269326592 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 4 - 4 mm |
KT 2|4 CR (S)VOC gy
| Part No. | 39906.600 |
| EAN | 4251269326462 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 4 - 4 mm |
KT 2|5 CR gy
| Part No. | 41200.601 |
| EAN | 4251269326691 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 5 - 5 mm |
KT 2|5 CR (S)VOC gy
| Part No. | 41200.600 |
| EAN | 4251269326561 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 5 - 5 mm |
KT 2|6 CR gy
| Part No. | 41201.601 |
| EAN | 4251269326707 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 6 - 6 mm |
KT 2|6 CR (S)VOC gy
| Part No. | 41201.600 |
| EAN | 4251269326578 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 6 - 6 mm |
KT 2|7 CR gy
| Part No. | 41202.601 |
| EAN | 4251269326714 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 7 - 7 mm |
KT 2|7 CR (S)VOC gy
| Part No. | 41202.600 |
| EAN | 4251269326585 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 7 - 7 mm |
KT 2|8 CR gy
| Part No. | 39917.601 |
| EAN | 4251269326639 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 8 - 8 mm |
KT 2|8 CR (S)VOC gy
| Part No. | 39917.600 |
| EAN | 4251269326509 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 8 - 8 mm |
KT 4|2 CR gy
| Part No. | 39937.601 |
| EAN | 4251269326660 |
| Package quantity | 10 |
| For max. no. of cables | 4 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 4 x 2 - 2 mm |
KT 4|2 CR (S)VOC gy
| Part No. | 39937.600 |
| EAN | 4251269326530 |
| Package quantity | 10 |
| For max. no. of cables | 4 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 4 x 2 - 2 mm |
KT 4|3 CR gy
| Part No. | 39914.601 |
| EAN | 4251269326622 |
| Package quantity | 10 |
| For max. no. of cables | 4 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 4 x 3 - 3 mm |
KT 4|3 CR (S)VOC gy
| Part No. | 39914.600 |
| EAN | 4251269326493 |
| Package quantity | 10 |
| For max. no. of cables | 4 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 4 x 3 - 3 mm |
KT 4|4 CR gy
| Part No. | 39909.601 |
| EAN | 4251269326615 |
| Package quantity | 10 |
| For max. no. of cables | 4 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 4 x 4 - 4 mm |
KT 4|4 CR (S)VOC gy
| Part No. | 39909.600 |
| EAN | 4251269326486 |
| Package quantity | 10 |
| For max. no. of cables | 4 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 4 x 4 - 4 mm |
KT 4|5 CR gy
| Part No. | 39908.601 |
| EAN | 4251269326608 |
| Package quantity | 10 |
| For max. no. of cables | 4 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 4 x 5 - 5 mm |
KT 4|5 CR (S)VOC gy
| Part No. | 39908.600 |
| EAN | 4251269326479 |
| Package quantity | 10 |
| For max. no. of cables | 4 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 4 x 5 - 5 mm |
KT 4|6 CR gy
| Part No. | 39932.601 |
| EAN | 4251269326646 |
| Package quantity | 10 |
| For max. no. of cables | 4 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 4 x 6 - 6 mm |
KT 4|6 CR (S)VOC gy
| Part No. | 39932.600 |
| EAN | 4251269326516 |
| Package quantity | 10 |
| For max. no. of cables | 4 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 4 x 6 - 6 mm |
BTK CR gy
| Part No. | 41251.601 |
| EAN | 4251269326455 |
| Package quantity | 10 |
| For max. no. of cables | 0 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
BTK CR (S)VOC gy
| Part No. | 41251.600 |
| EAN | 4251269325441 |
| Package quantity | 10 |
| For max. no. of cables | 0 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
KTs 16 CR gy
| Part No. | 39901.601 |
| EAN | 4251269326295 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 16 - 16 mm |
KTs 16 CR (S)VOC gy
| Part No. | 39901.600 |
| EAN | 4251269326172 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 16 - 16 mm |
KTs 17 CR gy
| Part No. | 39900.601 |
| EAN | 4251269326288 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 17 - 17 mm |
KTs 17 CR (S)VOC gy
| Part No. | 39900.600 |
| EAN | 4251269326165 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 17 - 17 mm |
BTK CR gy
| Part No. | 41251.601 |
| EAN | 4251269326455 |
| Package quantity | 10 |
| For max. no. of cables | 0 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
BTK CR (S)VOC gy
| Part No. | 41251.600 |
| EAN | 4251269325441 |
| Package quantity | 10 |
| For max. no. of cables | 0 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
ATG CR gy
| Part No. | 41253.601 |
| EAN | 4251269327131 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Color | gray (similar RAL 7035) |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
ATG CR (S)VOC gy
| Part No. | 41253.600 |
| EAN | 4251269326929 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Color | gray (similar RAL 7035) |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
BTG CR gy
| Part No. | 41252.601 |
| EAN | 4251269327124 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Color | gray (similar RAL 7035) |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
BTG CR (S)VOC gy
| Part No. | 41252.600 |
| EAN | 4251269326912 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Color | gray (similar RAL 7035) |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
You Haven't Found Anything Suitable Yet?
Try the ProductFinderSuitable for:
KEL-U CR
Split Cable Transit, UL Type 12 / IP54
Grommet based cable entry frames suitable for cut-outs of heavy industrial connectors. Available as single or double row version.
You might also be interested in the following products
KT CR
Split Cleanroom Cable Grommets, UL Type 12/4X* / IP66/IP68
Split cable grommets for diameters of 1 to 17 and 16 - 35 mm. Suitable for KEL CR cable entry frames.
KEL-ER CR
Split Cable Transit, UL Type 12/4X* / IP66
Grommet based cable entry for standard cut-outs of heavy industrial connectors. Available as single or double row version.
KEL-DPZ CR
High Density Cable Entry Plate, UL Type 12 / up to IP66
Cable entry plate with high cable density and certified protection up to IP66 / UL Type 12. Available in various sizes.
KEL-DPZ CR round
Round Cable Entry Plate, UL Type 12/4X* / IP66/IP68
Round cable entry plate with certified sealing IP66/IP68 / UL Type 12/4X*. Metric threads M25-M63.
KEL-DPZ-HD CR round
Round Cable Entry Plate, Hygienic Design, IP66/IP68, FDA Compliant
Round hygienic cable entry plate with certified sealing IP66/IP68. Metric threads M32-M63.
