KTMBS | Multi-range cable grommets for KEL systems, black

for cable diameters 4 - 29 mm / IP54

Order your free sample!
KTMBS | Multi-range cable grommets for KEL systems, black
KTMBS | Multi-range cable grommets for KEL systems, black
KTMBS | Multi-range cable grommets for KEL systems, black
KTMBS | Multi-range cable grommets for KEL systems, black

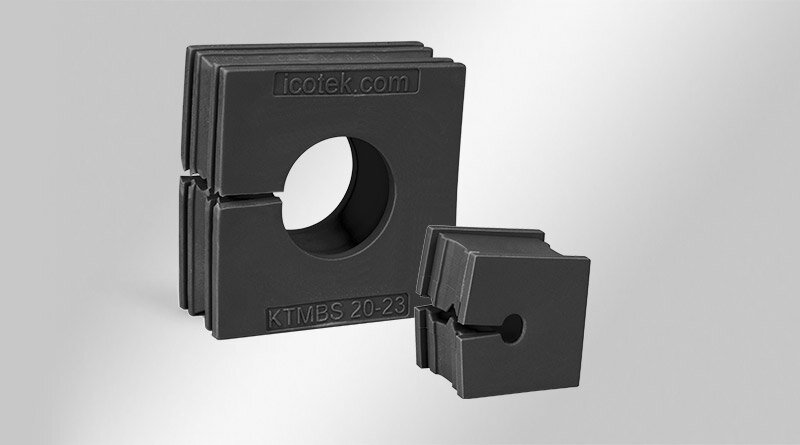

Cable grommets KTMBS black are used to route pre-terminated cables with the following cable entry components:

KTMBS black multi-range grommets have an increased chemical resistance, e.g. against aggressive oils, coolants etc.

The innovative membrane enables the routing of cables with diameters that can vary up to 3 mm.

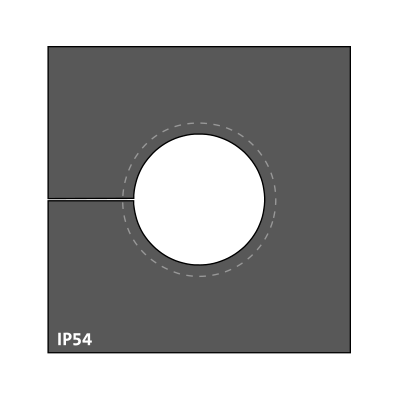

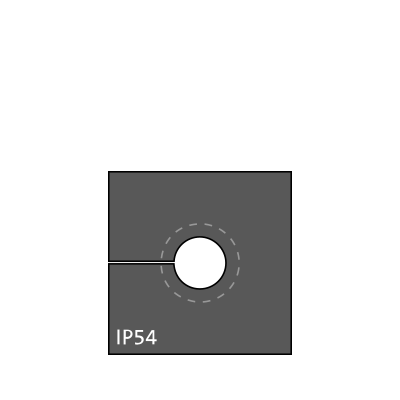

Utilising the KTMBS, cables with cable diameters from 4 to 29 mm can be routed.

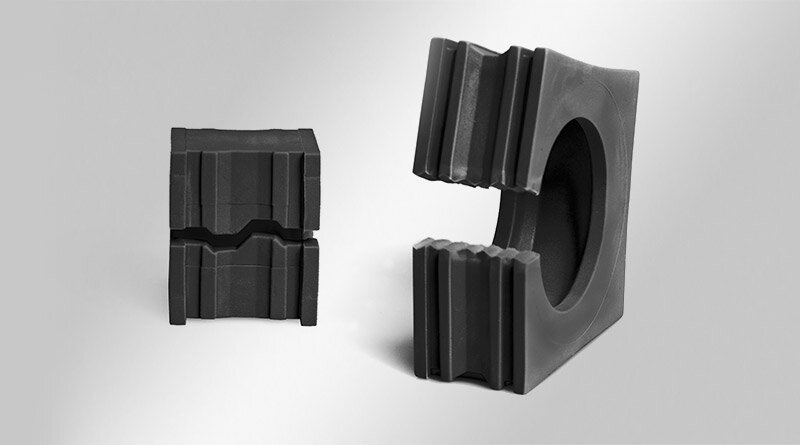

The innovative wave cut and the flexible sealing lips make it possible to seal the cable with IP54.

ST-B Plugs can be used for sealing the grommets if cables have been removed.

Download PDF
Order your free sample!

Specifications

IP rating (EN 60529) IP54
Flame class UL94-V0, self-extinguishing
Operating temperature -30 C° to 90 C°
Material Elastomer
Properties higher chemical resistance

Advantages & benefits

  • Routing of cables with and without connectors
  • Only 12 grommets cover a clamping range from 4 to 29 mm
  • Innovative wave cut for a better sealing
  • Innovative membrane for high flexibility

Product types & sizes

KTMBS 4-7 small (black), variable cable diameter range 4-7 mm

Part No. 51380
EAN 4251269336966
Package quantity 10
For max. no. of cables 1
Colour black
Length 21 mm
Width 21 mm
Height 19 mm
Mounting height 2 mm
For cable type Round cable
Clamping range 1 x 4 - 7 mm
available
Get a quote
Request CAD data
Data sheet

KTMBS 6-9 small (black), variable cable diameter range 6-9 mm

Part No. 51381
EAN 4251269336973
Package quantity 10
For max. no. of cables 1
Colour black
Length 21 mm
Width 21 mm
Height 19 mm
Mounting height 2 mm
For cable type Round cable
Clamping range 1 x 6 - 9 mm
available
Get a quote
Request CAD data
Data sheet

KTMBS 8-11 small (black), variable cable diameter range 8-11 mm

Part No. 51382
EAN 4251269336980
Package quantity 10
For max. no. of cables 1
Colour black
Length 21 mm
Width 21 mm
Height 19 mm
Mounting height 2 mm
For cable type Round cable
Clamping range 1 x 8 - 11 mm
available
Get a quote
Request CAD data
Data sheet

KTMBS 10-12 small (black), variable cable diameter range 10-12 mm

Part No. 51383
EAN 4251269336997
Package quantity 10
For max. no. of cables 1
Colour black
Length 21 mm
Width 21 mm
Height 19 mm
Mounting height 2 mm
For cable type Round cable
Clamping range 1 x 10 - 12 mm
available
Get a quote
Request CAD data
Data sheet

KTMBS 12-15 large (black), variable cable diameter range 12-15 mm

Part No. 51384
EAN 4251269337000
Package quantity 10
For max. no. of cables 1
Colour black
Length 41.5 mm
Width 42 mm
Height 19 mm
Mounting height 2 mm
For cable type Round cable
Clamping range 1 x 12 - 15 mm
available
Get a quote
Request CAD data
Data sheet

KTMBS 14-17 large (black), variable cable diameter range 14-17 mm

Part No. 51385
EAN 4251269337017
Package quantity 10
For max. no. of cables 1
Colour black
Length 41.5 mm
Width 42 mm
Height 19 mm
Mounting height 2 mm
For cable type Round cable
Clamping range 1 x 14 - 17 mm
available
Get a quote
Request CAD data
Data sheet

KTMBS 16-19 large (black), variable cable diameter range 16-19 mm

Part No. 51386
EAN 4251269337024
Package quantity 10
For max. no. of cables 1
Colour black
Length 41.5 mm
Width 42 mm
Height 19 mm
Mounting height 2 mm
For cable type Round cable
Clamping range 1 x 16 - 19 mm
available
Get a quote
Request CAD data
Data sheet

KTMBS 18-21 large (black), variable cable diameter range 18-21 mm

Part No. 51387
EAN 4251269337031
Package quantity 10
For max. no. of cables 1
Colour black
Length 41.5 mm
Width 42 mm
Height 19 mm
Mounting height 2 mm
For cable type Round cable
Clamping range 1 x 18 - 21 mm
available
Get a quote
Request CAD data
Data sheet

KTMBS 20-23 large (black), variable cable diameter range 20-23 mm

Part No. 51388
EAN 4251269337048
Package quantity 10
For max. no. of cables 1
Colour black
Length 41.5 mm
Width 42 mm
Height 19 mm
Mounting height 2 mm
For cable type Round cable
Clamping range 1 x 20 - 23 mm
available
Get a quote
Request CAD data
Data sheet

KTMBS 22-25 large (black), variable cable diameter range 22-25 mm

Part No. 51389
EAN 4251269337055
Package quantity 10
For max. no. of cables 1
Colour black
Length 41.5 mm
Width 42 mm
Height 19 mm
Mounting height 2 mm
For cable type Round cable
Clamping range 1 x 22 - 25 mm
available
Get a quote
Request CAD data
Data sheet

KTMBS 24-27 large (black), variable cable diameter range 24-27 mm

Part No. 51390
EAN 4251269337062
Package quantity 10
For max. no. of cables 1
Colour black
Length 41.5 mm
Width 42 mm
Height 19 mm
Mounting height 2 mm
For cable type Round cable
Clamping range 1 x 24 - 27 mm
available
Get a quote
Request CAD data
Data sheet

KTMBS 26-29 large (black), variable cable diameter range 26-29 mm

Part No. 51391
EAN 4251269337079
Package quantity 10
For max. no. of cables 1
Colour black
Length 41.5 mm
Width 42 mm
Height 19 mm
Mounting height 2 mm
For cable type Round cable
Clamping range 1 x 26 - 29 mm
available
Get a quote
Request CAD data
Data sheet
