BTK bk
| Part No. | 41351 |
| EAN | 4251269307072 |
| Package quantity | 10 |
| For max. no. of cables | 0 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
-
Products
»
Cable grommets
»

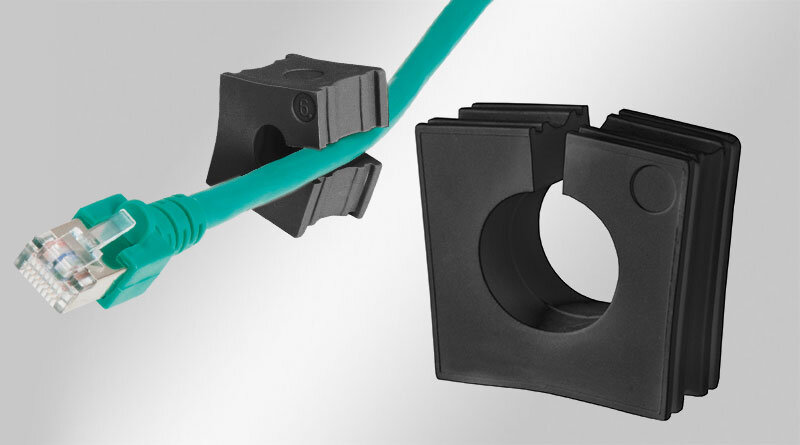

KT | Cable grommets, black
KT | Cable grommets, black
for cable diameters 1 - 35 mm / IP66 / IP68
Cable grommets KT small are used with the following cable entry components:
Black KT grommets have an increased chemical resistance, e.g. against aggressive oils, coolants etc.
In combination with KEL-ER cable entry frames and KVT-ER cable glands the KT single-hole grommets enable a sealing of the cables with up to IP66 / IP68.
The model range KT small is designed for cable diameters from 1 to 17 mm. Cable grommets KT large accept a wide range of cable diameters from 13 to 35 mm.
When installing the small grommets in multiple rows, the flat sides should be facing each other. This allows the flat sides to match up and provide a secure seal.
Specifications
| IP rating (EN 60529) | IP54, IP55, IP64, IP65, IP66, IP67, IP68 |
| Flame class | UL94-HB |
| Operating temperature | -30 C° to 90 C° |
| Material | Elastomer |
| Properties | higher chemical resistance |
Advantages & benefits
- Enable routing of pre-terminated cables through cable entry frames and split cable glands
- High strain relief in accordance with EN 62444 when a suitable cable entry is selected
- Available for a large range of cable diameters
- Greatly increased cable density when using double or quadruple grommets
Product types & sizes

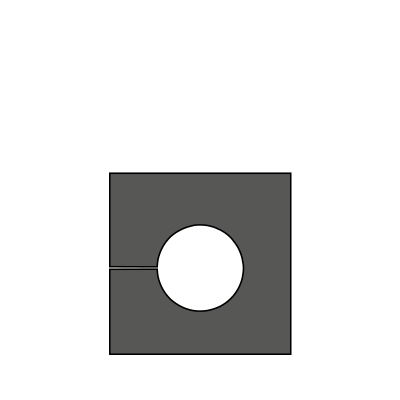

KT 1 bk
| Part No. | 39943 |
| EAN | 4251269318160 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 1 - 2 mm |
KT 2 bk
| Part No. | 41302 |
| EAN | 4251269306761 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 2 - 3 mm |
KT 3 bk
| Part No. | 41303 |
| EAN | 4251269306778 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 3 - 4 mm |
KT 4 bk
| Part No. | 41304 |
| EAN | 4251269306785 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 4 - 5 mm |
KT 5 bk
| Part No. | 41305 |
| EAN | 4251269306792 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 5 - 6 mm |
KT 6 bk
| Part No. | 41306 |
| EAN | 4251269306808 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 6 - 7 mm |
KT 7 bk
| Part No. | 41307 |
| EAN | 4251269306815 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 7 - 8 mm |
KT 8 bk
| Part No. | 41308 |
| EAN | 4251269306822 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 8 - 9 mm |
KT 9 bk
| Part No. | 41309 |
| EAN | 4251269306839 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 9 - 10 mm |
KT 10 bk
| Part No. | 41310 |
| EAN | 4251269306846 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 10 - 11 mm |
KT 11 bk
| Part No. | 41311 |
| EAN | 4251269306853 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 11 - 12 mm |
KT 12 bk
| Part No. | 41312 |
| EAN | 4251269306860 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 12 - 13 mm |
KT 13 bk
| Part No. | 41313 |
| EAN | 4251269306877 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 13 - 14 mm |
KT 14 bk
| Part No. | 41314 |
| EAN | 4251269306884 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 14 - 15 mm |
KT 15 bk
| Part No. | 41315 |
| EAN | 4251269306891 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 15 - 16 mm |
KTs 16 bk
| Part No. | 39912 |
| EAN | 4251269306129 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 16 - 16 mm |
KTs 17 bk
| Part No. | 39913 |
| EAN | 4251269306136 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 17 - 17 mm |

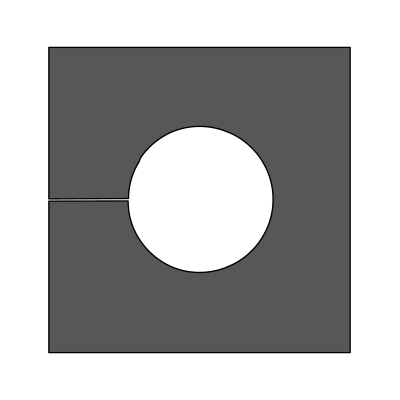

BTG bk
| Part No. | 41352 |
| EAN | 4251269307089 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
KTG 13 bk
| Part No. | 41363 |
| EAN | 4251269331978 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 13 - 14 mm |
KTG 14 bk
| Part No. | 41364 |
| EAN | 4251269331985 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 14 - 15 mm |
KTG 15 bk
| Part No. | 41365 |
| EAN | 4251269331992 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 15 - 16 mm |
KT 16 bk
| Part No. | 41316 |
| EAN | 4251269306907 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 16 - 17 mm |
KT 17 bk
| Part No. | 41317 |
| EAN | 4251269306914 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 17 - 18 mm |
KT 18 bk
| Part No. | 41318 |
| EAN | 4251269306921 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 18 - 19 mm |
KT 19 bk
| Part No. | 41319 |
| EAN | 4251269306938 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 19 - 20 mm |
KT 20 bk
| Part No. | 41320 |
| EAN | 4251269306945 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 20 - 21 mm |
KT 21 bk
| Part No. | 41321 |
| EAN | 4251269306952 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 21 - 22 mm |
KT 22 bk
| Part No. | 41322 |
| EAN | 4251269306969 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 22 - 23 mm |
KT 23 bk
| Part No. | 41323 |
| EAN | 4251269306976 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 23 - 24 mm |
KT 24 bk
| Part No. | 41324 |
| EAN | 4251269306983 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 24 - 25 mm |
KT 25 bk
| Part No. | 41325 |
| EAN | 4251269306990 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 25 - 26 mm |
KT 26 bk
| Part No. | 41326 |
| EAN | 4251269307003 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 26 - 27 mm |
KT 27 bk
| Part No. | 41327 |
| EAN | 4251269307010 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 27 - 28 mm |
KT 28 bk
| Part No. | 41328 |
| EAN | 4251269307027 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 28 - 29 mm |
KT 29 bk
| Part No. | 41329 |
| EAN | 4251269307034 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 29 - 30 mm |
KT 30 bk
| Part No. | 41330 |
| EAN | 4251269307041 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 30 - 31 mm |
KT 31 bk
| Part No. | 41331 |
| EAN | 4251269316807 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 31 - 32 mm |
KT 32 bk
| Part No. | 41332 |
| EAN | 4251269307058 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 32 - 33 mm |
KT 33 bk
| Part No. | 41333 |
| EAN | 4251269316814 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 33 - 34 mm |
KT 34 bk
| Part No. | 41334 |
| EAN | 4251269307065 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 34 - 35 mm |
You haven't found anything suitable yet?
Try the ProductFinder
Simply assemble the cable entry component with grommets
Always find the right size and the right cable grommets for your cable entry!
Suitable accessories
Suitable for:
DB Distribution Box
Split 360° cable entry system, M32-M75, IP54
With the distribution box, centrally routed cables (with and without connectors) can be distributed 360° in all desired directions.
KEL-FA
Split cable entry frame for tool-free assembly, IP54 / UL Type 12
KT grommet based cable entry frames for tool-free assembly. Suitable for standard cut-outs of heavy industrial connectors.
KEL-ER | KEL-ER-E
Split cable entry frame, IP66 / UL Type 12/4X*
KT grommet based cable entry for standard cut-outs of heavy industrial connectors. Available as single or double row version.
KEL-U | KEL-E
Split cable entry frame, IP54 / UL Type 12
KT grommet based cable entry frames for standard cut-outs of heavy industrial connectors. Available as single or double row version.
KEL
Centrally split cable entry frame, IP54 / UL Type 12
Classic KT grommet based cable entry frames for standard cut-outs of heavy industrial connectors. Also available as multi-row versions.
KEL-FG-ER | KEL-FG-ER-E
Split 90° cable entry enclosure, IP65
KT grommet based flange enclosure for routing preassembled cables in a 90° angle to the enclosure wall. Available as single or double row version.
KEL-FG | KEL-FG-E
Split 90° cable entry enclosure, IP54 / UL Type 12
KT grommet based flange enclosure for routing preassembled cables in a 90° angle to the enclosure wall. Available as single or double row version.
KEL-FL
Split cable entry frame for flat cables, IP54
KT/FT grommet based split single-row cable entry frame for flat cables as well as prefabricated round cables.
KEL 183
Split cable entry frame for large diameters, IP54 / UL Type 12
KT grommet based cable entry frames for supply cables with large diameters of up to 75 mm. Available as single or double row version.
KVT
Split cable gland, M20-M63, IP54 / UL Type 12
KT grommet based split cable gland for preassembled cables with metric thread sizes M20 / M25 / M32 / M40 / M50 / M63.
KVT 80
Split cable gland, M80, IP54 / UL Type 12
KT grommet based split cable gland for cables with large round connectors of up to 80 mm in diameter.
KVT-ER
Split cable gland, M25-M63, IP66/IP68 / UL Type 12/4X*
KT grommet based split cable gland for preassembled cables with metric thread sizes M25 / M32 / M50 / M63.
KVT-SNAP
Split snap-in cable gland, M32-M63, IP54
KT grommet based split cable gland for tool-free snap-in mounting on metric cut-outs M32 / M40 / M63.
KVT-W90
Split 90° cable gland, M32 / M50, IP54
KT grommet based split cable gland for routing pre-terminated cables at a 90° angle to the enclosure wall. Metric thread sizes M32 / M50.
EMC-KVT-DS
Split EMC cable gland, IP55
Split conductive EMC cable gland with metric thread M32 / M63. Protection class IP55.
You might also be interested in the following products
KT grey
Split cable grommets, grey, IP66/IP68 / UL Type 12/4X*
Split cable grommets for diameters of 1 to 17 and 13 - 35 mm. Suitable for KEL cable entry frames and KVT cable glands.
KT multi grey
Split multi / special cable grommets, grey, IP54 / UL Type 12
Split cable grommets for diameters of 1 to 8 mm as well as for special cables. Suitable for KEL cable entry frames and KVT cable glands.
KT multi black
Split multi / special cable grommets, black, IP54
Split cable grommets for diameters of 1 to 8 mm as well as for special cables. Suitable for KEL cable entry frames and KVT cable glands. Higher chemical resistance.
KTMBS grey
Split multi-range cable grommets, grey, IP54 / UL Type 12
Split cable grommets for diameters 4 - 29 mm. Suitable for KEL cable entry frames and KVT cable glands.
KT / QT ServiceBox
Service boxes for cable grommets
Assortment of cable grommets in various types and sizes. Perfect for maintenance cases.
AT-KS
Adapter grommet for KEL, for Keystone jacks
Adapter grommet based on KT cable grommets for snap-in mounting of Keystone jacks.
KEL-BES-S round
Split cable gland with brush seal
Split cable gland with brush seal, for metric cut-outs M32/M50. Mounting via locknut or snap-in.
EMC Service boxes
EMC ServiceBox
Assortment of SKL / MSKL shield clamps. Perfect for service calls and maintenance.
FP
Flange plates, IP54 - IP66
Flange plates for mounting cable entry components on compact enclosures, terminal boxes or bus enclosures by Rittal and Fibox.
KEL-DPZ-HD round
Round gland plate, hygienic design, IP66/IP68, FDA compliant
Round hygienic gland plate with certified sealing IP66/IP68. Metric threads M32-M63.
