KT 2|1 bk
| Part No. | 39944 |
| EAN | 4251269318177 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 1 - 1 mm |
-
Products
»
Cable grommets
»
KT multi | KT special | Multi-hole / special cable grommets, black
KT multi | KT special | Multi-hole / special cable grommets, black
for cable diameters 1 - 8 mm and special cables / IP54
Cable grommets KT small are used with the following cable entry components:
Black KT grommets have an increased chemical resistance, e.g. against aggressive oils, coolants etc.

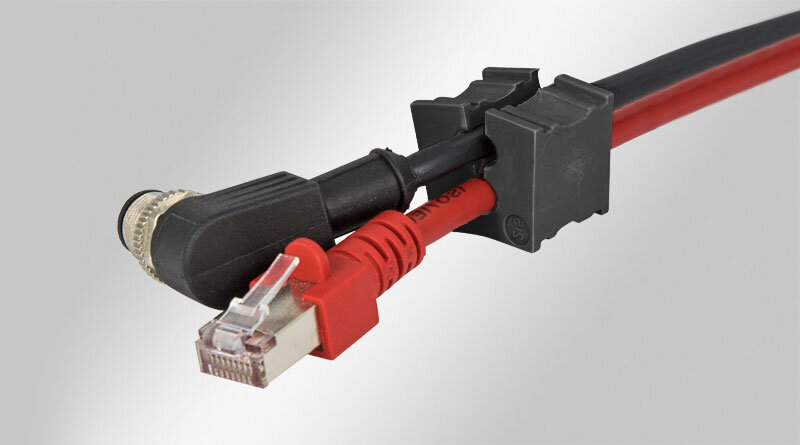

KT multi-hole and special grommets enable a sealing of the cables with IP54.
When using double or quadruple grommets the cable density of cable entry frames and cable glands can be greatly increased. The multi-hole model range KT small is designed for cable diameters from 1 to 8 mm. icotek also offers special cable grommets for e.g. ASI lines. ATG adapter grommets provide the possibility to hold a small KT grommet to reduce the clamping range down to 1 mm.
When installing the small grommets in multiple rows, the flat sides should be facing each other. This allows the flat sides to match up and provide a secure seal.
Specifications
| IP rating (EN 60529) | IP54 |
| Flame class | UL94-HB |
| Operating temperature | -30 C° to 90 C° |
| Material | Elastomer |
| Properties | higher chemical resistance |
Advantages & benefits
- Enable routing of pre-terminated cables through cable entry frames and split cable glands
- High strain relief in accordance with EN 62444 when a suitable cable entry is selected
- Available for a large range of cable diameters
- Greatly increased cable density when using double or quadruple grommets
Product types & sizes
KT 2|2 bk
| Part No. | 39936 |
| EAN | 4251269306303 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 2 - 2 mm |
KT 2|3 bk
| Part No. | 39940 |
| EAN | 4251269306341 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 3 - 3 mm |
KT 2|4 bk
| Part No. | 39907 |
| EAN | 4251269306075 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 4 - 4 mm |
KT 2|5 bk
| Part No. | 39904 |
| EAN | 4251269306044 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 5 - 5 mm |
KT 2|6 bk
| Part No. | 39905 |
| EAN | 4251269306051 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 6 - 6 mm |
KT 2|7 bk
| Part No. | 39916 |
| EAN | 4251269306167 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 7 - 7 mm |
KT 2|8 bk
| Part No. | 39918 |
| EAN | 4251269306181 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 8 - 8 mm |
KT 4|2 bk
| Part No. | 39938 |
| EAN | 4251269306327 |
| Package quantity | 10 |
| For max. no. of cables | 4 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 4 x 2 - 2 mm |
KT 4|3 bk
| Part No. | 39915 |
| EAN | 4251269306150 |
| Package quantity | 10 |
| For max. no. of cables | 4 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 4 x 3 - 3 mm |
KT 4|4 bk
| Part No. | 39911 |
| EAN | 4251269306112 |
| Package quantity | 10 |
| For max. no. of cables | 4 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 4 x 4 - 4 mm |
KT 4|5 bk
| Part No. | 39910 |
| EAN | 4251269306105 |
| Package quantity | 10 |
| For max. no. of cables | 4 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 4 x 5 - 5 mm |
KT 4|6 bk
| Part No. | 39933 |
| EAN | 4251269306273 |
| Package quantity | 10 |
| For max. no. of cables | 4 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 4 x 6 - 6 mm |
BTK bk
| Part No. | 41351 |
| EAN | 4251269307072 |
| Package quantity | 10 |
| For max. no. of cables | 0 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
KTs 16 bk
| Part No. | 39912 |
| EAN | 4251269306129 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 16 - 16 mm |
KTs 17 bk
| Part No. | 39913 |
| EAN | 4251269306136 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 1 x 17 - 17 mm |
KT-ASI bk
| Part No. | 39903 |
| EAN | 4251269306037 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | ASI cable |

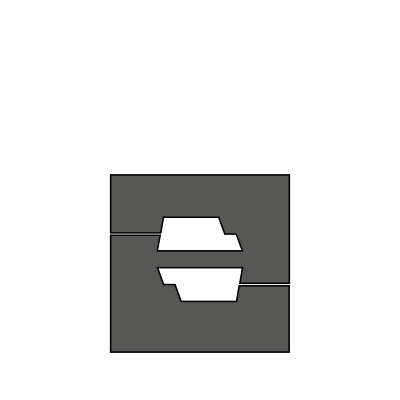

KT-ASI-2 ll bk
| Part No. | 39923 |
| EAN | 4251269306211 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | ASI cable |
KT-ASI-2 rl bk
| Part No. | 39924 |
| EAN | 4251269306228 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | ASI cable |
BTK bk
| Part No. | 41351 |
| EAN | 4251269307072 |
| Package quantity | 10 |
| For max. no. of cables | 0 |
| Colour | black |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |

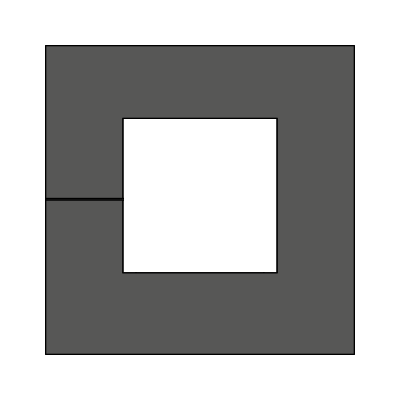

ATG bk
| Part No. | 41353 |
| EAN | 4251269307096 |
| Package quantity | 10 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
BTG bk
| Part No. | 41352 |
| EAN | 4251269307089 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Colour | black |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
