UCL 8-12
| Part No. | 32020 |
| Package quantity | 25 |
| Mounting options | Clamping |
| Length | 39 mm |
| Width | 16 mm |
| Mounting height | 61 mm |
| Clamping range | 1 x 8 - 12 mm |
-
Products
»
Strain Relief Acc. to EN 62444
»
UCL Cable Clamps / Cable Clips
UCL Cable Clamps / Cable Clips
for 1-5/8" Unistrut Channels

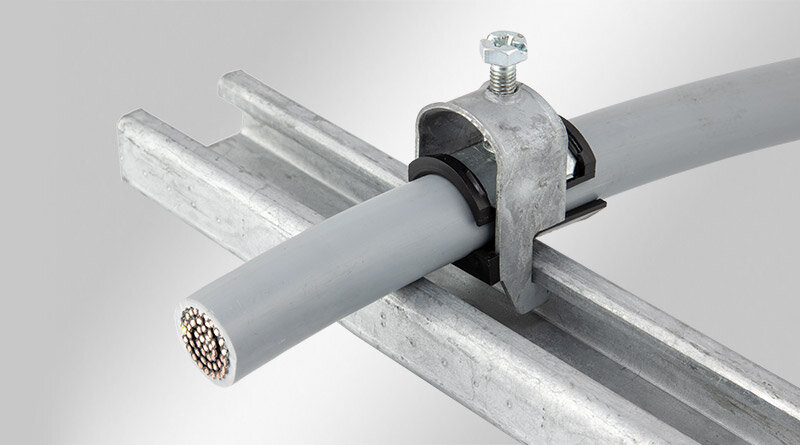

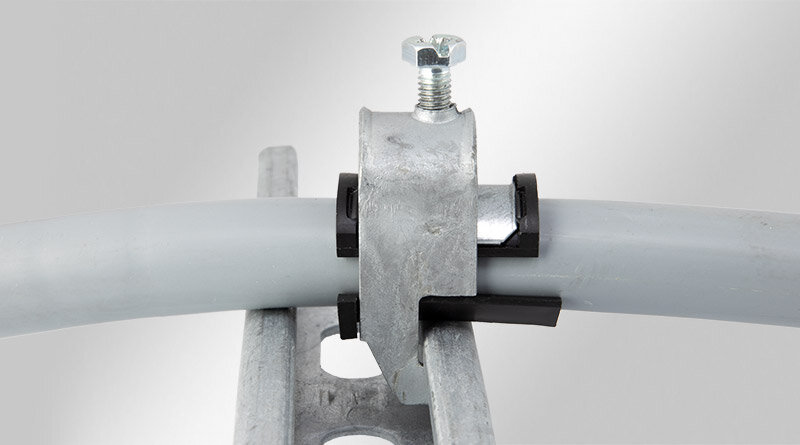

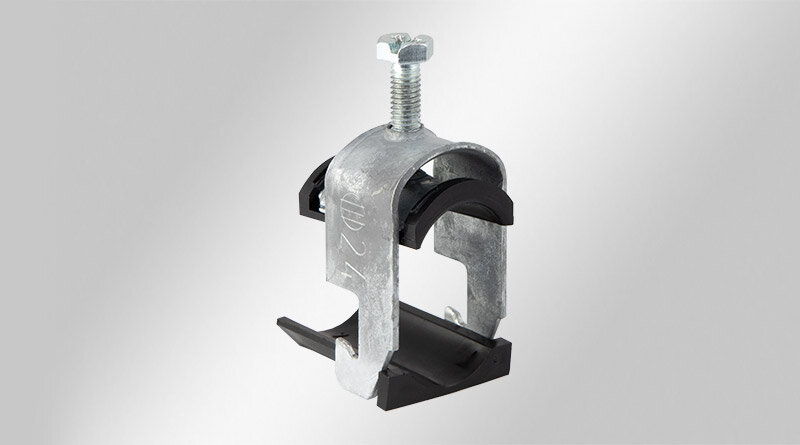

The UCL cable clamps are characterized by a high clamping range and great flexibility. Ideally suited for strain relief on the 1-5/8" Unistrut Channel with opening dimensions 7/8“ (suitable for all channel heights). It offers flexible clamping ranges from 8 mm (0.315") to 64 mm (2.52").
Specifications
| Material | Steel, zinc plated |
| Mounting options | Clamping |
| Properties | vibration proof |
Advantages & Benefits
- Quick and easy assembly
- For mounting on all 1-5/8" Unistrut Channels with opening dimensions 7/8“ (suitable for all channel heights)
Product types & Sizes

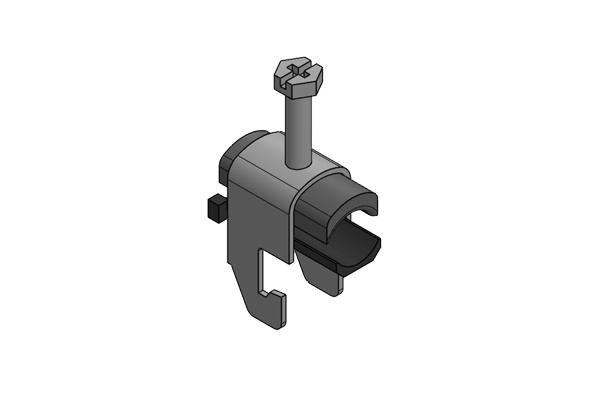

UCL 12-16
| Part No. | 32021 |
| Package quantity | 25 |
| Mounting options | Clamping |
| Length | 39 mm |
| Width | 20 mm |
| Mounting height | 66.5 mm |
| Clamping range | 1 x 12 - 16 mm |

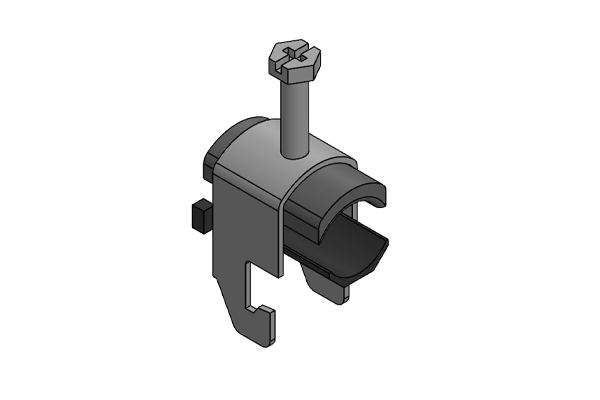

UCL 16-20
| Part No. | 32022 |
| Package quantity | 25 |
| Mounting options | Clamping |
| Length | 39 mm |
| Width | 24 mm |
| Mounting height | 70.2 mm |
| Clamping range | 1 x 16 - 20 mm |

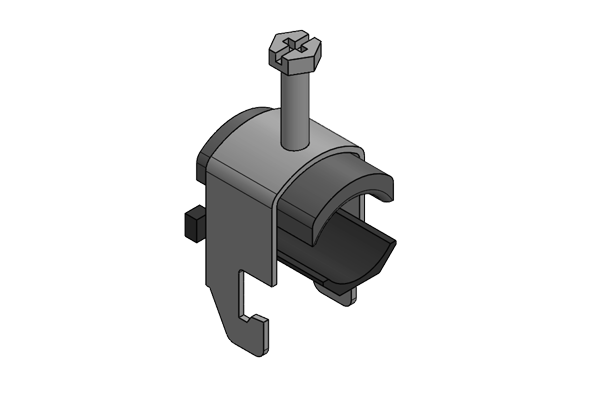

UCL 20-24
| Part No. | 32023 |
| Package quantity | 25 |
| Mounting options | Clamping |
| Length | 39 mm |
| Width | 28 mm |
| Mounting height | 73.5 mm |
| Clamping range | 1 x 20 - 24 mm |

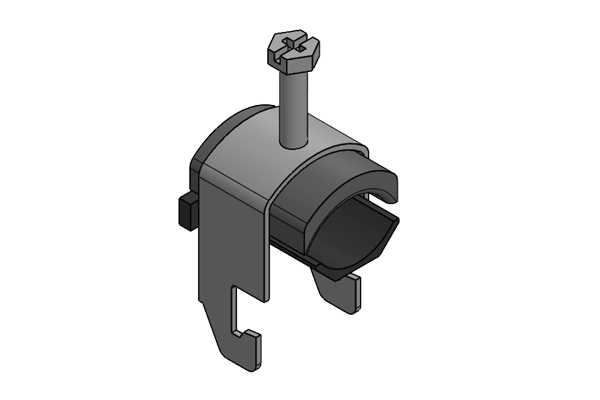

UCL 24-28
| Part No. | 32024 |
| Package quantity | 25 |
| Mounting options | Clamping |
| Length | 39 mm |
| Width | 32 mm |
| Mounting height | 77.5 mm |
| Clamping range | 1 x 24 - 28 mm |

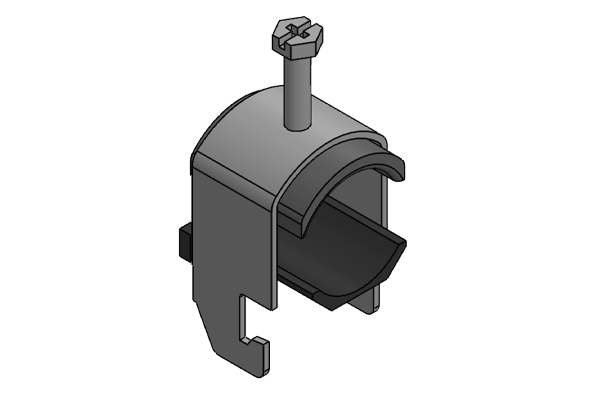

UCL 28-32
| Part No. | 32025 |
| Package quantity | 25 |
| Mounting options | Clamping |
| Length | 39 mm |
| Width | 36.5 mm |
| Mounting height | 83 mm |
| Clamping range | 1 x 28 - 32 mm |

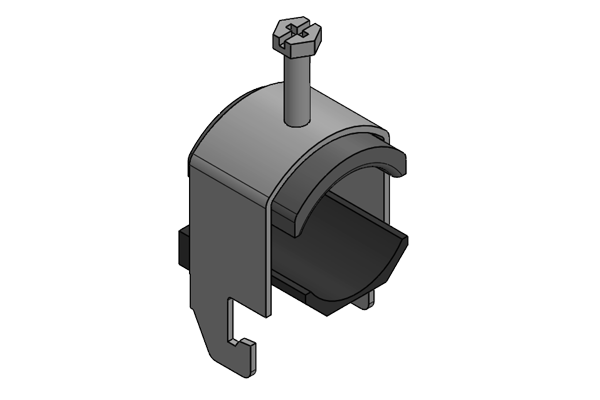

UCL 32-36
| Part No. | 32026 |
| Package quantity | 25 |
| Mounting options | Clamping |
| Length | 39 mm |
| Width | 40.5 mm |
| Mounting height | 87 mm |
| Clamping range | 1 x 32 - 36 mm |

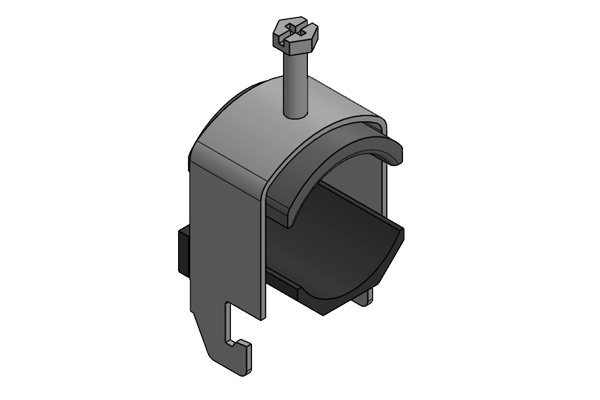

UCL 36-40
| Part No. | 32027 |
| Package quantity | 25 |
| Mounting options | Clamping |
| Length | 39 mm |
| Width | 44.5 mm |
| Mounting height | 93.5 mm |
| Clamping range | 1 x 36 - 40 mm |

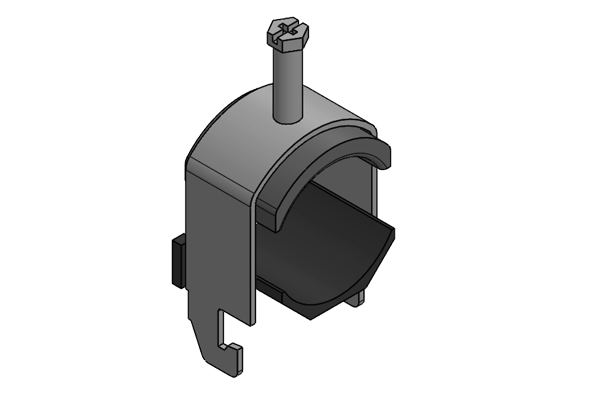

UCL 40-44
| Part No. | 32028 |
| Package quantity | 25 |
| Mounting options | Clamping |
| Length | 39 mm |
| Width | 49 mm |
| Mounting height | 103 mm |
| Clamping range | 1 x 40 - 44 mm |

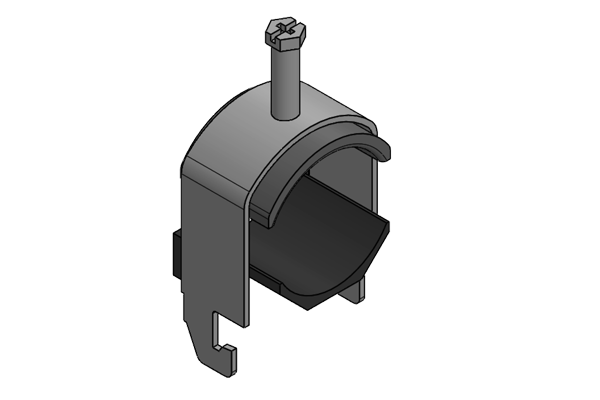

UCL 44-48
| Part No. | 32029 |
| Package quantity | 25 |
| Mounting options | Clamping |
| Length | 39 mm |
| Width | 53 mm |
| Mounting height | 106 mm |
| Clamping range | 1 x 44 - 48 mm |

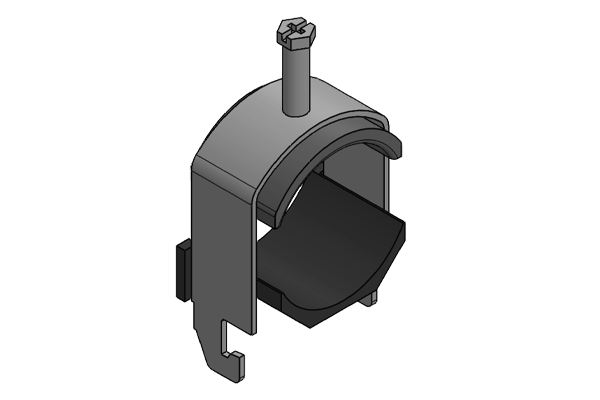

UCL 48-52
| Part No. | 32030 |
| Package quantity | 25 |
| Mounting options | Clamping |
| Length | 39 mm |
| Width | 57 mm |
| Mounting height | 112 mm |
| Clamping range | 1 x 48 - 52 mm |

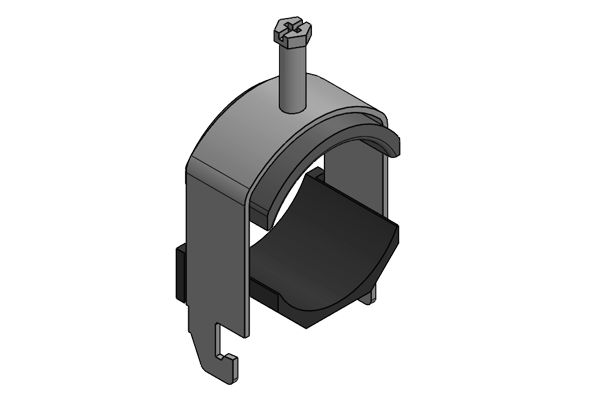

UCL 52-56
| Part No. | 32031 |
| Package quantity | 25 |
| Mounting options | Clamping |
| Length | 39 mm |
| Width | 61 mm |
| Mounting height | 115.5 mm |
| Clamping range | 1 x 52 - 56 mm |

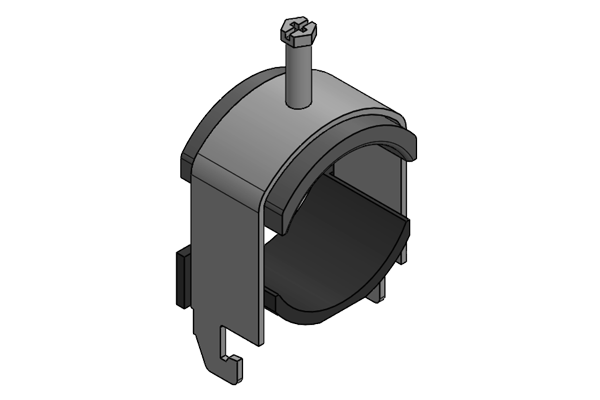

UCL 56-60
| Part No. | 32032 |
| Package quantity | 25 |
| Mounting options | Clamping |
| Length | 45 mm |
| Width | 65.5 mm |
| Mounting height | 120 mm |
| Clamping range | 1 x 56 - 60 mm |

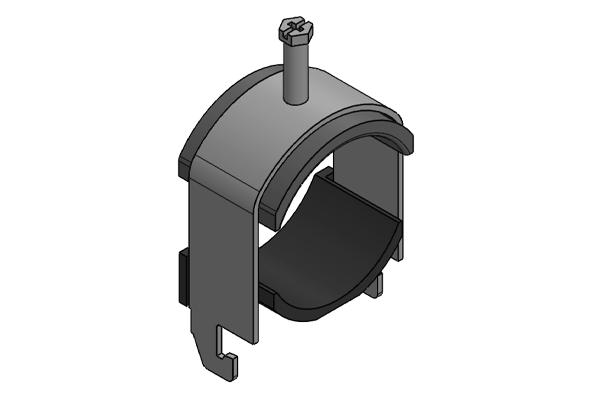

UCL 60-64
| Part No. | 32033 |
| Package quantity | 25 |
| Mounting options | Clamping |
| Length | 45 mm |
| Width | 69.5 mm |
| Mounting height | 124 mm |
| Clamping range | 1 x 60 - 64 mm |
