BPK-SNAP 24
| Part No. | 42017 |
| EAN | 4251269307492 |
| Package quantity | 10 |
| Mounting options | Snap-in with KEL-SNAP |
| Length | 147 mm |
| Width | 58 mm |
| Height | 17 mm |
| Suitable for cable entry systems: | KEL-SNAP 24, KEL-SNAP-S 24, KDR-ESR |
-
Products
»
Control Panel & Enclosure Accessories
»
BPK-SNAP Blank Plates for KEL-SNAP Frames
BPK-SNAP Blank Plates for KEL-SNAP Frames
& KDR-ESR Enclosure Gland Plates / IP54

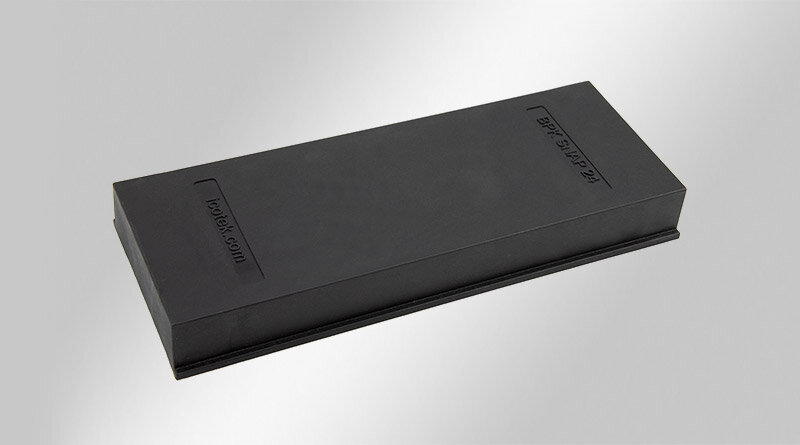

Blank plate BPK-SNAP to close cut-outs of pre-assembled KEL-SNAP frames.
A snap frame can be closed, i.e. during transport to avoid entry of dust, as long as a KEL frame is not mounted.

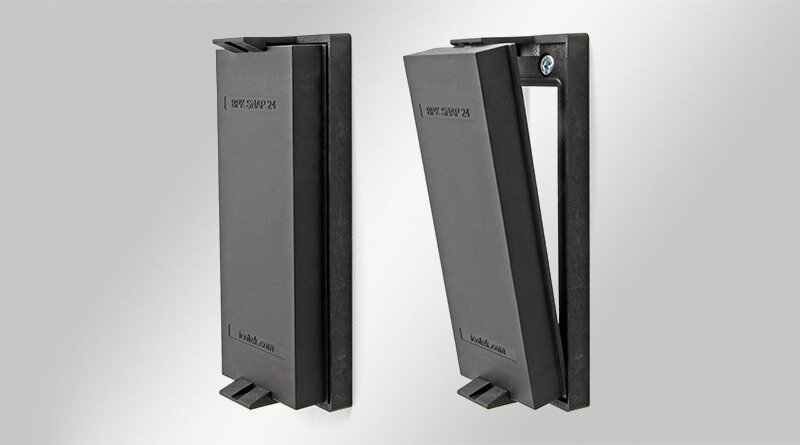

The BPK-SNAP blank plate is simply snapped on the KEL-SNAP frame. There is no tool needed to remove it.

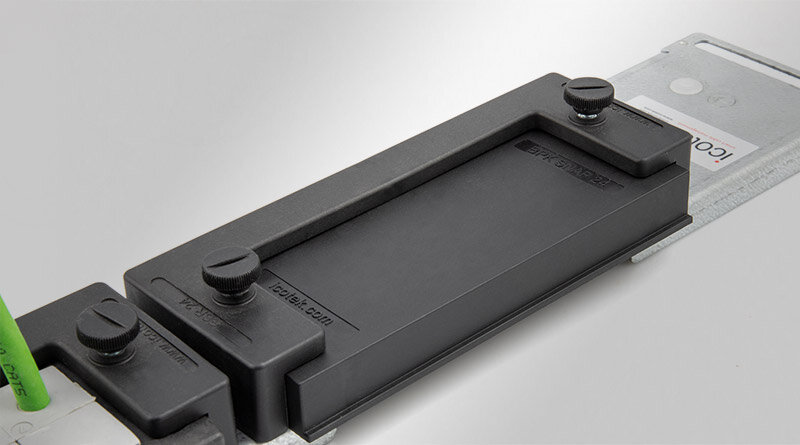

BPK-SNAP 16 and BPK-SNAP 24 for closing cut-outs of the KEL-SNAP mounting frames and unused Slide frames of the KDR-ESR gland plates.
Specifications
| IP rating (EN 60529) | IP54 |
| Flame class | UL94-V0, self-extinguishing |
| Operating temperature | -40 C° to 80 C° |
| Material | Polyamide |
| Mounting options | Snap-in with KEL-SNAP |
| Properties | silicone free, halogen free |
Product types & Sizes

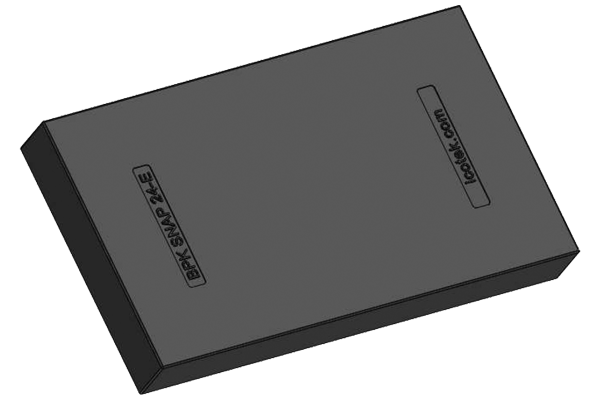

BPK-SNAP-24-E
| Part No. | 42008 |
| EAN | 4251269321511 |
| Package quantity | 10 |
| Mounting options | Snap-in with KEL-SNAP |
| Length | 147 mm |
| Width | 83 mm |
| Height | 17 mm |
| Suitable for cable entry systems: | KEL-SNAP 24-E |

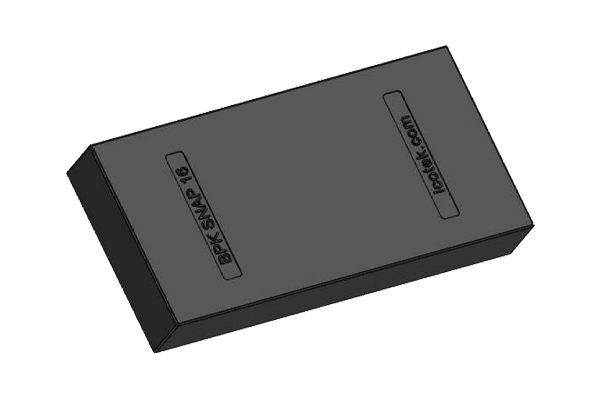

BPK-SNAP 16
| Part No. | 42007 |
| EAN | 4251269307386 |
| Package quantity | 10 |
| Mounting options | Snap-in with KEL-SNAP |
| Length | 120 mm |
| Width | 58 mm |
| Height | 17 mm |
| Suitable for cable entry systems: | KEL-SNAP 16, KEL-SNAP-S 16, KDR-ESR |

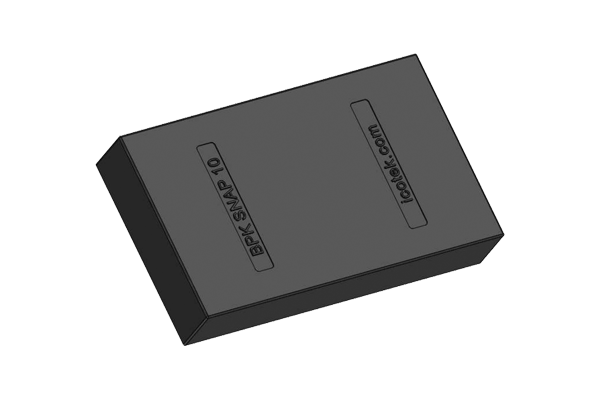

BPK-SNAP 10
| Part No. | 42004 |
| EAN | 4251269307379 |
| Package quantity | 10 |
| Mounting options | Snap-in with KEL-SNAP |
| Length | 98 mm |
| Width | 58 mm |
| Height | 17 mm |
| Suitable for cable entry systems: | KEL-SNAP 10, KEL-SNAP-S 10 |

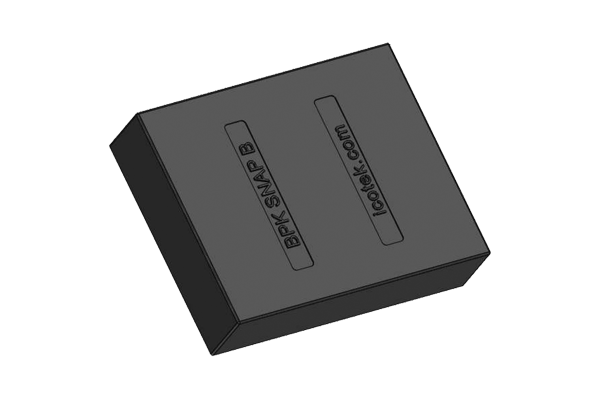

BPK-SNAP-B
| Part No. | 42003 |
| EAN | 4251269307362 |
| Package quantity | 10 |
| Mounting options | Snap-in with KEL-SNAP |
| Length | 73 mm |
| Width | 58 mm |
| Height | 17 mm |
| Suitable for cable entry systems: | KEL-SNAP-B, KEL-SNAP-S-B |
