DIN-RC rail cutter

for top hat DIN rails & bus bars, with length stop 1000 mm

DIN-RC rail cutter
DIN-RC rail cutter
DIN-RC rail cutter
DIN-RC rail cutter
DIN-RC rail cutter
DIN-RC rail cutter
DIN-RC rail cutter
DIN-RC rail cutter
DIN-RC rail cutter
DIN-RC rail cutter

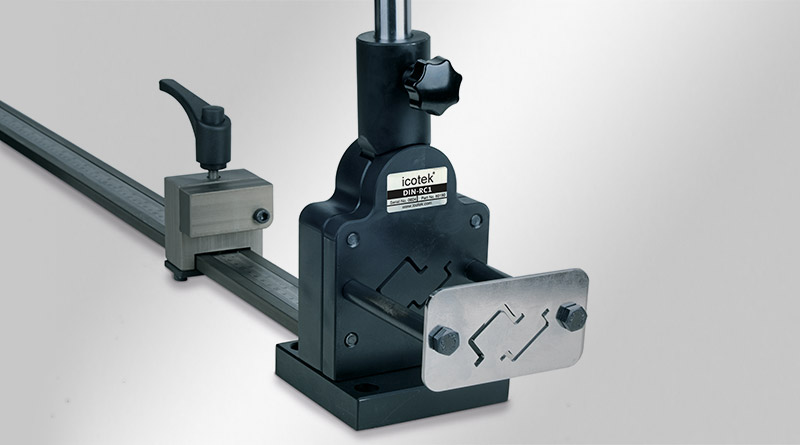

The DIN-RC cutter cuts various DIN rails with little effort and accurately. The cut is clean and free of burrs; there is no waste.

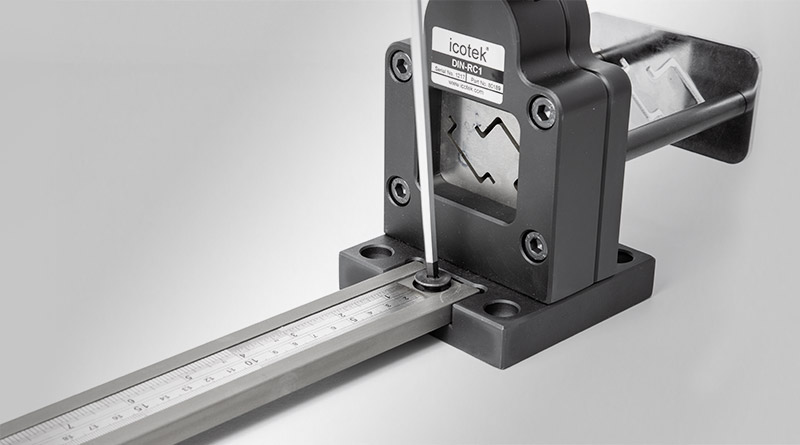

The length stop with guiding device ensures that nothing slips while cutting and that the cut is always 90° at an exact angle. Thanks to the optimal power transmission of the cutting device, only little effort is required.

The DIN-RC 1 is suitable for cutting:

  • DIN top hat rails 35 x 7.5 mm
  • DIN top hat rails 35 x 15 mm

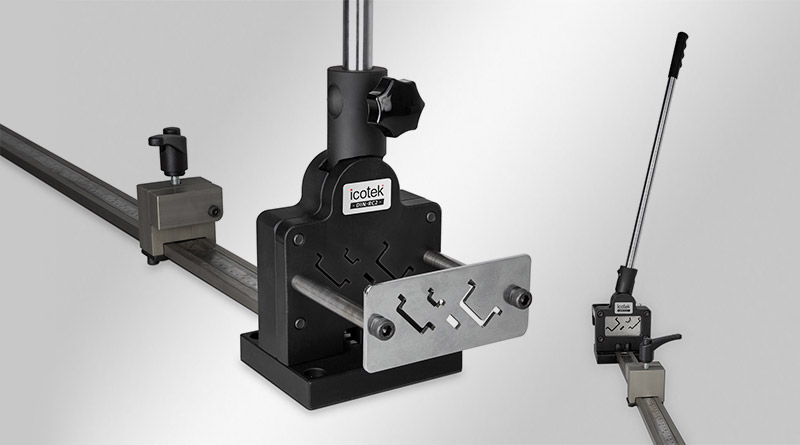

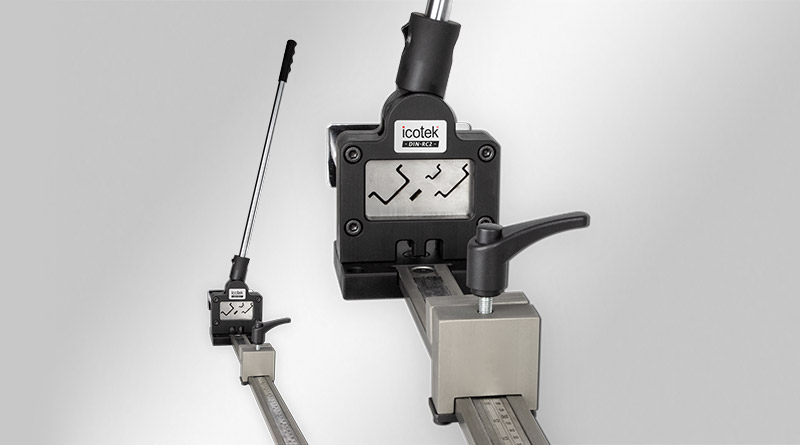

The DIN-RC 2 is suitable for cutting:

  • DIN top hat rails 35 x 7.5 mm
  • DIN top hat rails 35 x 15 mm
  • DIN top hat rails 15 x 5.5 mm
  • Bus bars 10 x 3 mm
Download PDF

Advantages & benefits

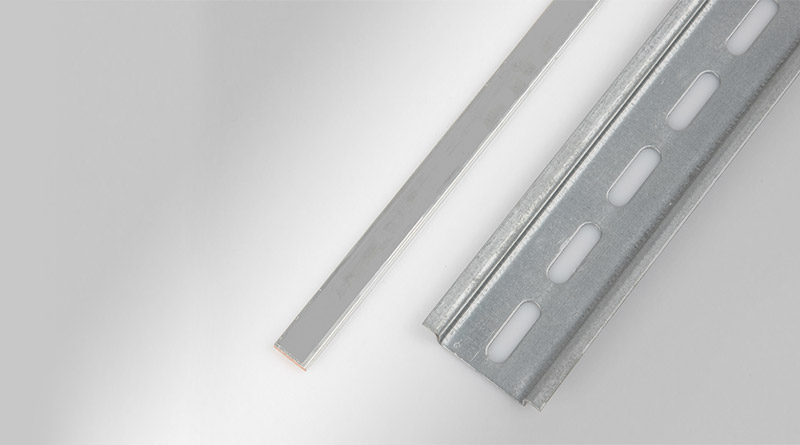

  • Cuts the most common DIN top hat rails 35 x 7.5 mm, 35 x 15 mm and 15 x 5.5 mm as well as bus bars 10 x 3 mm
  • Exact 90° cuts
  • Burr-free cuts
  • With length stop 1000 mm and guiding device

Product types & sizes

DIN-RC 1

Part No. 80189
EAN 4251269324345
Package quantity 1
available
Get a quote

DIN-RC 2

Part No. 80190
EAN 4251269323942
Package quantity 1
available
Get a quote

You haven't found anything suitable yet?

Try the ProductFinder

Product video


Convince yourself of the simple and time-saving use of our products.

Watch the product video!

DIN-RC 1: 0:00 - 0:52
DIN-RC 2: 0:53 - 1:37

Suitable for:

SSK

Bus bars

10 x 3 mm copper bus bars for earthing of cables.
