KDR-BES-U-xxxx (1.5-2-35 mm)
| Part No. | 58210.xxxx |
| Package quantity | 1 |
| Brush height | 35 mm |
| For min. wall thickness | 1.5 mm |
| For max. wall thickness | 2 mm |
available
-
Products
»
Enclosure and control panel accessories
»

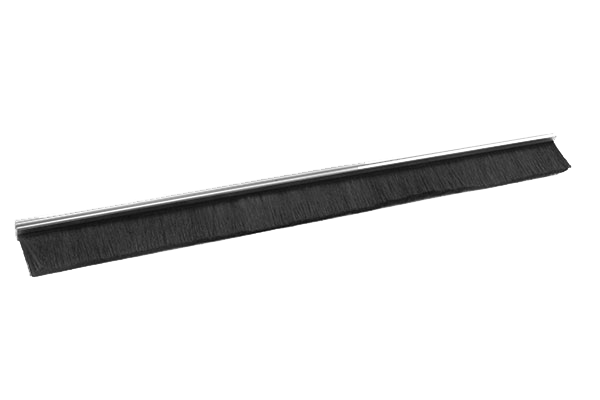

KDR-BES-U brush strip with clamp profile
KDR-BES-U brush strip with clamp profile
in custom length or sized for Rittal, nVent Hoffman, ELDON, Häwa, Schneider Electric & ETA enclosures
Cable pass-through brush strip for enclosure bases or individual cut-outs on cabinets, enclosures, panels, server racks or machine walls.
Due to the innovative and universal clamp strip the brush can also be assembled in a 90° angle, e.g. on bent sheet metal. Brush may be removed from the profile at any time and remounted using other mounting options.
The KDR-BES-U brush strip is adaptable to almost any enclosure or cabinet type on the market. The standard gland plates included in the enclosure delivery can be used for assembly. They do not have to be changed!
There are 4 different models available:
Order No. 58210.xxxx - for sheet/wall thickness 1.5 - 2 mm, brush height 35 mm
Order No. 58215.xxxx - for sheet/wall thickness 1.5 - 2 mm, brush height 50 mm
Order No. 58225.xxxx - for sheet/wall thickness 2.5 - 3 mm, brush height 35 mm
Order No. 58230.xxxx - for sheet/wall thickness 2.5 - 3 mm, brush height 50 mm
Defining your individual length:
X (mm) = sight size of enclosure base opening
Order numbers (ex.):
X = 999 mm --> Order N0. 58210.0999
Specifications
| Operating temperature | -20 C° to 90 C° |
| Material | Aluminium Brushes: Polyamide |
| Properties | silicone free, halogen free |
Advantages & benefits
- Quick assembly without tools
- Original enclosure gland plates can be used when mounting
- Three mounting types possible
- Brush may be remounted at any time using other mounting options
- Available in almost any length up to 1.500 mm
Product types & sizes
-
Custom
-
Rittal VX25
-
Rittal TS 8
-
Häwa H390/H395
-
Schneider Electric Spacial SF
-
nVent ELDON MCD/MCS/MKD/MKS
-
ETA E NUX
-
nVent Hoffman ProLine G2
-
Edge protection trim
KDR-BES-U-xxxx (1.5-2-50 mm)
| Part No. | 58215.xxxx |
| Package quantity | 1 |
| Brush height | 50 mm |
| For min. wall thickness | 1.5 mm |
| For max. wall thickness | 2 mm |
available
KDR-BES-U-xxxx (2.5-3-35 mm)
| Part No. | 58225.xxxx |
| Package quantity | 1 |
| Brush height | 35 mm |
| For min. wall thickness | 2.5 mm |
| For max. wall thickness | 3 mm |
available
KDR-BES-U-xxxx (2.5-3-50 mm)
| Part No. | 58230.xxxx |
| Package quantity | 1 |
| Brush height | 50 mm |
| For min. wall thickness | 2.5 mm |
| For max. wall thickness | 3 mm |
available
KDR-BES-U-VX25-600 (35 mm)
| Part No. | 58225.0452 |
| EAN | 4251269320385 |
| Package quantity | 1 |
| Length | 452 mm |
| Width | 16 mm |
| For enclosure width | 600 mm |
| Sight size of base opening | 452 mm |
| Brush height | 35 mm |
| Suitable for enclosure | Rittal VX25 |
KDR-BES-U-VX25-600 (50mm)
| Part No. | 58230.0452 |
| EAN | 4251269320996 |
| Package quantity | 1 |
| Length | 452 mm |
| Width | 16 mm |
| For enclosure width | 600 mm |
| Sight size of base opening | 452 mm |
| Brush height | 50 mm |
| Suitable for enclosure | Rittal VX25 |
KDRS-BES-U-VX25-600 (50mm)
| Part No. | 58030 |
| EAN | 4251269328909 |
| Package quantity | 1 |
| Length | 488 mm |
| Width | 16 mm |
| For enclosure width | 600 mm |
| Sight size of base opening | 452 mm |
| Brush height | 50 mm |
| Suitable for enclosure | Rittal VX25 |
KDR-BES-U-VX25-800 (35 mm)
| Part No. | 58225.0652 |
| EAN | 4251269320392 |
| Package quantity | 1 |
| Length | 652 mm |
| Width | 16 mm |
| For enclosure width | 800 mm |
| Sight size of base opening | 652 mm |
| Brush height | 35 mm |
| Suitable for enclosure | Rittal VX25 |
KDR-BES-U-VX25-800 (50mm)
| Part No. | 58230.0652 |
| EAN | 4251269321016 |
| Package quantity | 1 |
| Length | 652 mm |
| Width | 16 mm |
| For enclosure width | 800 mm |
| Sight size of base opening | 652 mm |
| Brush height | 50 mm |
| Suitable for enclosure | Rittal VX25 |
KDRS-BES-U-VX25-800 (50mm)
| Part No. | 58031 |
| EAN | 4251269328916 |
| Package quantity | 1 |
| Length | 688 mm |
| Width | 16 mm |
| For enclosure width | 800 mm |
| Sight size of base opening | 652 mm |
| Brush height | 50 mm |
| Suitable for enclosure | Rittal VX25 |
KDR-BES-U-VX25-1000 (35 mm)
| Part No. | 58225.0402 |
| EAN | 4251269320408 |
| Package quantity | 1 |
| Length | 402 mm |
| Width | 16 mm |
| For enclosure width | 1,000 mm |
| Sight size of base opening | 402 mm |
| Division bar | yes |
| Brush height | 35 mm |
| Suitable for enclosure | Rittal VX25 |
KDR-BES-U-VX25-1000 (50mm)
| Part No. | 58230.0402 |
| EAN | 4251269320989 |
| Package quantity | 1 |
| Length | 402 mm |
| Width | 16 mm |
| For enclosure width | 1,000 mm |
| Sight size of base opening | 402 mm |
| Division bar | yes |
| Brush height | 50 mm |
| Suitable for enclosure | Rittal VX25 |
KDRS-BES-U-VX25-1000 (50mm)
| Part No. | 58032 |
| EAN | 4251269328923 |
| Package quantity | 1 |
| Length | 438 mm |
| Width | 16 mm |
| For enclosure width | 1,000 mm |
| Sight size of base opening | 402 mm |
| Division bar | yes |
| Brush height | 50 mm |
| Suitable for enclosure | Rittal VX25 |
KDR-BES-U-VX25-1200 (35 mm)
| Part No. | 58225.0502 |
| EAN | 4251269320415 |
| Package quantity | 1 |
| Length | 502 mm |
| Width | 16 mm |
| For enclosure width | 1,200 mm |
| Sight size of base opening | 502 mm |
| Division bar | yes |
| Brush height | 35 mm |
| Suitable for enclosure | Rittal VX25 |
KDR-BES-U-VX25-1200 (50mm)
| Part No. | 58230.0502 |
| EAN | 4251269321009 |
| Package quantity | 1 |
| Length | 502 mm |
| Width | 16 mm |
| For enclosure width | 1,200 mm |
| Sight size of base opening | 502 mm |
| Division bar | yes |
| Brush height | 50 mm |
| Suitable for enclosure | Rittal VX25 |
KDRS-BES-U-VX25-1200 (50mm)
| Part No. | 58033 |
| EAN | 4251269328930 |
| Package quantity | 1 |
| Length | 538 mm |
| Width | 16 mm |
| For enclosure width | 1,200 mm |
| Sight size of base opening | 502 mm |
| Division bar | yes |
| Brush height | 50 mm |
| Suitable for enclosure | Rittal VX25 |
KDR-BES-U-TS8-600-0435
| Part No. | 58210.0435 |
| EAN | 4251269316524 |
| Package quantity | 1 |
| Length | 435 mm |
| Width | 16 mm |
| For enclosure width | 600 mm |
| Sight size of base opening | 435 mm |
| Brush height | 35 mm |
| Suitable for enclosure | Rittal TS 8 |
KDR-BES-U-TS8-800
| Part No. | 58210.0635 |
| EAN | 4251269316548 |
| Package quantity | 1 |
| Length | 635 mm |
| Width | 16 mm |
| For enclosure width | 800 mm |
| Sight size of base opening | 635 mm |
| Brush height | 35 mm |
| Suitable for enclosure | Rittal TS 8 |
KDR-BES-U-TS8-1000
| Part No. | 58210.0397 |
| EAN | 4251269316517 |
| Package quantity | 1 |
| Length | 397 mm |
| Width | 16 mm |
| For enclosure width | 1,000 mm |
| Sight size of base opening | 397 mm |
| Division bar | yes |
| Brush height | 35 mm |
| Suitable for enclosure | Rittal TS 8 |
KDR-BES-U-TS8-1000-0835
| Part No. | 58210.0835 |
| EAN | 4251269316555 |
| Package quantity | 1 |
| Length | 835 mm |
| Width | 16 mm |
| For enclosure width | 1,000 mm |
| Sight size of base opening | 835 mm |
| Division bar | no |
| Brush height | 35 mm |
| Suitable for enclosure | Rittal TS 8 |
KDR-BES-U-TS8-1200
| Part No. | 58210.0495 |
| EAN | 4251269316531 |
| Package quantity | 1 |
| Length | 495 mm |
| Width | 16 mm |
| For enclosure width | 1,200 mm |
| Sight size of base opening | 495 mm |
| Division bar | yes |
| Brush height | 35 mm |
| Suitable for enclosure | Rittal TS 8 |
KDR-BES-U-HW-600 (392/35 mm)
| Part No. | 58210.0392 |
| EAN | 4251269324697 |
| Package quantity | 1 |
| Length | 392 mm |
| For enclosure width | 600 mm |
| Sight size of base opening | 392 mm |
| Brush height | 35 mm |
available
KDR-BES-U-HW-600 (392/50 mm)
| Part No. | 58215.0392 |
| EAN | 4251269324734 |
| Package quantity | 1 |
| Length | 392 mm |
| For enclosure width | 600 mm |
| Sight size of base opening | 392 mm |
| Brush height | 50 mm |
available
KDR-BES-U-HW-600 (592/35 mm)
| Part No. | 58210.0592 |
| EAN | 4251269324703 |
| Package quantity | 1 |
| Length | 592 mm |
| For enclosure width | 600 mm |
| Sight size of base opening | 592 mm |
| Brush height | 35 mm |
available
KDR-BES-U-HW-600 (592/50 mm)
| Part No. | 58215.0592 |
| EAN | 4251269324741 |
| Package quantity | 1 |
| Length | 592 mm |
| For enclosure width | 600 mm |
| Sight size of base opening | 592 mm |
| Brush height | 50 mm |
available
KDR-BES-U-HW-600 (792/35 mm)
| Part No. | 58210.0792 |
| EAN | 4251269324710 |
| Package quantity | 1 |
| Length | 792 mm |
| For enclosure width | 600 mm |
| Sight size of base opening | 792 mm |
| Brush height | 35 mm |
available
KDR-BES-U-HW-600 (792/50 mm)
| Part No. | 58215.0792 |
| EAN | 4251269324758 |
| Package quantity | 1 |
| Length | 792 mm |
| For enclosure width | 600 mm |
| Sight size of base opening | 792 mm |
| Brush height | 50 mm |
available
KDR-BES-U-HW-600 (992/35 mm)
| Part No. | 58210.0992 |
| EAN | 4251269324727 |
| Package quantity | 1 |
| Length | 992 mm |
| For enclosure width | 600 mm |
| Sight size of base opening | 992 mm |
| Brush height | 35 mm |
available
KDR-BES-U-HW-600 (992/50 mm)
| Part No. | 58215.0992 |
| EAN | 4251269324765 |
| Package quantity | 1 |
| Length | 992 mm |
| For enclosure width | 600 mm |
| Sight size of base opening | 992 mm |
| Brush height | 50 mm |
available
KDR-BES-U-SSP-600 (35 mm)
| Part No. | 58210.0414 |
| EAN | 4251269324611 |
| Package quantity | 1 |
| Length | 414 mm |
| Width | 16 mm |
| For enclosure width | 600 mm |
| Sight size of base opening | 414 mm |
| Brush height | 35 mm |
| Suitable for enclosure | Schneider Electric Spacial SF |
KDR-BES-U-SSP-600 (50 mm)
| Part No. | 58215.0414 |
| EAN | 4251269324659 |
| Package quantity | 1 |
| Length | 414 mm |
| Width | 16 mm |
| For enclosure width | 600 mm |
| Sight size of base opening | 414 mm |
| Brush height | 50 mm |
| Suitable for enclosure | Schneider Electric Spacial SF |
KDR-BES-U-SSP-800 (35 mm)
| Part No. | 58210.0614 |
| EAN | 4251269324628 |
| Package quantity | 1 |
| Length | 614 mm |
| Width | 16 mm |
| For enclosure width | 800 mm |
| Sight size of base opening | 614 mm |
| Brush height | 35 mm |
| Suitable for enclosure | Schneider Electric Spacial SF |
KDR-BES-U-SSP-800 (50 mm)
| Part No. | 58215.0614 |
| EAN | 4251269324666 |
| Package quantity | 1 |
| Length | 614 mm |
| Width | 16 mm |
| For enclosure width | 800 mm |
| Sight size of base opening | 614 mm |
| Brush height | 50 mm |
| Suitable for enclosure | Schneider Electric Spacial SF |
KDR-BES-U-SSP-1000 (35 mm)
| Part No. | 58210.0814 |
| EAN | 4251269324635 |
| Package quantity | 1 |
| Length | 814 mm |
| Width | 16 mm |
| For enclosure width | 1,000 mm |
| Sight size of base opening | 814 mm |
| Brush height | 35 mm |
| Suitable for enclosure | Schneider Electric Spacial SF |
KDR-BES-U-SSP-1000 (50 mm)
| Part No. | 58215.0814 |
| EAN | 4251269324673 |
| Package quantity | 1 |
| Length | 814 mm |
| Width | 16 mm |
| For enclosure width | 1,000 mm |
| Sight size of base opening | 814 mm |
| Brush height | 50 mm |
| Suitable for enclosure | Schneider Electric Spacial SF |
KDR-BES-U-SSP-1200 (35 mm)
| Part No. | 58210.0477 |
| EAN | 4251269324642 |
| Package quantity | 1 |
| Length | 477 mm |
| Width | 16 mm |
| For enclosure width | 1,200 mm |
| Sight size of base opening | 477 mm |
| Brush height | 35 mm |
| Suitable for enclosure | Schneider Electric Spacial SF |
KDR-BES-U-SSP-1200 (50 mm)
| Part No. | 58215.0477 |
| EAN | 4251269324680 |
| Package quantity | 1 |
| Length | 477 mm |
| Width | 16 mm |
| For enclosure width | 1,200 mm |
| Sight size of base opening | 477 mm |
| Brush height | 50 mm |
| Suitable for enclosure | Schneider Electric Spacial SF |
KDR-BES-U-ELDON-600 (35 mm)
| Part No. | 58221.0435 |
| EAN | 4251269325229 |
| Package quantity | 1 |
| Length | 435 mm |
| Width | 16 mm |
| For enclosure width | 600 mm |
| Sight size of base opening | 435 mm |
| Brush height | 35 mm |
| Suitable for enclosure | nVent Eldon MCD/MCS/MKD/MKS |
KDR-BES-U-ELDON-600 (50 mm)
| Part No. | 58222.0435 |
| EAN | 4251269325267 |
| Package quantity | 1 |
| Length | 435 mm |
| Width | 16 mm |
| For enclosure width | 600 mm |
| Sight size of base opening | 435 mm |
| Brush height | 50 mm |
| Suitable for enclosure | nVent Eldon MCD/MCS/MKD/MKS |
KDR-BES-U-ELDON-800+1600 (35 mm)
| Part No. | 58221.0635 |
| EAN | 4251269325236 |
| Package quantity | 1 |
| Length | 635 mm |
| Width | 16 mm |
| For enclosure width | 800 mm |
| Sight size of base opening | 635 mm |
| Brush height | 35 mm |
| Suitable for enclosure | nVent Eldon MCD/MCS/MKD/MKS |
KDR-BES-U-ELDON-800+1600 (50 mm)
| Part No. | 58222.0635 |
| EAN | 4251269325274 |
| Package quantity | 1 |
| Length | 635 mm |
| Width | 16 mm |
| For enclosure width | 800 mm |
| Sight size of base opening | 635 mm |
| Brush height | 50 mm |
| Suitable for enclosure | nVent Eldon MCD/MCS/MKD/MKS |
KDR-BES-U-ELDON-1000 (35 mm)
| Part No. | 58221.0835 |
| EAN | 4251269325243 |
| Package quantity | 1 |
| Length | 835 mm |
| Width | 16 mm |
| For enclosure width | 1,000 mm |
| Sight size of base opening | 835 mm |
| Brush height | 35 mm |
| Suitable for enclosure | nVent Eldon MCD/MCS/MKD/MKS |
KDR-BES-U-ELDON-1000 (50 mm)
| Part No. | 58222.0835 |
| EAN | 4251269325281 |
| Package quantity | 1 |
| Length | 835 mm |
| Width | 16 mm |
| For enclosure width | 1,000 mm |
| Sight size of base opening | 835 mm |
| Brush height | 50 mm |
| Suitable for enclosure | nVent Eldon MCD/MCS/MKD/MKS |
KDR-BES-U-ELDON-1200 (35 mm)
| Part No. | 58221.0495 |
| EAN | 4251269325250 |
| Package quantity | 1 |
| Length | 495 mm |
| Width | 16 mm |
| For enclosure width | 1,200 mm |
| Sight size of base opening | 495 mm |
| Brush height | 35 mm |
| Suitable for enclosure | nVent Eldon MCD/MCS/MKD/MKS |
KDR-BES-U-ELDON-1200 (50 mm)
| Part No. | 58222.0495 |
| EAN | 4251269325298 |
| Package quantity | 1 |
| Length | 495 mm |
| Width | 16 mm |
| For enclosure width | 1,200 mm |
| Sight size of base opening | 495 mm |
| Brush height | 50 mm |
| Suitable for enclosure | nVent Eldon MCD/MCS/MKD/MKS |
KDR-BES-U-ETA-ENUX-600 (35 mm)
| Part No. | 58221.0363 |
| EAN | 4251269325304 |
| Package quantity | 1 |
| Length | 363 mm |
| Width | 16 mm |
| For enclosure width | 600 mm |
| Sight size of base opening | 363 mm |
| Brush height | 35 mm |
| Suitable for enclosure | ETA E NUX |
KDR-BES-U-ETA-ENUX-600 (50 mm)
| Part No. | 58222.0363 |
| EAN | 4251269325342 |
| Package quantity | 1 |
| Length | 363 mm |
| Width | 16 mm |
| For enclosure width | 600 mm |
| Sight size of base opening | 363 mm |
| Brush height | 50 mm |
| Suitable for enclosure | ETA E NUX |
KDR-BES-U-ETA-ENUX-800 (35 mm)
| Part No. | 58221.0563 |
| EAN | 4251269325311 |
| Package quantity | 1 |
| Length | 563 mm |
| Width | 16 mm |
| For enclosure width | 800 mm |
| Sight size of base opening | 563 mm |
| Brush height | 35 mm |
| Suitable for enclosure | ETA E NUX |
KDR-BES-U-ETA-ENUX-800 (50 mm)
| Part No. | 58222.0563 |
| EAN | 4251269325359 |
| Package quantity | 1 |
| Length | 563 mm |
| Width | 16 mm |
| For enclosure width | 800 mm |
| Sight size of base opening | 563 mm |
| Brush height | 50 mm |
| Suitable for enclosure | ETA E NUX |
KDR-BES-U-ETA-ENUX-1000 (35 mm)
| Part No. | 58221.0345 |
| EAN | 4251269325328 |
| Package quantity | 1 |
| Length | 345 mm |
| Width | 16 mm |
| For enclosure width | 1,000 mm |
| Sight size of base opening | 345 mm |
| Brush height | 35 mm |
| Suitable for enclosure | ETA E NUX |
KDR-BES-U-ETA-ENUX-1000 (50 mm)
| Part No. | 58222.0345 |
| EAN | 4251269325366 |
| Package quantity | 1 |
| Length | 345 mm |
| Width | 16 mm |
| For enclosure width | 1,000 mm |
| Sight size of base opening | 345 mm |
| Brush height | 50 mm |
| Suitable for enclosure | ETA E NUX |
KDR-BES-U-ETA-ENUX-1200 (35 mm)
| Part No. | 58221.0445 |
| EAN | 4251269325335 |
| Package quantity | 1 |
| Length | 445 mm |
| Width | 16 mm |
| For enclosure width | 1,200 mm |
| Sight size of base opening | 445 mm |
| Brush height | 35 mm |
| Suitable for enclosure | ETA E NUX |
KDR-BES-U-ETA-ENUX-1200 (50 mm)
| Part No. | 58222.0445 |
| EAN | 4251269325373 |
| Package quantity | 1 |
| Length | 445 mm |
| Width | 16 mm |
| For enclosure width | 1,200 mm |
| Sight size of base opening | 445 mm |
| Brush height | 50 mm |
| Suitable for enclosure | ETA E NUX |
KDR-BES-U-HG2-600
| Part No. | 58210.0362 |
| EAN | 4251269318207 |
| Package quantity | 1 |
| Length | 362 mm |
| For enclosure width | 600 mm |
| Sight size of base opening | 362 mm |
| Brush height | 35 mm |
| Suitable for enclosure | nVent Hoffman PROLINE G2 |
KDR-BES-U-HG2-800
| Part No. | 58210.0562 |
| EAN | 4251269318214 |
| Package quantity | 1 |
| Length | 562 mm |
| For enclosure width | 800 mm |
| Sight size of base opening | 562 mm |
| Brush height | 35 mm |
| Suitable for enclosure | nVent Hoffman PROLINE G2 |
KDR-BES-U-HG2-1000
| Part No. | 58210.0762 |
| EAN | 4251269318221 |
| Package quantity | 1 |
| Length | 762 mm |
| For enclosure width | 1,000 mm |
| Sight size of base opening | 762 mm |
| Brush height | 35 mm |
| Suitable for enclosure | nVent Hoffman PROLINE G2 |
Edge protection trim
| Part No. | 99152 |
| EAN | 4251269318238 |
| Package quantity | 1 |
| Length | 100,000 mm |
| Clamping range | 0 x 1 - 2 mm |
available
You haven't found anything suitable yet?
Try the ProductFinderAssembly video
Convince yourself of the simple and time-saving assembly of our products.
Watch the assembly video!
You might also be interested in the following products
AT-PP
Adapter grommet for KEL, for PushPull connectors, IP65
Adapter grommet based on KT cable grommets for PushPull connection technology.
MW 85/100
Wrenches SW 85 / SW 100
Wrenches SW 85 and SW 100 for M75 and M85 hexagonal plastic locknuts. Mounting tool for KEL-DPF.
KEL-U-BS
Split cable entry frame, IP54 / UL Type 12
Grommet based cable entry frames with IFPS fire penetration seals acc. to EN 45545-3 suitable for cut-outs of heavy industrial connectors. Available as single or double row version.
IFPS
Fire penetration seals, single
Fire penetration seals for certified icotek BS cable entry components, approved for use in railway technology.
EMC-KEL-DS
Split EMC cable entry frame, IP55
Conductive EMC cable entry frames for cut-outs of heavy industrial connectors. Protection class IP55.
