The KEL-DPR 24 cable entry plate is based on the proven KEL-DP 24, but has an integrated polypropylene reinforcement frame. With the KEL-DPR 24, up to 48 cables from 1 to 16.1 mm can be inserted in the smallest of spaces and sealed in accordance with IP65.
The KEL-DPR 24 cable entry fits standard cut-outs for 24-pin heavy-duty connectors.
Electrical and pneumatic lines can be assembled in a matter of seconds. The corresponding membrane is perforated and the cables are simply pushed through. The KEL-DPR also allows the cables to be routed through the backside of the plate. Perforated membranes can be sealed with ST-B Plugs.
A version with M4 threaded bushings is optionally available for screw assembly from the enclosure interior. Please ask us about your desired variant.
| IP rating (EN 60529) | IP54, IP55, IP64, IP65 |
| Flame class | UL94-V0, self-extinguishing |
| Operating temperature | -40 C° to 90 C° |
| Material | Elastomer Base frame: Polypropylene |
| Mounting options | Screw type mounting |
| Properties | halogen free, silicone free |
| Part No. | 46500 |
| EAN | 4251269335303 |
| Package quantity | 10 |
| Mounting options | Screw type mounting |
| For max. no. of cables | 12 |
| Max. cable diameter | 15 mm |
| Colour | black |
| Length | 147 mm |
| Width | 58 mm |
| Height | 10.6 mm |
| Mounting height | 9.1 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Clamping range | 12 x 1 - 15 mm |
| Part No. | 46501 |
| EAN | 4251269335310 |
| Package quantity | 10 |
| Mounting options | Screw type mounting |
| For max. no. of cables | 17 |
| Max. cable diameter | 12.6 mm |
| Colour | black |
| Length | 147 mm |
| Width | 58 mm |
| Height | 10.6 mm |
| Mounting height | 9.1 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Clamping range | 5 x 1 - 10.5 mm 12 x 1 - 12.6 mm |
| Part No. | 46502 |
| EAN | 4251269335327 |
| Package quantity | 10 |
| Mounting options | Screw type mounting |
| For max. no. of cables | 25 |
| Max. cable diameter | 12.1 mm |
| Colour | black |
| Length | 147 mm |
| Width | 58 mm |
| Height | 10.6 mm |
| Mounting height | 9.1 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Clamping range | 18 x 1 - 6.5 mm 7 x 1 - 12.1 mm |
| Part No. | 46503 |
| EAN | 4251269335334 |
| Package quantity | 10 |
| Mounting options | Screw type mounting |
| For max. no. of cables | 26 |
| Max. cable diameter | 16.1 mm |
| Colour | black |
| Length | 147 mm |
| Width | 58 mm |
| Height | 10.6 mm |
| Mounting height | 9.1 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Clamping range | 16 x 1 - 6.5 mm 4 x 1 - 12.1 mm 4 x 1 - 16.1 mm |
| Part No. | 46504 |
| EAN | 4251269335341 |
| Package quantity | 10 |
| Mounting options | Screw type mounting |
| For max. no. of cables | 48 |
| Max. cable diameter | 6.5 mm |
| Colour | black |
| Length | 147 mm |
| Width | 58 mm |
| Height | 10.6 mm |
| Mounting height | 9.1 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Clamping range | 48 x 1 - 6.5 mm |
Convince yourself of the simple and time-saving assembly of our products.
Watch the assembly video!
Always find the right size and the right cable grommets for your cable entry!
Plugs for sealing already pierced membranes of cable entry plates as well as for numerous cable grommets.
KEA is a multifunctional adapter for various cable entry systems. The adapter allows cables to be routed at a 90° angle and sealed with up to IP66.
Enclosure gland plate, suitable for screw mounting of KEL-U / KEL-FA / KEL-QUICK / KEL-JUMBO cable entry frames.

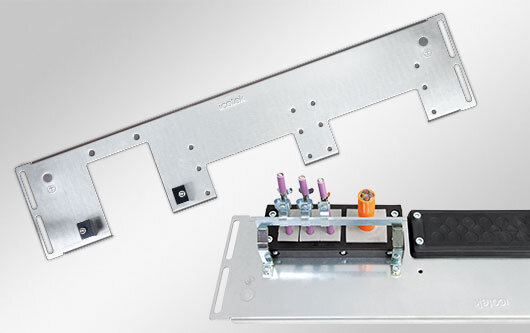

Modular gland plate system for mounting cable entry components in enclosure bases, roofs and divider panels. Suitable for enclosure base plate KDR-BMP.
