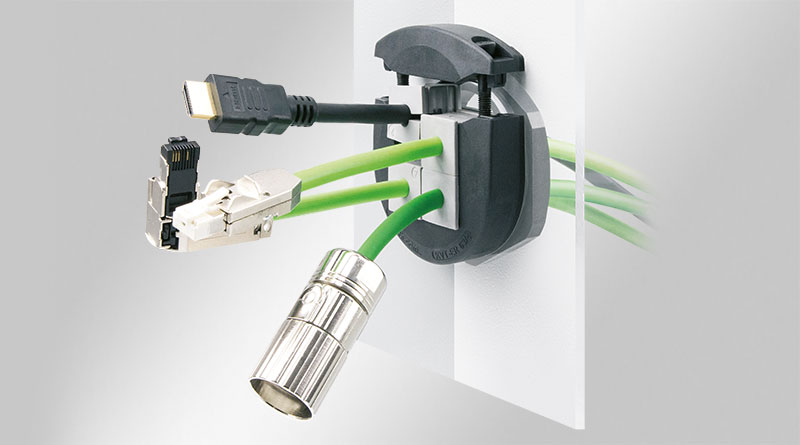

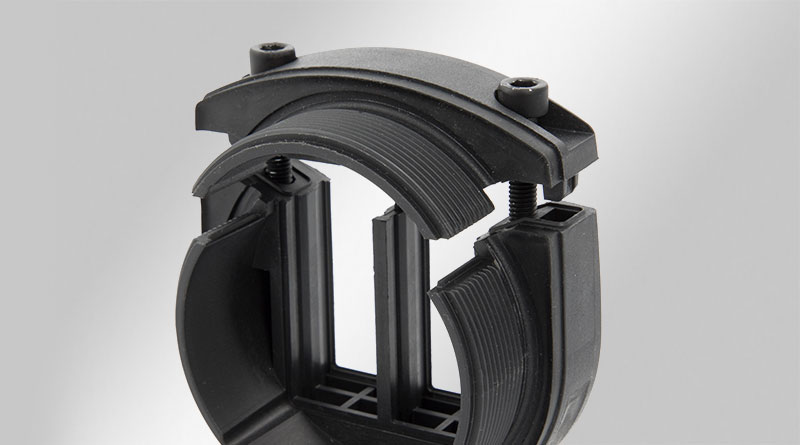

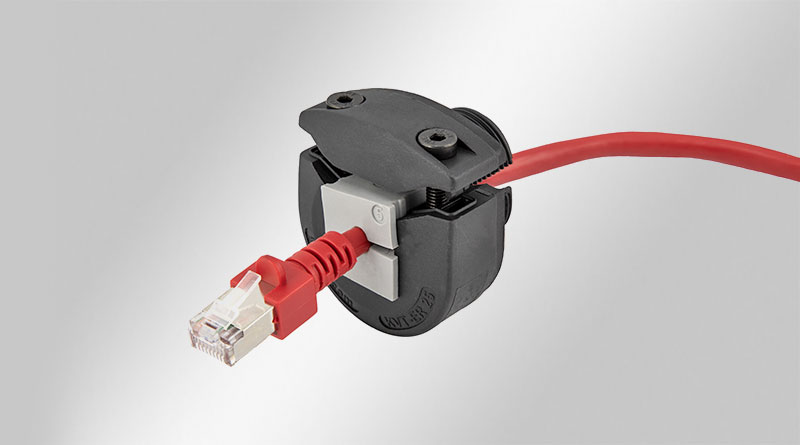

KVT-ER are split cable glands for routing and sealing cables with connectors, with diameters from 1 to 16 mm (KT 1 - 15) and 13 to 35 mm (KTG 13 - KT 34). But also electric, pneumatic or hydraulic lines without terminals or connectors as well as corrugated conduits can be easily routed (e.g. into control panels, enclosures or machinery), sealed and strain relieved acc. to EN 62444.
The KVT-ER sizes are based on metric standard cut-outs M25, M32, M50 and M63. Hexagonal locknuts are included in the shipment. For assembly, we recommend to tighten the cover lid screws with max. 2 Nm.

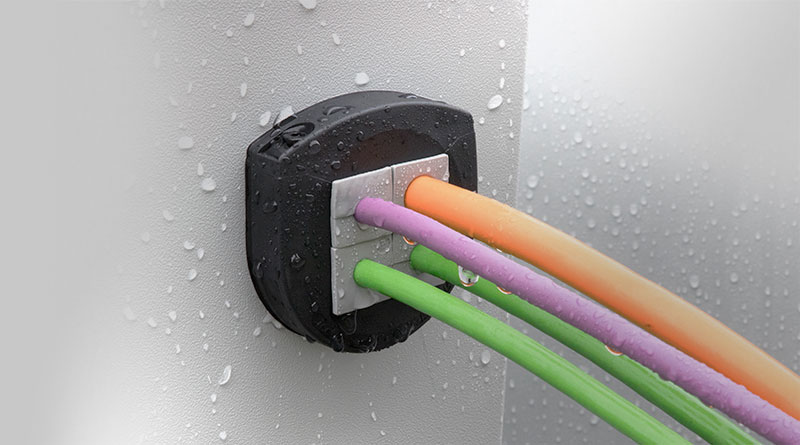

Due to the injected gasket and if single-hole grommets are used, the KVT-ER provides certified protection ratings IP66/IP68 and UL type 12 & 4X*.
| IP rating (EN 60529) | IP54, IP55, IP64, IP65, IP66, IP67, IP68 |
| UL Type (UL 50E) | UL Type 12, UL Type 4X* |
| Flame class | UL94-V0, self-extinguishing |
| Operating temperature | -40 C° to 110 C° |
| Material | Body: Polypropylene Integrated sealing lip: Elastomer |
| Mounting options | Fasten with locknut |
| Properties | halogen free, silicone free |
| Part No. | 45450 |
| EAN | 4251269319716 |
| Package quantity | 10 |
| Mounting options | Fasten with locknut |
| For max. no. of cables | 1 |
| Max. cable diameter | 15 mm |
| Colour | black |
| External diameter | 46 mm |
| Mounting height | 20 mm |
| Cut-out size, metric | M25 |
| Cut-out size, round | 25.3 mm |
| Thread | M25 × 1,5 |
| Thread length | 18 mm |
| Suitable for grommets | 1 x KT small |
| Part No. | 45452 |
| EAN | 4251269318900 |
| Package quantity | 10 |
| Mounting options | Fasten with locknut |
| For max. no. of cables | 1 |
| Max. cable diameter | 16 mm |
| Colour | black |
| External diameter | 46 mm |
| Mounting height | 20 mm |
| Cut-out size, metric | M32 |
| Cut-out size, round | 32.3 mm |
| Thread | M32 × 1,5 |
| Thread length | 18 mm |
| Suitable for grommets | 1 x KT small |
| Part No. | 45454 |
| EAN | 4251269318917 |
| Package quantity | 5 |
| Mounting options | Fasten with locknut |
| For max. no. of cables | 2 |
| Max. cable diameter | 16 mm |
| Colour | black |
| External diameter | 63 mm |
| Mounting height | 20 mm |
| Cut-out size, metric | M50 |
| Cut-out size, round | 50.4 mm |
| Thread | M50 × 1,5 |
| Thread length | 20.5 mm |
| Suitable for grommets | 2 x KT small |
| Part No. | 45456 |
| EAN | 4251269318931 |
| Package quantity | 5 |
| Mounting options | Fasten with locknut |
| For max. no. of cables | 4 |
| Max. cable diameter | 16 mm |
| Colour | black |
| External diameter | 75 mm |
| Mounting height | 20 mm |
| Cut-out size, metric | M63 |
| Cut-out size, round | 63.4 mm |
| Thread | M63 × 1,5 |
| Thread length | 20.5 mm |
| Suitable for grommets | 4 x KT small |
| Part No. | 45455 |
| EAN | 4251269318924 |
| Package quantity | 5 |
| Mounting options | Fasten with locknut |
| For max. no. of cables | 1 |
| Max. cable diameter | 35 mm |
| Colour | black |
| External diameter | 75 mm |
| Mounting height | 20 mm |
| Cut-out size, metric | M63 |
| Cut-out size, round | 63.4 mm |
| Thread | M63 × 1,5 |
| Thread length | 20.5 mm |
| Suitable for grommets | 1 x KT large |
