|Mounting height||10 mm|
|External diameter||46 mm|
|Cut-out size, metric||M32|
|Thread||M32 × 1,5|
|Thread length||20 mm|
|For min. wall thickness||1 mm|
|For max. wall thickness||2.5 mm|

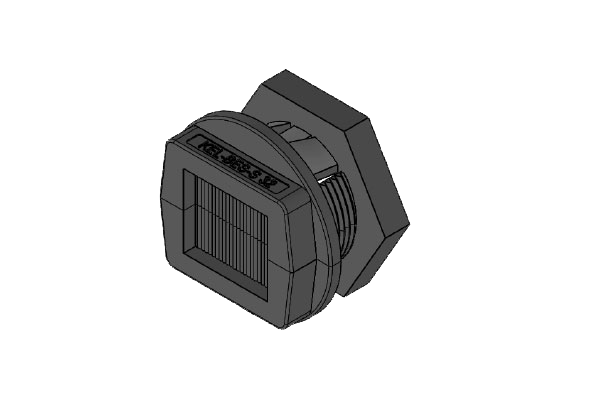

For round metric cut-outs M32/M50 icotek offers the split cable gland with brush strips KEL-BES-S round. It can be either directly snapped into the cut-out or screwed with a locknut, which is included in the shipment.
Split cable glands with brush strips KEL-BES-S are suited for routing cables into server racks, control panels and electrical enclosures. Due to the split frame the KEL-BES-S can also be subsequently installed around the routed cables.
Note: Snap-in mounting possible if wall thickness is 1 - 2.5 mm. For wall thickness < 1 mm and > 2.5 mm, a locknut must be used.
|Flame class||UL94-V0, self-extinguishing|
|Operating temperature||-20 C° to 90 C°|
|Properties||silicone free, halogen free|
|Mounting options||Screw type mounting,Riveting|
