BPK 24
| Part No. | 42024 |
| EAN | 4251269307515 |
| Package quantity | 10 |
| Mounting options | Screw type mounting |
| Length | 148 mm |
| Width | 53 mm |
| Height | 10.3 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
-
Products
»
Enclosure and control panel accessories
»
BPK plastic blank plates
BPK plastic blank plates
for screw assembly / IP66 / UL Type 12/4X*
BPK Blank plates seal cut-outs for standard 10-pole / 16-pole / 24-pole industrial connectors with protection rating up to IP66 / UL type 12/4X*.
Blank plates are mounted via screws.
* 4X for indoor use only
Specifications
| IP rating (EN 60529) | IP54, IP55, IP64, IP65, IP66 |
| UL Type (UL 50E) | UL Type 12, UL Type 4X* |
| Flame class | UL94-V0, self-extinguishing |
| Operating temperature | -30 C° to 110 C° |
| Material | Polypropylene Integrated sealing lip: Elastomer |
| Mounting options | Screw type mounting |
| Properties | silicone free, halogen free |
Advantages & benefits
- Integrated gasket
Product types & sizes
BPK 16
| Part No. | 42016 |
| EAN | 4251269307478 |
| Package quantity | 10 |
| Mounting options | Screw type mounting |
| Length | 121 mm |
| Width | 53 mm |
| Height | 10.3 mm |
| Cut-out size | 86 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
BPK 10
| Part No. | 42015 |
| EAN | 4251269307454 |
| Package quantity | 10 |
| Mounting options | Screw type mounting |
| Length | 101 mm |
| Width | 53 mm |
| Height | 10 mm |
| Cut-out size | 65 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
BPK-B
| Part No. | 42010 |
| EAN | 4251269307393 |
| Package quantity | 10 |
| Mounting options | Screw type mounting |
| Length | 76 mm |
| Width | 53 mm |
| Height | 10.3 mm |
| Cut-out size | 46 × 46 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
BPK-JFX
| Part No. | 42620 |
| EAN | 4251269309045 |
| Package quantity | 5 |
| Mounting options | Screw type mounting |
| Length | 88 mm |
| Width | 88 mm |
| Height | 9 mm |
| Cut-out size | JUMBO flex |
| No. of screw holes | 4 |
| Diam. of screw holes | 6.9 mm |
You haven't found anything suitable yet?
Try the ProductFinderSuitable for:
KDR-VX25
Enclosure gland plate, IP54
Enclosure gland plate, suitable for screw mounting of KEL-U / KEL-FA / KEL-QUICK / KEL-DPR / KEL-JUMBO cable entry frames.

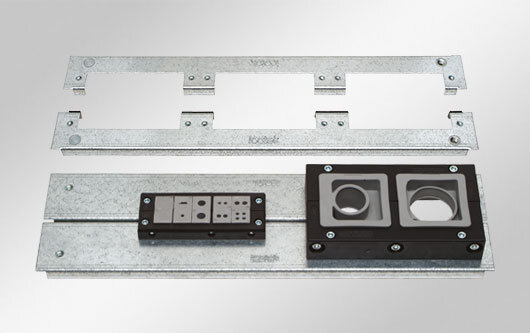

KDR 2
Split enclosure gland plate, IP54
Split enclosure gland plate suitable for mounting centrally split KEL /KEL-JUMBO cable entry frames.
MP
Modular gland plates, IP54
Modular gland plate system for mounting cable entry components in enclosure bases, roofs and divider panels. Suitable for enclosure base plate KDR-BMP.

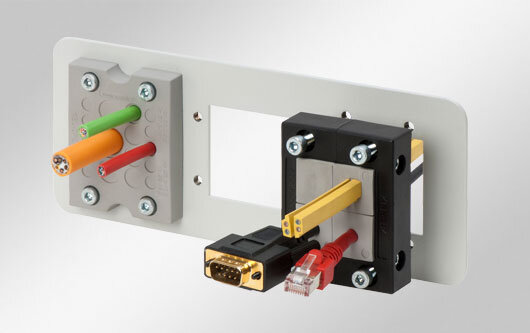

FP
Flange plates, IP54 - IP66
Flange plates for mounting cable entry components on compact enclosures, terminal boxes or bus enclosures by Rittal and Fibox.
You might also be interested in the following products

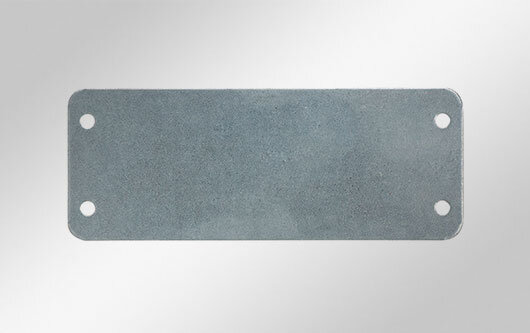

BPM
Blank plates, metal / stainless steel, IP66
Blank plates to close and seal unused cut-outs in enclosure or machine walls.

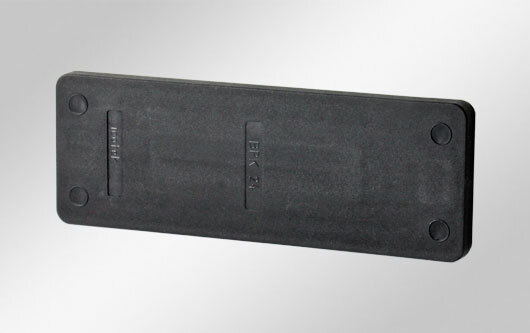

BPK-RF
Blank plates, plastic, pluggable, IP54 / UL Type 12
Blank plates to close and seal unused cut-outs in enclosure or machine walls.

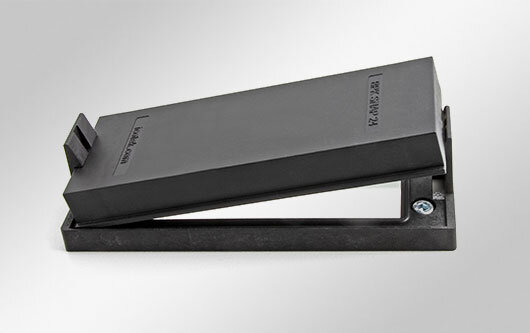

BPK-SNAP
